WL750p

WL750P(A04-05) Three-point rear receptacle Diagram

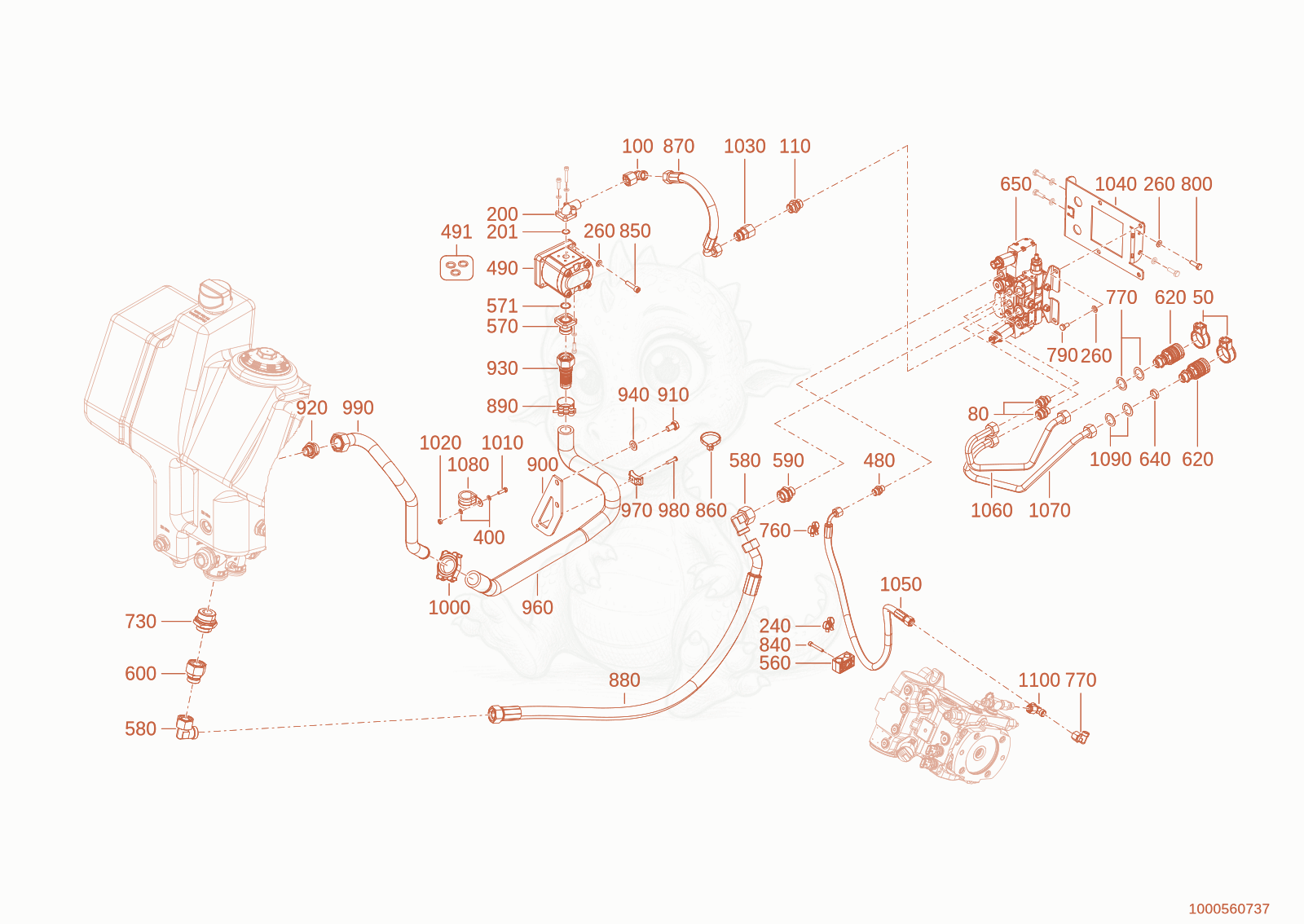

Exploded parts diagram of the Three-point rear receptacle of a Wacker Neuson WL750P(A04-05), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 501000428101Not stocked
    dust cap×2
  • 801000100718
    $9.88
    GE15-LR3/8" E A3C - 1000100718×2
  • 1001000015512Not stocked
    screw joint×1
  • 1101000015494Not stocked
    screw joint×1
  • 2001000404335Not stocked
    screw joint×1
  • 2011000015712
    $4.21
    -RING - 1000015712×1
  • 2401000399434Not stocked
    mounting×2
  • 2601000015431Not stocked
    washer×12
  • 4001000015430Not stocked
    u-washer×3
  • 4801000015490Not stocked
    screw joint×1
  • 4901000488802Not stocked
    gear pump×1
  • 4911000161923
    $67.14
    SEAL KIT GEAR PUMP - 1000161923×1
  • 5601000479160Not stocked
    clamp×1
  • 5701000000549
    $75.20
    SCREW JOINT BFG22-L LK40 - 1000000549×1
  • 5711000090263
    $2.23
    O-RING - 1000090263×1
  • 5801000020261
    $17.85
    EW22LOMD - 1000020261×2
  • 5901000226434
    $11.57
    GES22L/R 1/2" GRAD.EINSCHR.ST. - 1000226434×1
  • 6001000103445
    $27.29
    RED28/22LOMDA3C - 1000103445×1
  • 6201000430477Not stocked
    plug coupling×2
  • 6401000527041Not stocked
    sleeve×1
  • 6501000527321Not stocked
    control valve×1
  • 7301000085107
    $42.45
    GE28LR11/4EDOMDA3C - 1000085107×1
  • 7601000294015Not stocked
    fixing bracket×1
  • 7701000015510Not stocked
    screw joint×1
  • 7901000019136Not stocked
    hex screw×4
  • 8001000015343Not stocked
    hex screw×4
  • 8401000085458
    $0.73
    Screw M6x40-8.8 A2C DIN912 - 1000085458×1
  • 8501000048250Not stocked
    cheese head screw×4
  • 8601000193759
    $0.36
    cable strap - 1000193759×1
  • 8701000336107Not stocked
    Hose×1
  • 8801000551029Not stocked
    Hose×1
  • 8901000153926
    $5.94
    hose clamp - 1000153926×1
  • 9001000550706Not stocked
    bracket×1
  • 9101000085417
    $1.06
    hex screw - 1000085417×2
  • 9201000082990
    $26.72
    GE28LR3/4OROMDA3C - 1000082990×1
  • 9301000336487Not stocked
    hose fitting×1
  • 9401000049219Not stocked
    washer×2
  • 9601000550705Not stocked
    preshaped tube×1
  • 9701000282739
    $2.12
    sockets - 1000282739×1
  • 9801000356352
    $2.30
    Rivet - 1000356352×1
  • 9901000550701Not stocked
    hydraulic pipe×1
  • 10001000453239
    $11.23
    Clamp - 1000453239×1
  • 10101000018400Not stocked
    hex screw×1
  • 10201000015405Not stocked
    hexagon nut×1
  • 10301000226445
    $27.49
    KOVO 15L/15L - 1000226445×1
  • 10401000550076Not stocked
    bracket valve×1
  • 10501000551444Not stocked
    Hose×1
  • 10601000551054Not stocked
    hydraulic pipe×1
  • 10611000050505Not stocked
    union nut×1
  • 10621000543584Not stocked
    olive×1
  • 10631000543591Not stocked
    seal ring×1
  • 10641000543596Not stocked
    o-ring×1
  • 10701000551055Not stocked
    hydraulic pipe×1
  • 10711000050505Not stocked
    union nut×1
  • 10721000543584Not stocked
    olive×1
  • 10731000543591Not stocked
    seal ring×1
  • 10741000543596Not stocked
    o-ring×1
  • 10801000272660
    $5.41
    pipe clamp RSGU 1.30/20 - 1000272660×1
  • 10901000558523Not stocked
    u-washer×4
  • 11001000085057
    $13.12
    ET10LOMDA3C - 1000085057×1
