WL750p

WL750P(A04-05) wiring harness Diagram

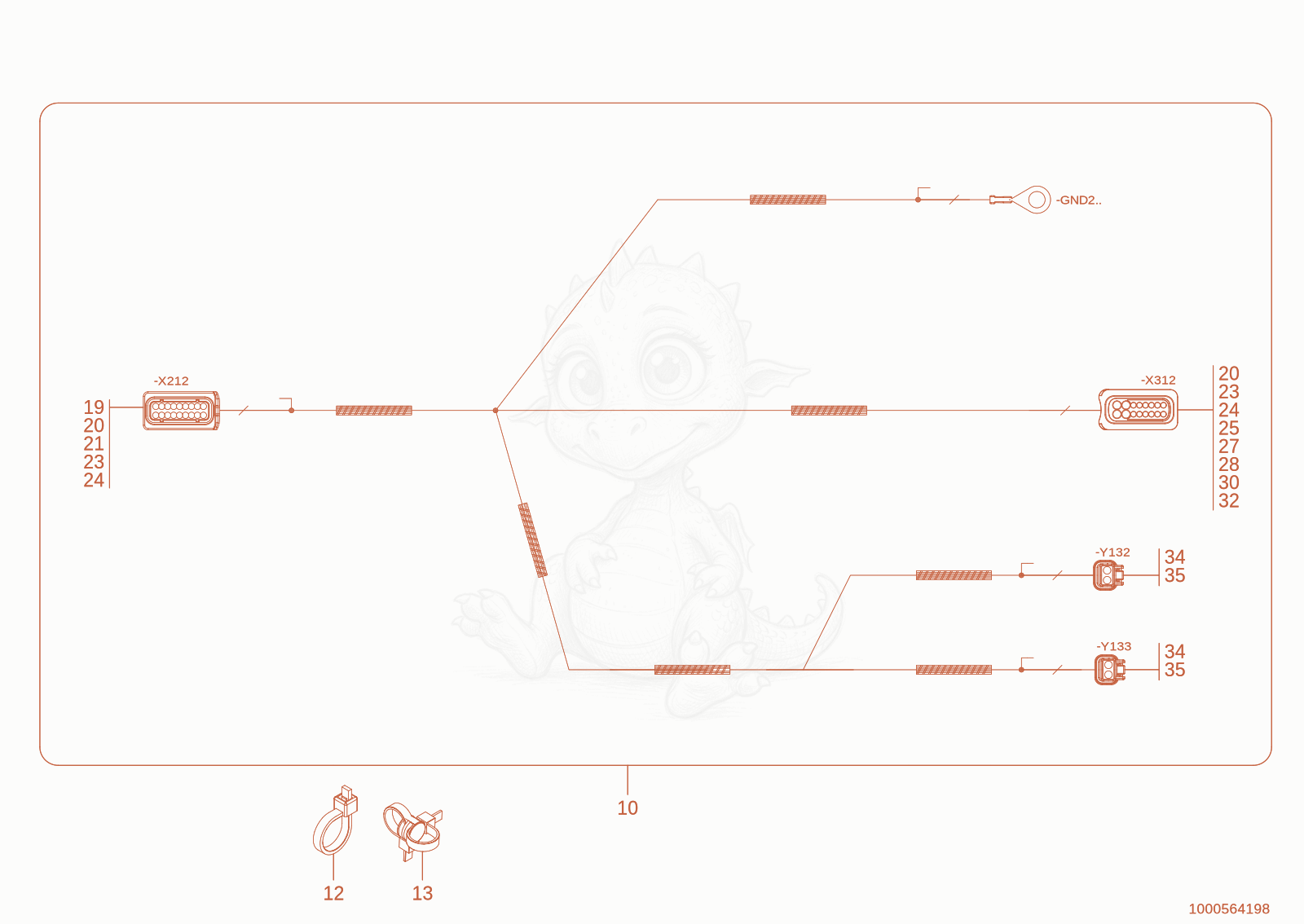

Exploded parts diagram of the wiring harness of a Wacker Neuson WL750P(A04-05), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000556867Not stocked
    wiring harness×1
  • 121000193828
    $0.89
    cable strap - 1000193828×2
  • 131000399434Not stocked
    mounting×1
  • 191000474177Not stocked
    plug housing×1
  • 201000104740
    $1.41
    lock plug - 1000104740×1
  • 211000260164
    $1.38
    Tube - 1000260164×1
  • 231000260162
    $0.42
    seal - 1000260162×1
  • 241000104738
    $1.51
    seal - 1000104738×1
  • 251000474180
    $24.20
    plugin housing 16-pol. Socket HDSCS-A - 1000474180×1
  • 271000171552
    $1.32
    TUBE - 1000171552×1
  • 281000442912
    $1.37
    pin contact - 1000442912×1
  • 301000128773
    $0.32
    Plug - 1000128773×1
  • 321000246747
    $1.41
    seal - 1000246747×1
  • 341000359612Not stocked
    plug connection×1
  • 351000428217
    $6.88
    Pin Housing - 1000428217×1
