E 1250S Hydronic Heater, Standard, LP/NG

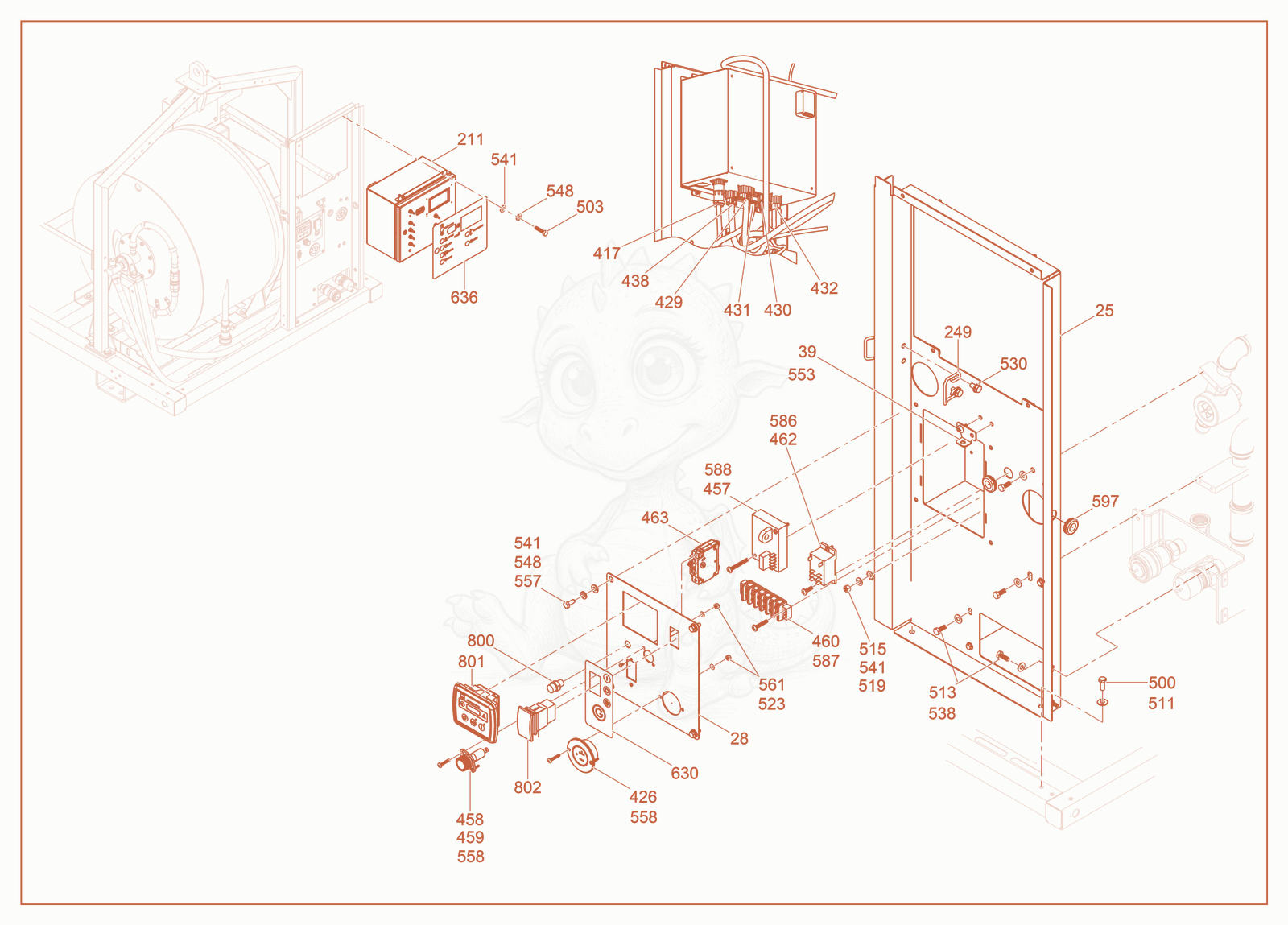

Despiece de Control Panel Mount · E1250S
- 255200016638No la vendemosControl box mounting panel×1
- 285200016662No la vendemosCover×1
- 395200016255No la vendemosBracket×1
- 2115200012331No la vendemosControl panel×1
- LATCH STRIKE,WIRE - 5000158982×1
- 4175200014433No la vendemosPower cable×1
- 4265200016715No la vendemosReceptacle×1
- 4295200014426No la vendemosWiring harness×1
- 4305200014427No la vendemosWiring harness×1
- 4315200014428No la vendemosWiring harness×1
- 4325200014429No la vendemosWiring harness×1
- 4385200019243No la vendemosCable cpl., burner×1
- 4575200015410No la vendemosSensor×1
- 4585200015550No la vendemosFuse holder×1
- 4595200023431No la vendemosFuse×1
- TERMINAL-BLOCK,6 POLE - 5000176460×1
- 4625200022711No la vendemosPower relay×1
- 4635200015679No la vendemosCircuit breaker×1
- SCREW M8X20 HX.HD.,SST - 5000158897×2
- SCREW M6 X 25 HX.HD. - 5000011469×4
- WASHER-B8.4 FLAT,2THK,20 OD - 5000160298×2
- SCREW M6 X 16 HX.HD. - 5000014663×8
- 5155200015001No la vendemosHexagon nut×1
- 5195000189214No la vendemosWasher×1
- 5235000010623No la vendemosFlat washer×3
- SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×2
- 5385000192389No la vendemosFlat washer×12
- 5415000192393No la vendemosFlat washer×4
- 5485000173965No la vendemosLock washer×8
- 5535200014947No la vendemosScrew×2
- 5575000173985No la vendemosHexagonal head cap screw×4
- SCREW M3 X 16 PHIL HD - 5000110485×4
- NUT-LOCK M3 HEX - 5000086710×3
- SCREW M4 X 12 - 5000088174×2
- SCREW M4 X 20 PHIL HD - 5000110951×1
- SCREW M4 X 30 PHIL HD - 5000115527×2
- 5975000168769No la vendemosGrommet×2
- 6305200016668No la vendemosLabel×1
- 6365200012200No la vendemosLabel-control panel×1
- Fuse - 5100048605×1
- 8015100015697No la vendemosControl box cpl.×1
- 8025100015699No la vendemosIgnition switch×1
