E 1250S Hydronic Heater, Standard, LP/NG

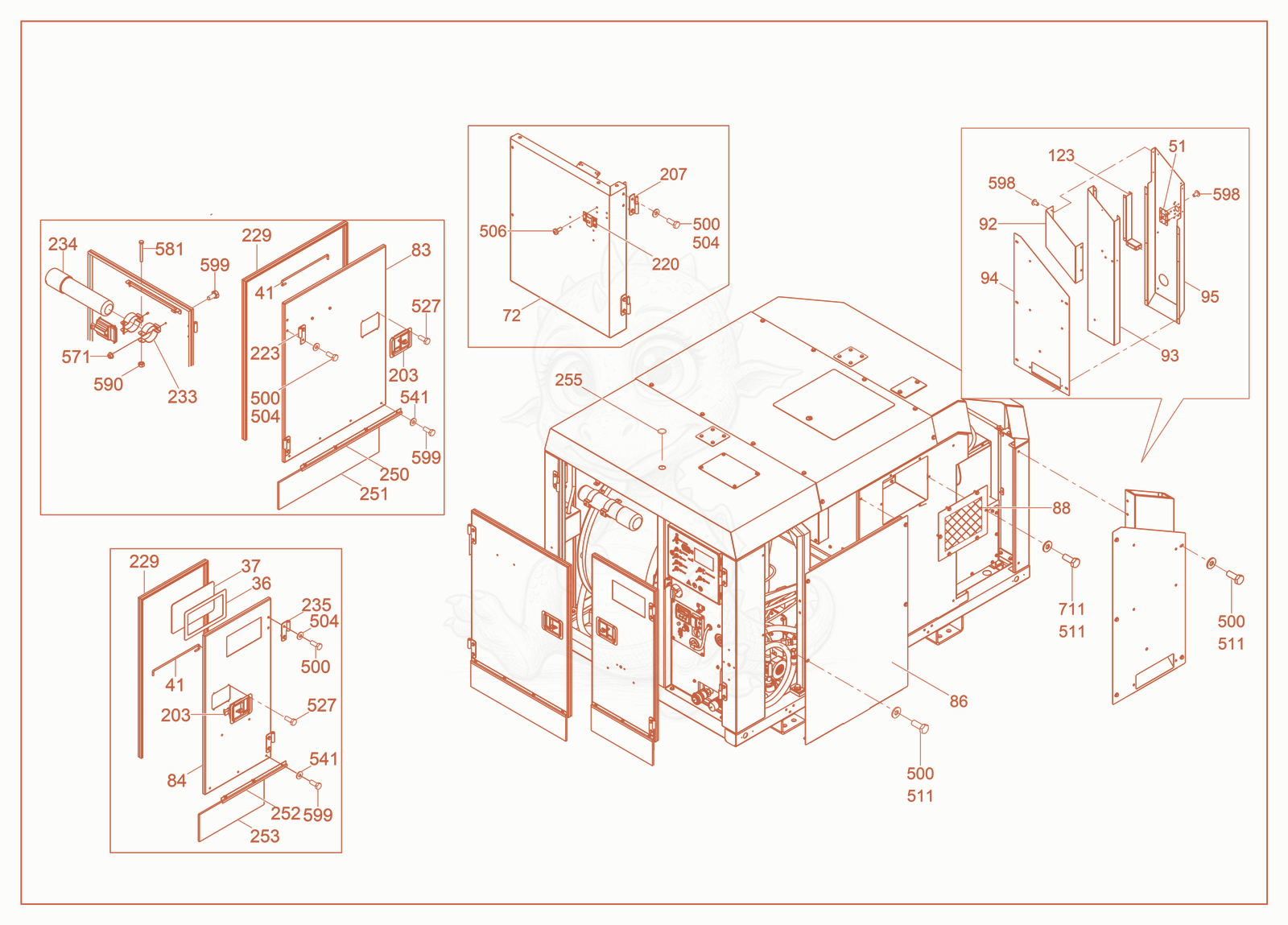

Despiece de Doors cpl./Panel cpl. · E1250S
- 365200010911No la vendemosGasket×1
- 375200010912No la vendemosWindow×1
- 415200016246No la vendemosRod×2
- 515200023511No la vendemosMounting plate×1
- 725200010838No la vendemosFront right side panel×1
- 835200010890No la vendemosLeft rear door×1
- 845200010893No la vendemosRight rear door×1
- 865200010901No la vendemosLeft side panel×1
- 885200016125No la vendemosAir duct×1
- 925200016133No la vendemosHeatshield×1
- 935200016134No la vendemosPanel×1
- 945200016135No la vendemosPanel×1
- 955200016135No la vendemosPanel×1
- 1235200025141No la vendemosExhaust baffle×1
- LATCH-SLAM DOOR - 5000158862×8
- 2075200014959No la vendemosHinge pin×2
- 2205000168402No la vendemosHolder-door×1
- 2235200014960No la vendemosHinge×2
- 2295200012962No la vendemosSeal Kit×2
- CLAMP-HANGER, 2-7/8 - 5200000960×2
- HOLDER-MANUAL, TUBE - 5200000929×1
- 2355200014958No la vendemosHinge×2
- 2505200017411No la vendemosHolder-Brush Road Side, E1250×1
- 2515200017412No la vendemosBrush×1
- 2525200017413No la vendemosHolder-Brush Curb Side, E1250×1
- 2535200017414No la vendemosBrush×1
- 2555200022889No la vendemosPlug×1
- 4015200018865No la vendemosStrobe light×1
- SCREW M8X20 HX.HD.,SST - 5000158897×23
- WASHER M8 FLAT,SST - 5000158899×12
- SCREW M5X12-4.8 PAN HD ZP - 5000154515×8
- WASHER-B8.4 FLAT,2THK,20 OD - 5000160298×18
- RIVET .156 X .415 LG.,SST - 5000176346×8
- 5415000192393No la vendemosFlat washer×7
- NUT-M6-HEX.FLG.HD-8-ZNC-3M.2353 - 5000164067×2
- SCREW M6 X 60 HX.HD. - 5200000928×2
- NUT-LOCK M6 HEX. - 5000010368×2
- 5985000167696No la vendemosRivet×29
- SCREW M6 X 12 HX.HD. - 5000012357×9
- SCREW M8 X 12 HX.HD. - 5000012360×6
