E 1250S Hydronic Heater, Standard, LP/NG

Despiece de Engine Components (3) · E1250S

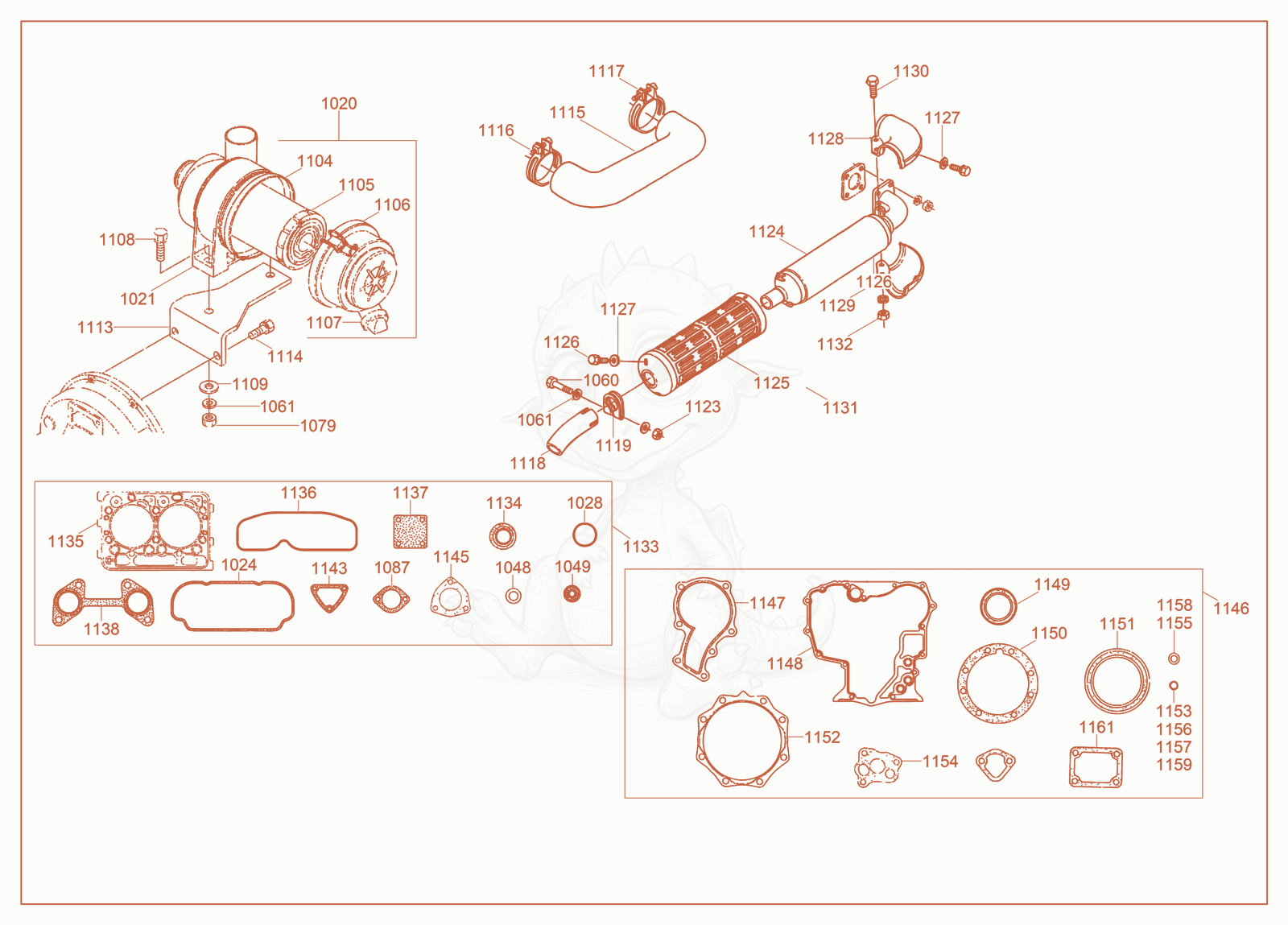

Despiece del Engine Components (3) de una máquina Wacker Neuson E1250S, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 10205100015690No la vendemos
    Air cleaner×1
  • 10215100015691No la vendemos
    Air cleaner mount×1
  • 10241000278584
    $26.48
    Seal - 1000278584×1
  • 10285100024213No la vendemos
    O-ring×1
  • 10481000019029No la vendemos
    seal ring×2
  • 10495200018121No la vendemos
    Gasket×2
  • 10605100024224No la vendemos
    Bolt×1
  • 10615100024225No la vendemos
    Washer×3
  • 10791000085257
    $3.17
    HEXAGON NUT - 1000085257×2
  • 10875000176755No la vendemos
    Thermostat gasket×1
  • 11045100024252No la vendemos
    Air filter housing×1
  • 11055100024253No la vendemos
    Air cleaner element×1
  • 11065100024254No la vendemos
    Air cleaner cover×1
  • 11075100024255No la vendemos
    Valve×1
  • 11085100024256No la vendemos
    Bolt×2
  • 11095100024257No la vendemos
    Washer×2
  • 11135100024259No la vendemos
    Air cleaner bracket×1
  • 11141000085230
    $11.06
    HEX SCREW - 1000085230×2
  • 11155100024260No la vendemos
    Hose, inlet×1
  • 11165200007363
    $7.68
    CLAMP-HOSE - 5200007363×1
  • 11171000069716
    $5.07
    HOSE CLAMP - 1000069716×1
  • 11181000003538
    $116.42
    pipe line - 1000003538×1
  • 11191000068458
    $16.75
    tension clamp - 1000068458×1
  • 11231000069148
    $1.06
    HEXAGON NUT - 1000069148×1
  • 11245100024261No la vendemos
    Muffler×1
  • 11251000003541
    $86.10
    cover - 1000003541×1
  • 11265100024262No la vendemos
    Hexagonal head cap screw×4
  • 11275100024263No la vendemos
    Washer×4
  • 11281000003539
    $95.85
    cover - 1000003539×1
  • 11295100024264No la vendemos
    Adapter plate×1
  • 11305100024265No la vendemos
    Flange bolt×2
  • 11315100024266No la vendemos
    Lock washer×2
  • 11325100024267No la vendemos
    Hexagonal nut×2
  • 11331000279812
    $203.05
    SEAL KIT - 1000279812×1
  • 11341000324947No la vendemos
    seal ring×4
  • 11355100024268No la vendemos
    Gasket×1
  • 11365100024269No la vendemos
    Intake manifold gasket×1
  • 11375100024270No la vendemos
    Exhaust gasket×1
  • 11381000283116
    $13.43
    Seal - 1000283116×1
  • 11435200018117No la vendemos
    Water flange gasket×1
  • 11455100024271No la vendemos
    Gasket×1
  • 11465100024272No la vendemos
    Gasket Kit×1
  • 11475200018115No la vendemos
    Water pump gasket×1
  • 11485100024273No la vendemos
    Gasket×1
  • 11495100024274No la vendemos
    Oil seal×1
  • 11505100024275No la vendemos
    Gasket×1
  • 11515100024276No la vendemos
    Oil seal×1
  • 11521000003698
    $9.41
    engine gasket - 1000003698×1
  • 11531000324700No la vendemos
    O-Ring×1
  • 11541000324675No la vendemos
    engine gasket×1
  • 11551000038599
    $0.79
    Seal - 1000038599×1
  • 11561000069738No la vendemos
    O-Ring×1
  • 11575100024277No la vendemos
    O-ring×1
  • 11581000278587
    $3.50
    Sealing ring - 1000278587×1
  • 11595100024278No la vendemos
    O-ring×1
  • 11611000003702
    $1.72
    engine gasket - 1000003702×1
