ET35

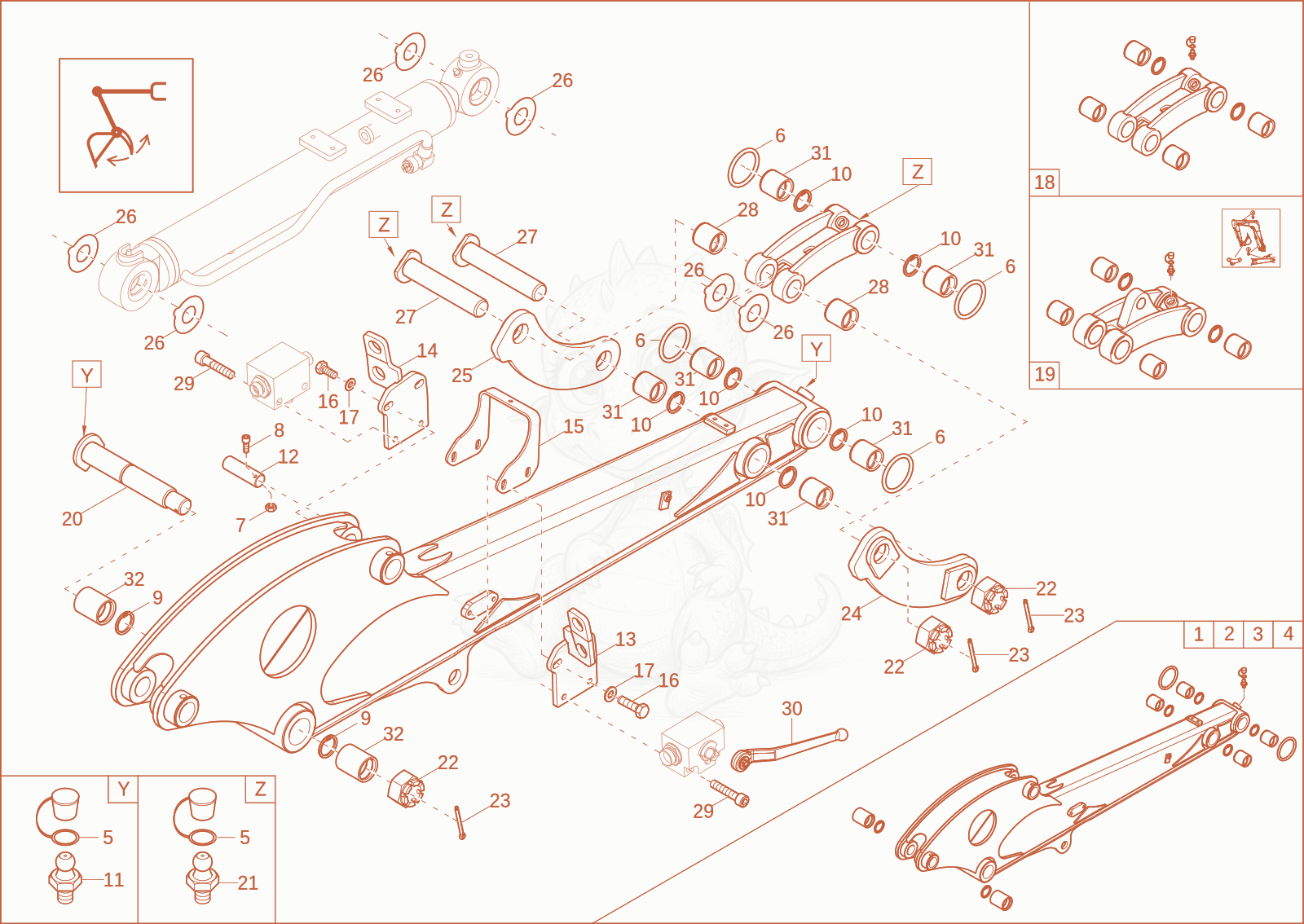

Despiece de DIPPER ARM (OPTION) · ET35
- 11000400925No la vendemosPRE-ASSEMBLED DIPPER ARM×1
- 21000400926No la vendemosPRE-ASSEMBLED DIPPER ARM×1
- 31000487833No la vendemosPRE-ASSEMBLED DIPPER ARM×1
- 41000487835No la vendemosPRE-ASSEMBLED DIPPER ARM×1
- 51000015480No la vendemoscap grease nipple×5
- 61000374004No la vendemoso-ring×4
- nut M10-8 A2C-DIN985 - 1000015408×1
- 81000047786No la vendemoshex screw×1
- lock ring - 1000095015×2
- 101000021601No la vendemoslock ring×6
- 111000015476No la vendemosgrease nipple×2
- 121000368543No la vendemospin×1
- 131000372306No la vendemosbracket hose×1
- 141000372305No la vendemosbracket hose×1
- HOLDER - 1000269206×1
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
- washer 10,5 A2C DIN125 - 1000015432×4
- 181000400930No la vendemosPRE-ASSEMBLED CONNECTING LINK×1
- 191000401011No la vendemosPRE-ASSEMBLED CONNECTING LINK×1
- Pin 1000294590×1
- 211000015475No la vendemosgrease nipple×3
- DIN935-M36-8-A2C - 1000015417×3
- COTTERPIN - 1000021603×3
- 241000395535No la vendemospivot plate×1
- 251000395536No la vendemospivot plate×1
- 261000370167No la vendemosshim×6
- Pin 1000296593×2
- 281000015607No la vendemossteel bushing×2
- CHEESE HEAD SCREW - 1000048369×4
- handle - 1000172515×1
- 311000015608No la vendemossteel bushing×6
- 321000019754No la vendemossteel bushing×2
