ET35

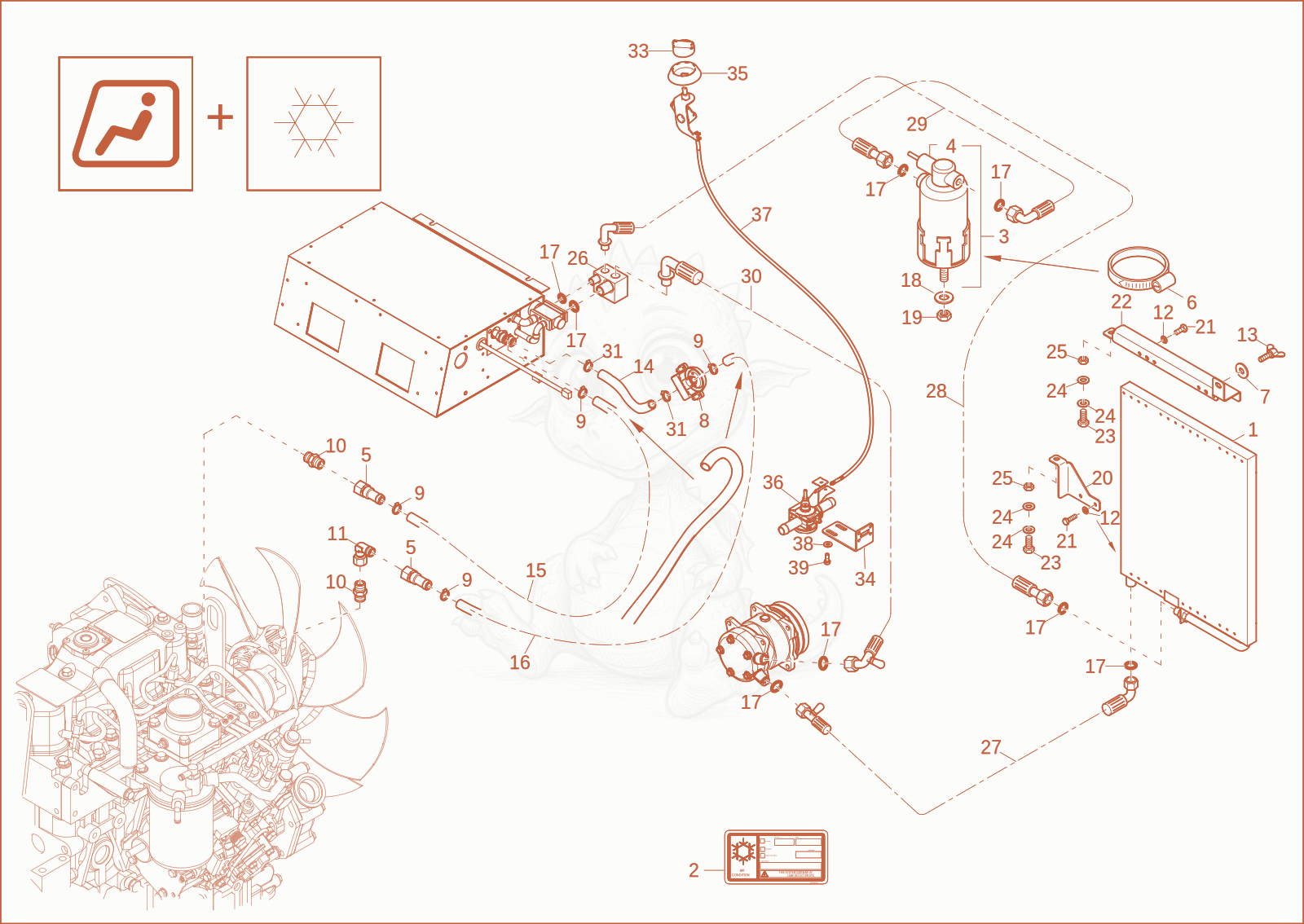

Despiece de AIR-CONDITIONING PLANT INST. (OPTION) · ET35

11000102910
$601.83
Condenser 1000102910×1
21000483160No la vendemos
sticker×1
31000113362
$305.90
air dryer X-1000135964 - 1000113362×1
41000153692
$277.11
PRESSURE SWITCH - 1000153692×1
51000267951
$22.17
hose sleeve - 1000267951×2
61000083296
$10.85
Hose Clamp - 1000083296×1
71000095341
$1.16
WASHER - 1000095341×1
81000147152
$89.65
water valve - 1000147152×1
91000267810
$4.29
hose clamp - 1000267810×2
101000082875
$6.68
GE12LR3/8A3CX GEK. GEWINDE - 1000082875×1
111000151592
$19.52
WEE12LROMDA3C - 1000151592×1
121000015430No la vendemos
u-washer×6
131000048699No la vendemos
thumb screw×1
141000391373No la vendemos
preshaped tube×1
151000261871
$17.35
heater hose ID15x3,5 - 1000261871×4.25
161000261871
$17.35
heater hose ID15x3,5 - 1000261871×4.25
171000152394
$24.85
seal kit climate - 1000152394×1
181000015431No la vendemos
washer×1
191000015416
$0.71
DIN985-M8-8-A2C - 1000015416×1
201000303743
$71.18
console - 1000303743×1
211000015377No la vendemos
hex screw×6
221000303584
$99.50
console - 1000303584×1
231000015367No la vendemos
hex screw×2
241000015432
$0.05
washer 10,5 A2C DIN125 - 1000015432×4
251000015407No la vendemos
hexagon nut×2
261000154074
$127.57
Climatic armature - 1000154074×1
271000395597No la vendemos
hose aircondition system×1
281000395598No la vendemos
hose aircondition system×1
291000395599No la vendemos
hose aircondition system×1
331000451868
$18.18
KNOB - 1000451868×1
341000402871
$50.85
PLATE - 1000402871×1
351000421839
$21.93
protection - 1000421839×1
361000396397
$110.34
valve - 1000396397×1
371000460592
$134.19
Cable control unit + Cable V3 - 1000460592×1
381000094966
$0.65
washer M6,4-DIN134 - 1000094966×2
391000085382
$0.70
HEX SCREW - 1000085382×2
