ET35

Despiece de controllever carrier · ET35

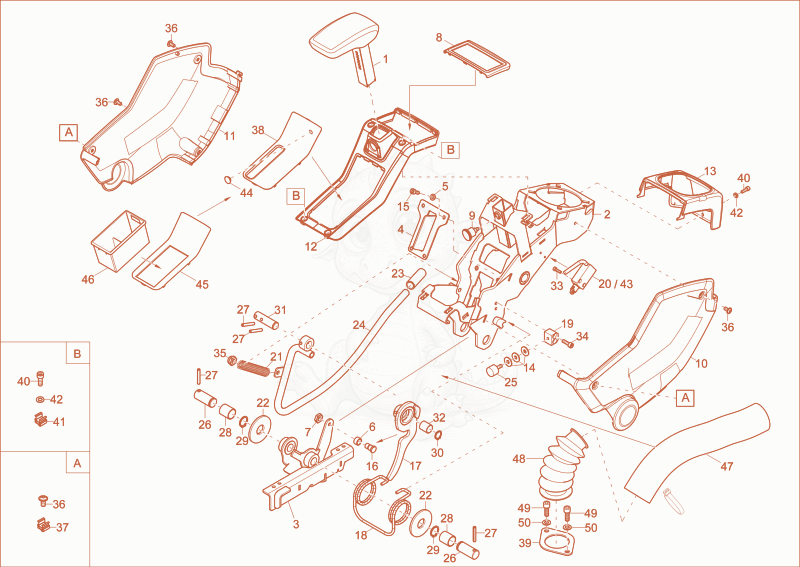

Despiece del controllever carrier de una máquina Wacker Neuson ET35, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 11000374480No la vendemos
    arm rest×1
  • 21000274379
    $494.60
    Frameleft 1000274379×1
  • 31000258610
    $315.23
    Console 1000258610×1
  • 41000247983
    $54.19
    console gas lever - 1000247983×1
  • 51000015430No la vendemos
    u-washer×2
  • 61000254945
    $9.30
    roller - 1000254945×1
  • 71000256268
    $1.11
    nut M10x1,25 A2C-DIN439 - 1000256268×1
  • 81000374906No la vendemos
    insert×1
  • 91000247956
    $27.90
    pin detent - 1000247956×1
  • 101000248073
    $46.44
    cover right - 1000248073×1
  • 111000248074
    $93.71
    cover left - 1000248074×1
  • 121000374905No la vendemos
    trim×1
  • 131000374904No la vendemos
    trim×1
  • 141000095343
    $1.42
    washer A 6,4 St A2C DIN9021 - 1000095343×3
  • 151000085455
    $0.81
    allen screw M6x16-8.8 A2C - 1000085455×2
  • 161000254944
    $7.93
    pin - 1000254944×1
  • 171000247990
    $58.36
    lever left - 1000247990×1
  • 181000247988
    $20.75
    spring 4,5x56 - 1000247988×1
  • 191000247984
    $24.32
    bracket rupper buffer - 1000247984×1
  • 201000247989
    $102.83
    end switch - 1000247989×1
  • 211000247991
    $9.66
    tension spring - 1000247991×1
  • 221000247987
    $3.83
    end washer - 1000247987×2
  • 231000248836
    $3.52
    handle protection - 1000248836×1
  • 241000247992
    $104.56
    lever right - 1000247992×1
  • 251000247997
    $3.14
    metal-rubber buffer - 1000247997×1
  • 261000247954
    $13.54
    pin DM=20x47 - 1000247954×2
  • 271000082719
    $0.73
    cotter pin 5x36 - 1000082719×4
  • 281000247959
    $4.36
    slide bearing 20x23x25 - 1000247959×2
  • 291000095358
    $1.34
    lock ring 20x1,2 - 1000095358×2
  • 301000085631
    $0.86
    lock ring 16x1 - 1000085631×1
  • 311000247955
    $18.07
    pin DM=16x57 - 1000247955×1
  • 321000247957
    $2.35
    slide bearing 16x18x20 - 1000247957×1
  • 331000082474
    $0.80
    allen screw M4x16-8.8 A2C-DIN912 - 1000082474×2
  • 341000085457
    $0.13
    allen screw M6x25-8.8 A2C DIN912 - 1000085457×2
  • 351000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 361000165459
    $1.33
    screw M6x12 ISO7380-2 - 1000165459×5
  • 371000094952
    $0.75
    cage nut M6 2,6-3,5 - 1000094952×2
  • 381000374916No la vendemos
    insert×1
  • 391000376265No la vendemos
    intermediate plate×1
  • 401000085451
    $0.70
    allen screw M5x16-8.8 A2C DIN912 - 1000085451×5
  • 411000094953
    $0.75
    Korgmutter M5 3,6-4,5 - 1000094953×4
  • 421000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×5
  • 431000329830No la vendemos
    end switch×1
  • 441000297826
    $6.14
    PVC Plug D=10mm - 1000297826×1
  • 451000374921No la vendemos
    insert×1
  • 461000248085
    $42.09
    board - 1000248085×1
  • 471000397970No la vendemos
    protecting hose×1
  • 481000336470
    $30.82
    bellow - 1000336470×1
  • 491000019593No la vendemos
    cheese head screw×2
  • 501000015431No la vendemos
    washer×2
