G130 Generator,T4F, URI HVAC

Despiece de Radiator Hoses · G130

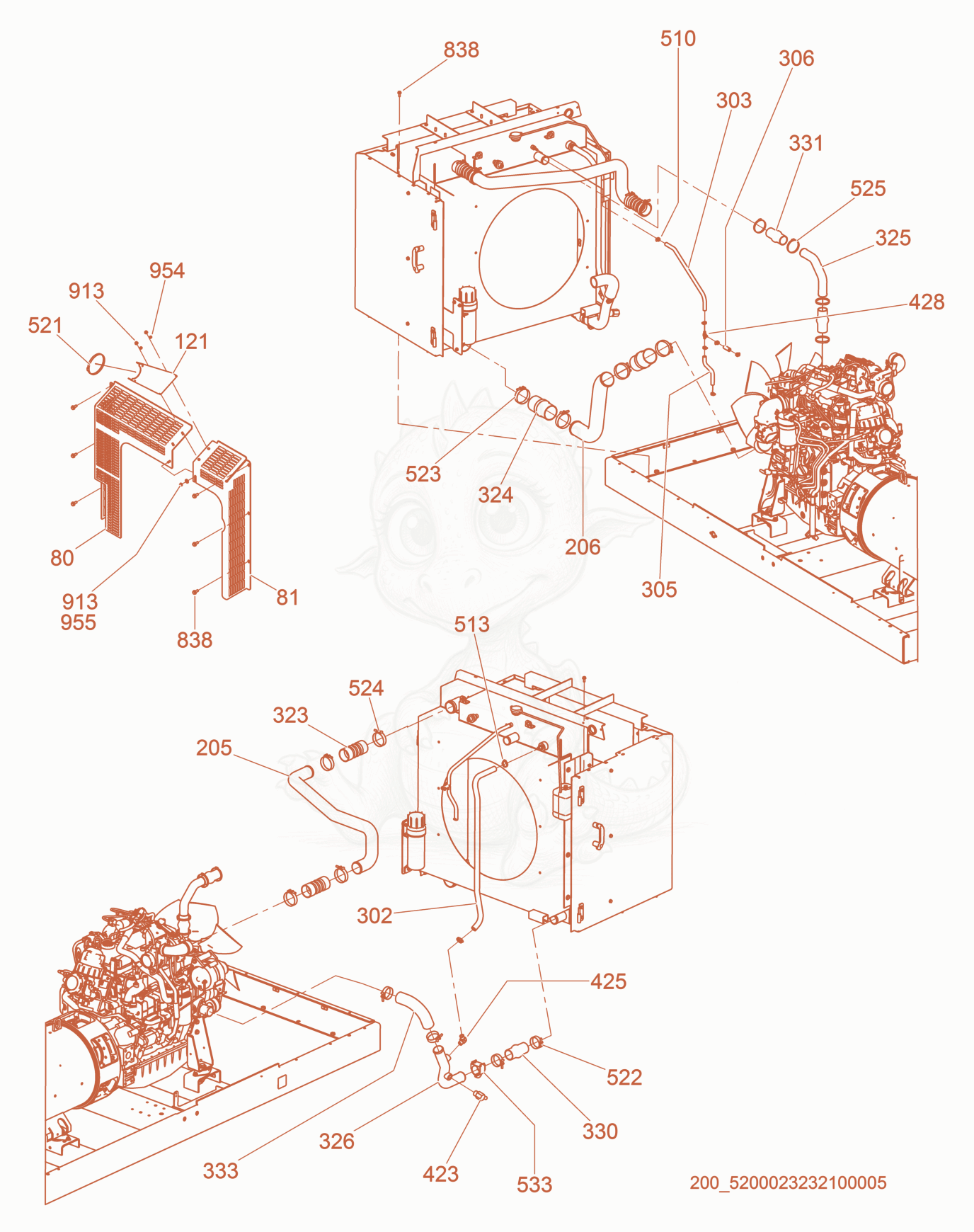

Despiece del Radiator Hoses de una máquina Wacker Neuson G130, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 805100016996
    $615.66
    Guard-Fan,Left,ML T4F P-5000176420 - 5100016996×1
  • 815100028512
    $68.42
    Guard-Fan,Rt,G130/G150,T4F P-5000176420 - 5100028512×1
  • 825100032099
    $34.90
    Guard-Fan,Lower,G130/150,T4 P-5000176420 - 5100032099×1
  • 1215200025051No la vendemos
    Bracket×1
  • 2055200025021No la vendemos
    Pipe×1
  • 2065200025023No la vendemos
    Pipe×1
  • 3025200004413
    $16.53
    Hose-3/4 Fill Line, G120 - 5200004413×1
  • 3035200025527No la vendemos
    Hose×1
  • 3065200025529No la vendemos
    Hose×1
  • 3235200003841
    $40.24
    HOSE-CAC, 2.5 ID X 6 - 5200003841×2
  • 3245000182928
    $67.91
    HOSE-CAC CONNECTOR,3 IDX6 - 5000182928×2
  • 3255100015440
    $88.87
    Pipe-Radiator Top,ML,T4F - 5100015440×1
  • 3265100032427
    $233.06
    Pipe-Radiator,Lower,ML T4F - 5100032427×1
  • 3305000181826
    $56.52
    HOSE-COOLANT,2 ID X 5 ,HUMP - 5000181826Se desconoce×2
  • 3305200025528No la vendemos
    Hose×2
  • 3315200004864
    $49.69
    HOSE-COOLANT,1.75 ID X 5 ,HUMP - 5200004864×2
  • 4235200005055
    $9.69
    Fitting-3/4npt x 5/8 Beaded Hose, 90 de - 5200005055×1
  • 4255000189070
    $66.90
    FITTING-3/4 NPTX3/4 BARB 90DEG - 5000189070×1
  • 4285200025531No la vendemos
    Tee fitting×1
  • 5105000028707
    $0.67
    CLAMP-THREADED,.21-.63 - 5000028707×4
  • 5135000028314
    $0.78
    CLAMP-THREADED,.81-1.5 - 5000028314×2
  • 5215000154345
    $4.00
    CLAMP-WORM DRIVE 57mm-108mm - 5000154345×1
  • 5225000028698No la vendemos
    T-bolt clamp×4
  • 5235000183078
    $6.09
    CLAMP-3.25 NOM,T-BOLT - 5000183078×4
  • 5245000174640
    $7.72
    CLAMP-2 3/4 NOM,T-BOLT - 5000174640×4
  • 5255000154344
    $2.64
    CLAMP-WORM DRIVE 2.06 -3 - 5000154344×4
  • 5335000183078
    $6.09
    CLAMP-3.25 NOM,T-BOLT - 5000183078×1
  • 8335000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×2
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×10
  • 9135000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×4
  • 9145000029117
    $0.03
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×1
  • 9545000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×2
  • 9555000010373
    $0.03
    WASHER B6.4 FLAT - 5000010373×1
