G130 Generator,T4F, URI HVAC

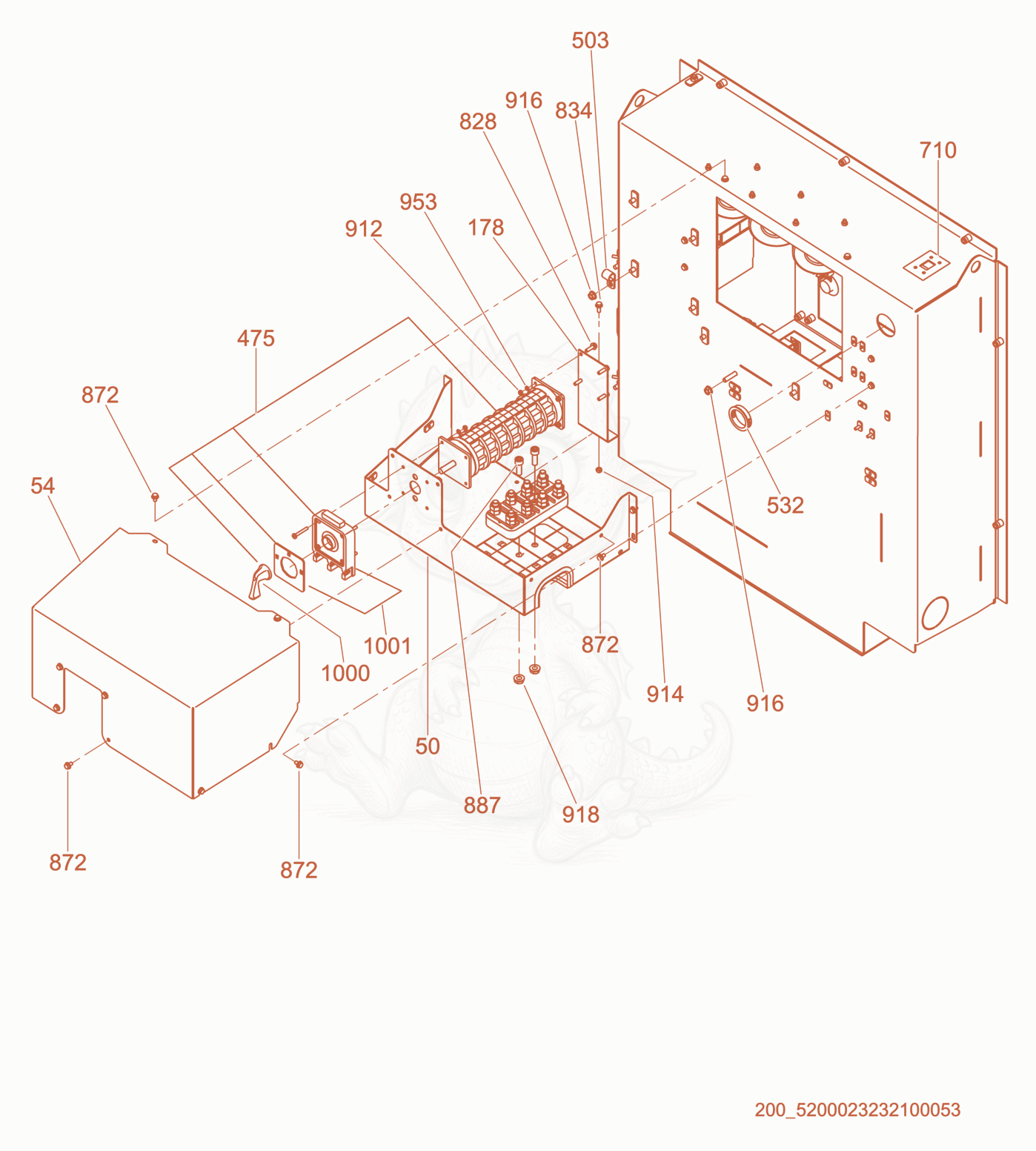

Despiece de Voltage Selector Switch Box · G130

Despiece del Voltage Selector Switch Box de una máquina Wacker Neuson G130, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 505100015744
    $480.81
    Panel-SS Box Bottom,ML P-176420 - 5100015744×1
  • 545100015743
    $414.23
    Panel-SS Box Top,ML P-176420 - 5100015743×1
  • 1785000173711
    $60.21
    BRACKET-SEL SWITCH REAR - 5000173711×1
  • 4755200017212No la vendemos
    Switch×1
  • 5035000153746
    $1.14
    CLAMP-TUBING .625 - 5000153746×5
  • 5325000153092
    $0.73
    BUSHING 1-5/8 IN. I.D. - 5000153092×1
  • 8285000154516
    $0.09
    SCREW M5X16-4.8-H PAN HD ZP - 5000154516×4
  • 8345000029116
    $0.18
    SCREW M6 X 1 X 20,FLANGE LOCK - 5000029116×2
  • 8725000073164
    $0.42
    SCREW M6 X 10,HX.HD,SER.FLG - 5000073164×11
  • 8875000011534
    $0.94
    SCREW M10 X 30 SOC.HD. - 5000011534×2
  • 9125000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×8
  • 9145000029117
    $0.03
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×2
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
  • 9185000089316
    $0.29
    NUT-LOCK M10,SERR.,FLANGE - 5000089316×2
  • 9535000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×8
  • 10005200018362No la vendemos
    Handle×1
  • 10015200002175
    $435.36
    Kit-face plate - ML - 5200002175×1
