G20 Generator,50 Hz Prem Export,CE

Despiece de Generator/Engine · G20

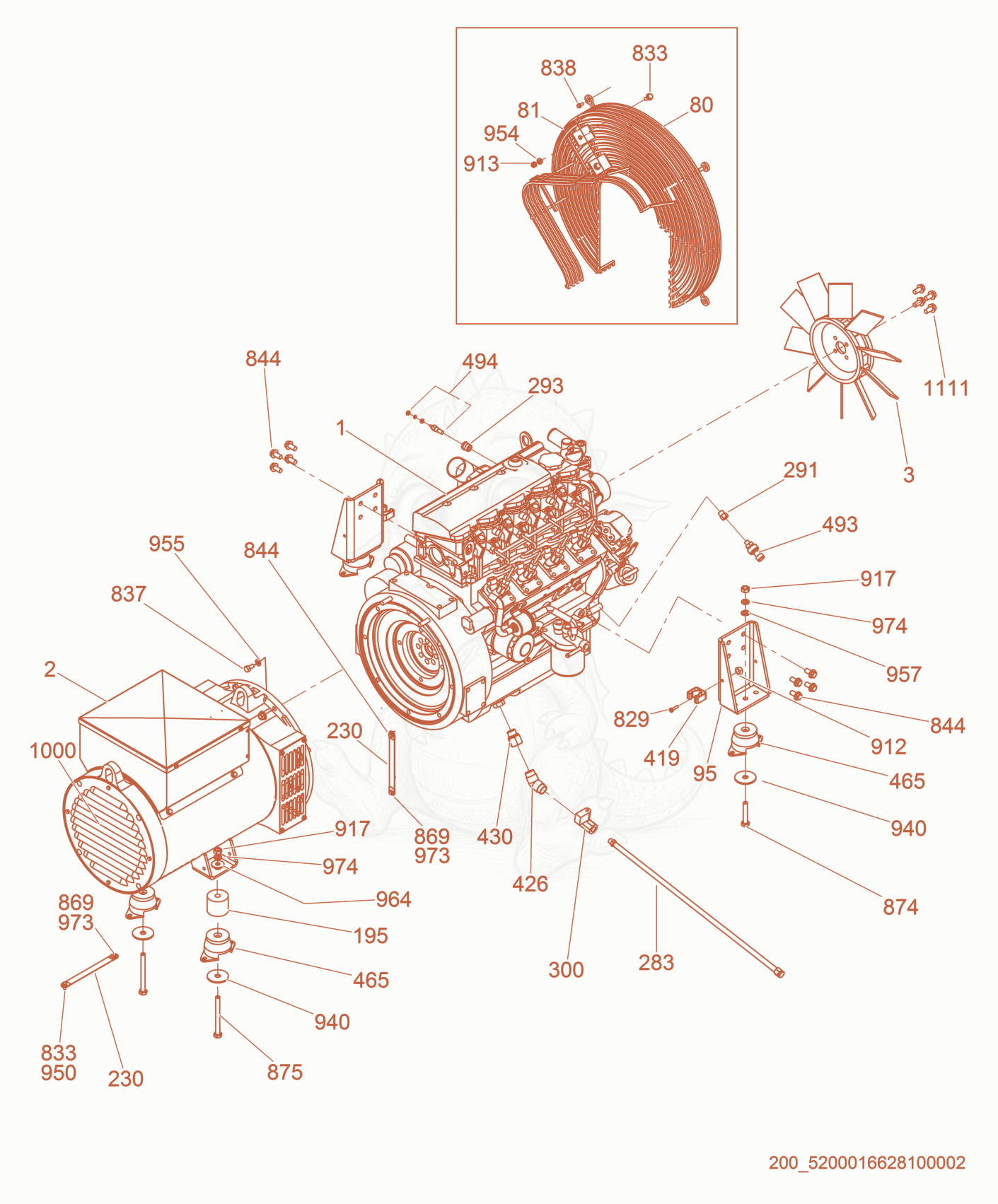

Despiece del Generator/Engine de una máquina Wacker Neuson G20, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 15100018680
    $12,203.76
    Engine-Isuzu,4LE2NYGV02G - 5100018680×1
  • 25200023674No la vendemos
    Generator cpl.×1
  • 35000153227
    $162.75
    FAN-15.75 - 5000153227×1
  • 805000156186
    $808.81
    GUARD,FAN 15 DIA,SML RH P-5000176420 - 5000156186×1
  • 815000156187
    $878.15
    GUARD,FAN 15 DIA,SML LH P-5000176420 - 5000156187×1
  • 955000157230
    $188.84
    MOUNT-ENGINE SML P=5000176420 - 5000157230×2
  • 1955000158123
    $17.14
    SPACER-43MM - 5000158123×2
  • 2305000152978
    $17.62
    STRAP-GROUND 10 - 5000152978×2
  • 2835000176217
    $39.37
    HOSE-ASSY,DRAIN - 5000176217×1
  • 2915000154301
    $2.77
    FITTING 1/8 BSPT X 1/8 FNPT - 5000154301×1
  • 2935000154303
    $85.68
    FITTING-3/8 BSPT X 1/8 NPT - 5000154303×1
  • 3005000154305
    $31.79
    VALVE-BALL 1/2 MALE X FEMALE - 5000154305×1
  • 4265000154306
    $10.27
    FITTING 1/2 STREET 45 - 5000154306×1
  • 4305000154302
    $75.96
    FITTING-M20 MALE X 1/2 NPT - 5000154302×1
  • 4655000164631
    $33.56
    SHOCKMOUNT-ENGINE - 5000164631×4
  • 4935000176122
    $280.73
    SENSOR-OIL PRESSURE - 5000176122×1
  • 4945000153218No la vendemos
    Temperature sensor×1
  • 8295000154517
    $0.06
    SCREW M5X20-4.8-H PAN HD - 5000154517×1
  • 8335000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×2
  • 8375000154520
    $0.18
    SCREW M8X16 HX HD 10.9 PLAIN - 5000154520×8
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×6
  • 8445000154521
    $1.22
    SCREW M10X20-10.9 HX SFLG MZP - 5000154521×8
  • 8445000154521
    $1.22
    SCREW M10X20-10.9 HX SFLG MZP - 5000154521×1
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×2
  • 8745000011322
    $0.53
    SCREW M10 X 60 HX.HD. - 5000011322×2
  • 8755000159005
    $1.10
    SCREW M10 X 110 HX.HD. - 5000159005×2
  • 8895000029116
    $0.18
    SCREW M6 X 1 X 20,FLANGE LOCK - 5000029116×1
  • 9125000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×1
  • 9135000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×1
  • 9175000010883
    $0.29
    NUT M10 8,HEX - 5000010883×4
  • 9405000162258
    $1.54
    WASHER-FLAT,.406X1.75X.125,ZP - 5000162258×4
  • 9505000156269
    $0.12
    WASHER-FLT .058X.281X1.00 ZP - 5000156269×1
  • 9545000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×1
  • 9555000154529
    $0.03
    WASHER M8 HARDENED BLK TP 200 - 5000154529×8
  • 9575000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×8
  • 9645000010375
    $0.18
    WASHER B10.5 FLAT - 5000010375×2
  • 9735000012397
    $0.10
    WASHER-LOCK B8 - 5000012397×1
  • 9745000010644
    $0.04
    WASHER-LOCK B10 - 5000010644×4
  • 10005200004644
    $113.76
    BEARING-REAR - 5200004644×1
  • 11115200017460No la vendemos
    Screw×4
