G20 Generator,50 Hz Prem Export,CE

Despiece de Skid/Fuel Tank cpl. · G20

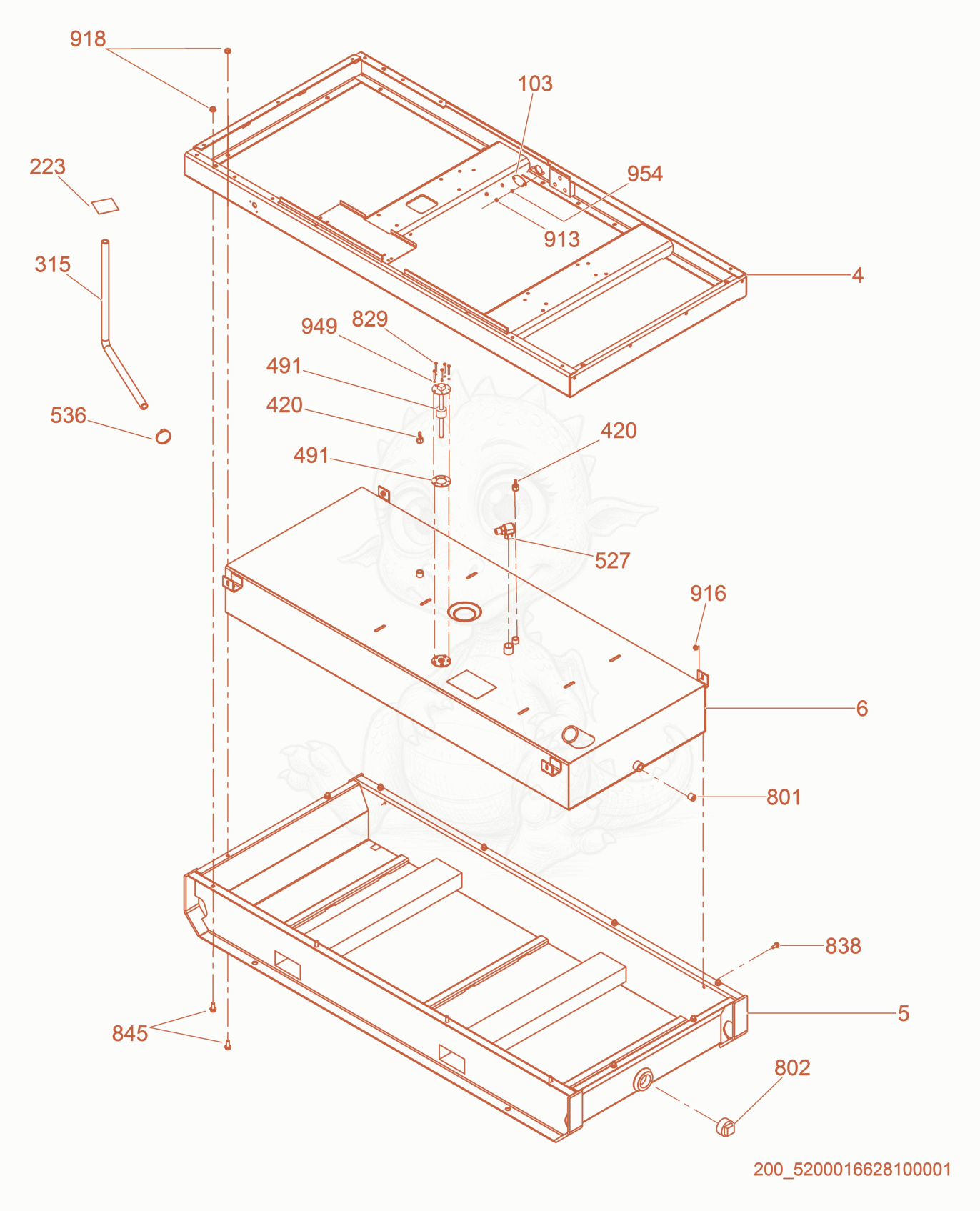

Despiece del Skid/Fuel Tank cpl. de una máquina Wacker Neuson G20, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 45200001450
    $4,363.22
    FRAME-SKID UPPER,SML BLK P- 5000112007 - 5200001450×1
  • 55100022596
    $2,902.75
    FRAME-SKID WLDMT LWR,(PREM)P-5000112007 - 5100022596×1
  • 65000157906
    $2,186.64
    TANK-FUEL 60 GAL P-5000112007 - 5000157906×1
  • 1035200005052
    $8.32
    PANEL-OIL DRN COVR ,SKID,P - 5000112007 - 5200005052×1
  • 2235200014776No la vendemos
    Screen×1
  • 3155200004732
    $10.99
    HOSE-FUEL 5/8 x 32 RACOR GEN-SML - 5200004732×1
  • 4205000160596
    $11.12
    FITTING-5/16 BARB X 3/8 F.NPT - 5000160596×2
  • 4915200001005
    $134.07
    Sensor-Fuel,205mm w/connector - 5200001005×1
  • 5275200005055
    $9.69
    Fitting-3/4npt x 5/8 Beaded Hose, 90 de - 5200005055×1
  • 5365000180084
    $0.96
    CLAMP-WORM,9/16X1-1/16 ,SST - 5000180084×1
  • 8015000153237
    $1.99
    PLUG-1/2 HEX SOCKET - 5000153237×1
  • 8025000159651
    $36.72
    PLUG,2NPT,SQHD,BK PIPE,RAL7043 P-176420 - 5000159651×1
  • 8295000154517
    $0.06
    SCREW M5X20-4.8-H PAN HD - 5000154517×5
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×4
  • 8455000116164
    $0.69
    SCREW M10X25 HEX,SER.FLG ZP - 5000116164×12
  • 9135000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
  • 9185000089316
    $0.29
    NUT-LOCK M10,SERR.,FLANGE - 5000089316×12
  • 9495000064610
    $0.20
    SEAL-RING 5 X 7.5 - 5000064610×5
  • 9545000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×2
