G20 Generator,50 Hz Prem Export,CE

Despiece de Panel cpl. · G20

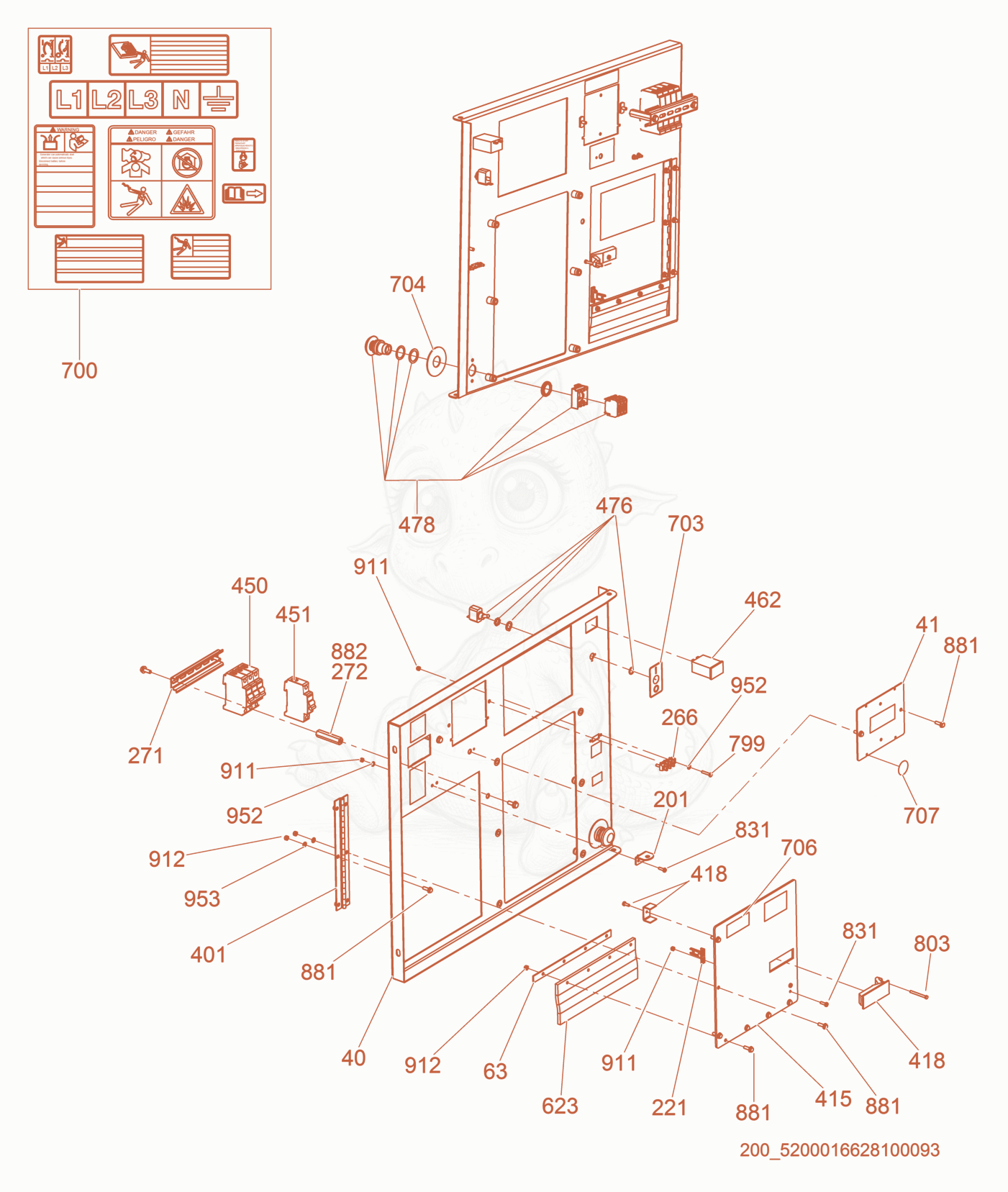

Despiece del Panel cpl. de una máquina Wacker Neuson G20, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

405200023573No la vendemos
Door×1
415000176127
$13.30
PLATE-AVR - 5000176127×1
635000160589
$14.74
PLATE-RETAINER - 5000160589×1
2015000158903
$8.48
BRACKET-PROP ROD - 5000158903×1
2215000153080
$28.83
KEY-LOCKOUT SWITCH (90) - 5000153080×1
2665000159130
$12.94
BLOCK-TERMINAL,2 POSITION - 5000159130×1
2715200023575No la vendemos
Plate×1
2725200012338No la vendemos
Spacer×2
4015000158696
$13.92
HINGE-LUG DOOR - 5000158696×1
4155000171449
$41.05
PANEL-LUG DOOR - 5000171449×1
4185000158784
$37.31
LATCH-NONLOCK,FLUSH,P.BTN - 5000158784×1
4505200023585No la vendemos
Breaker×1
4515200023982No la vendemos
Breaker×1
4625000174668
$104.75
HOURMETER,MECHANICAL - 5000174668×1
4765200004728
$28.58
Switch-toggle,SPST, ON/OFF - 5200004728×1
4785000165439
$139.33
SWITCH-E STOP ASSM,2P-NC,1P-NO - 5000165439×1
6235000159152
$41.25
GUARD-LUG BOX,FOAM - 5000159152×1
7005000158870
$128.36
Label-control panel - 5000158870×1
7035200006899
$32.16
Label-on/off - 5200006899×1
7045000155460
$148.82
LABEL-EMERGENCY STOP - 5000155460×1
7065000192818
$91.59
Label-Close Lug Door - 5000192818×1
7075200006335
$11.16
LABEL-20MM DIAMETER - 5200006335×1
7995000011486
$0.19
SCREW M4 X 20 HX.HD. - 5000011486×2
8035000160599
$0.19
Screw - 5000160599×1
8315000110405
$0.06
SCREW M4 X 14 PHIL HD - 5000110405×1
8815000159811
$0.95
SCREW M5X16 HX HD SERR FLG ZP - 5000159811×12
8825000028949
$0.29
SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×4
9115000010370
$0.03
NUT-LOCK M4 HEX. - 5000010370×8
9125000010369
$0.03
NUT-LOCK M5 HEX. - 5000010369×10
9525000010628
$0.02
WASHER A4.3 FLAT - 5000010628×8
9535000010625
$0.14
WASHER B5.3 FLAT - 5000010625×12
