SPARE PARTS LIST 1200/2002 SP

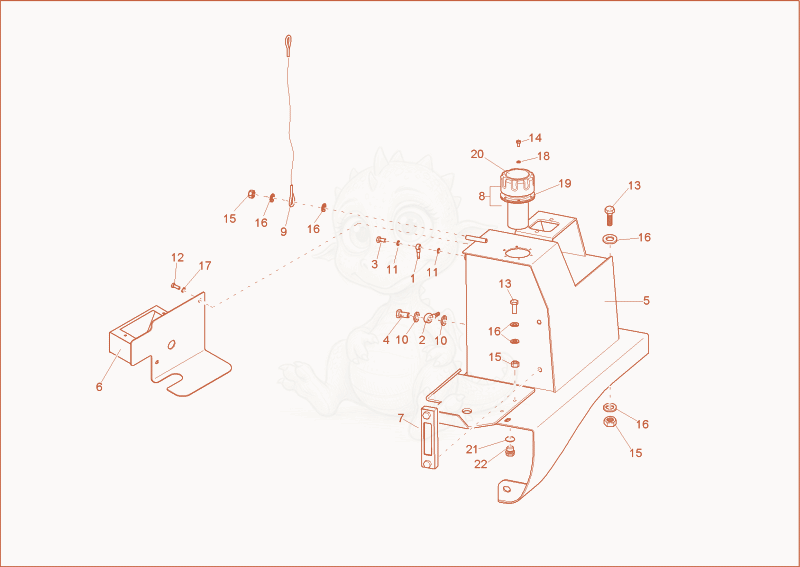

1200/2002 fuel tank Diagram

Exploded parts diagram of the fuel tank of a Wacker Neuson 1200/2002, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000062412Not stocked
    ring nipple×1
  • 21000062413Not stocked
    ring nipple×1
  • 31000062414Not stocked
    banjo bolt×1
  • 41000062415Not stocked
    banjo bolt×1
  • 51000064948Not stocked
    fuel tank×1
  • 61000064949Not stocked
    heat protection×1
  • 71000065026Not stocked
    view glass×1
  • 81000065030Not stocked
    filler pipe×1
  • 91000065203Not stocked
    steel cable×1
  • 101000083406Not stocked
    seal ring×2
  • 111000083676
    $0.73
    SEAL RING - 1000083676×2
  • 121000085382
    $0.70
    HEX SCREW - 1000085382×2
  • 131000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 141000082305Not stocked
    cheese head screw×6
  • 151000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×5
  • 161000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×10
  • 171000015444Not stocked
    spring washer×2
  • 181000001873
    $5.01
    SEAL - 1000001873×2
  • 191000001874
    $30.18
    SEAL - 1000001874×1
  • 201000095111Not stocked
    seal ring×1
  • 211000082413
    $8.23
    LOCK SCREW - 1000082413×1
