SPARE PARTS LIST 1200/2002 SP

1200/2002 overroll bar Diagram

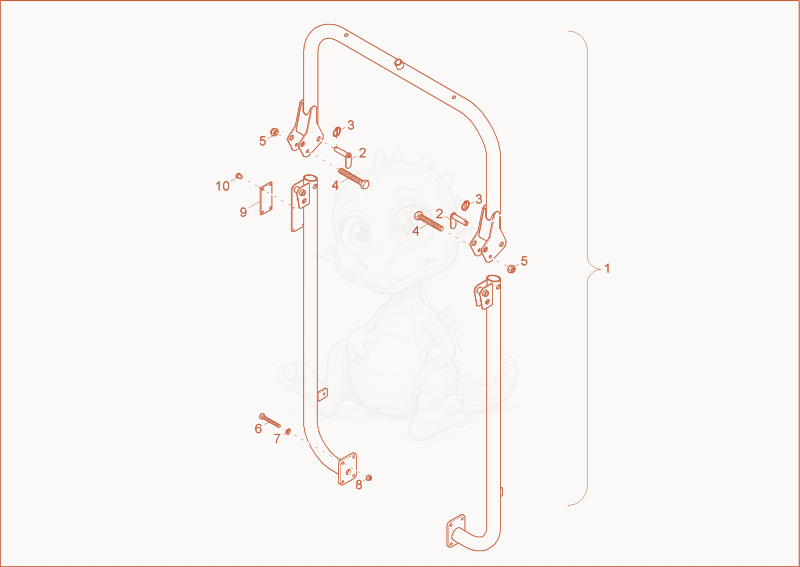

Exploded parts diagram of the overroll bar of a Wacker Neuson 1200/2002, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000021734Not stocked
    overroll bar×1
  • 21000070935
    $17.19
    PIN - 1000070935×2
  • 31000015457Not stocked
    cotter pin×2
  • 41000082353
    $2.36
    HEX SCREW - 1000082353×2
  • 51000020127Not stocked
    hexagon nut×2
  • 61000085412
    $0.87
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×10
  • 71000094974
    $0.70
    washer M10-DIN134 - 1000094974×20
  • 81000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×10
  • 91000132297
    $36.36
    TYPE PLATE - 1000132297×1
  • 101000082698
    $0.65
    blind rivet A3x12 - 1000082698×4
