WN Excavator 2503

2503 motor Diagram

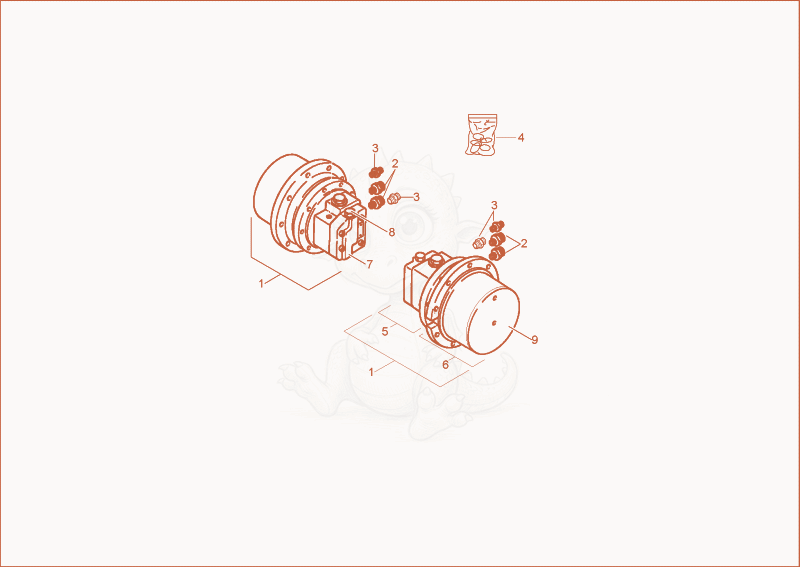

Exploded parts diagram of the motor of a Wacker Neuson 2503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000069281Not stocked
    drive unit×2
  • 21000082970
    $10.84
    GE12LR1/2OROMDA3C - 1000082970×4
  • 31000082963
    $3.67
    GE08LR1/4OROMDA3C - 1000082963×4
  • 41000069355Not stocked
    seal kit drive motor×2
  • 51000069356
    $3,162.35
    MOTOR - 1000069356×2
  • 61000069357Not stocked
    drive gearbox×2
  • 71000069370Not stocked
    brake valve×2
  • 81000069371Not stocked
    brake cartridge×2
  • 91000069376Not stocked
    gear box cover set×2
