WN Excavator 2503

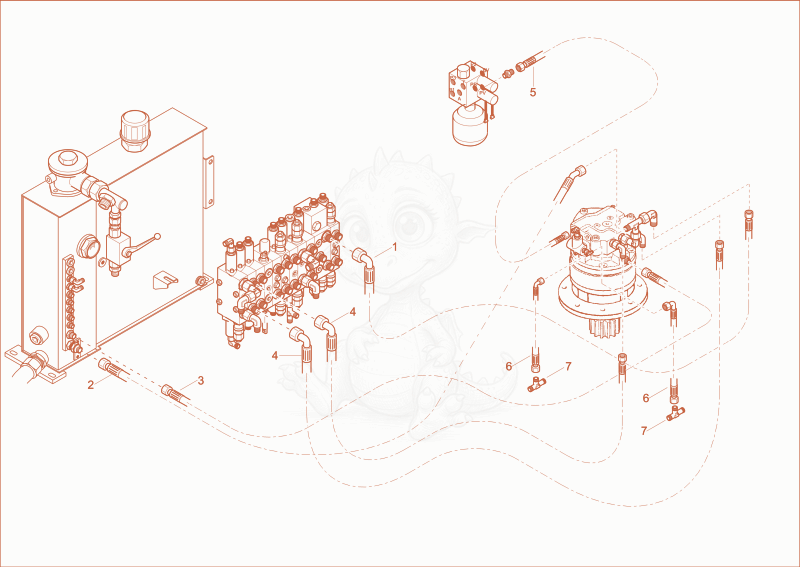

2503 TURNTABLE DRIVE UNIT INSTALLATION Diagram

Exploded parts diagram of the TURNTABLE DRIVE UNIT INSTALLATION of a Wacker Neuson 2503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000077378
    $89.68
    SLHYDR 1SC 13 PN15 90 PN15 0 L1250 0 - 1000077378×1
  • 21000077377Not stocked
    Hose×1
  • 31000076546
    $18.28
    SLHYDR 1SC 10 PN12 90 PN12 0 L1400 0 - 1000076546×1
  • 41000076850
    $60.42
    SLHYDR 2SC 10 PN12 90 PN12 0 L1250 0 - 1000076850×2
  • 51000076313
    $58.94
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1200 0 - 1000076313×1
  • 61000021499Not stocked
    Hose×2
  • 71000015534Not stocked
    screw joint×2
