WN Excavator 2503

2503 HYDRAULIC PUMP INSTALLATION Diagram

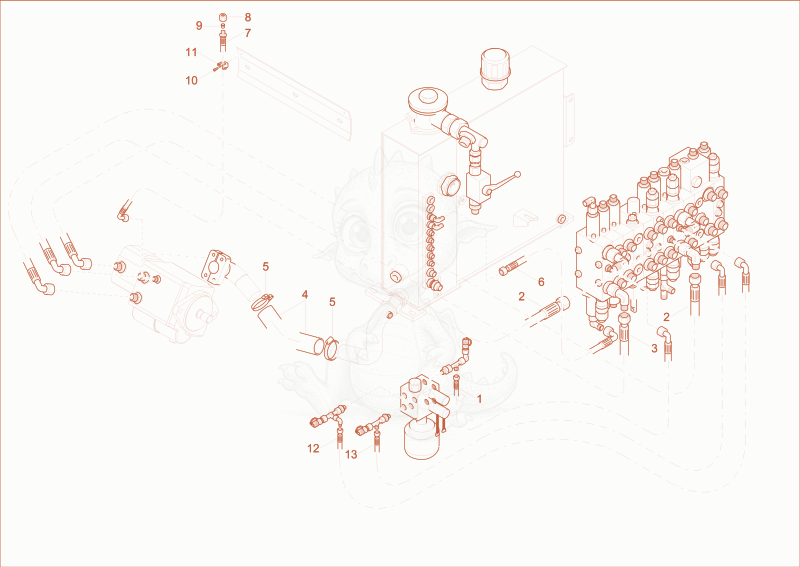

Exploded parts diagram of the HYDRAULIC PUMP INSTALLATION of a Wacker Neuson 2503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000019287Not stocked
    Hose×1
  • 21000188628Not stocked
    Hose×2
  • 31000143050Not stocked
    Hose×1
  • 41000070132Not stocked
    suction hose×1
  • 51000018527Not stocked
    hose clamp×2
  • 61000076578
    $9.89
    SLHYDR 1SCP6,0PN8 0 PN8 90 L250,0 0 - 1000076578×1
  • 71000236886
    $104.58
    SLHYDR 1SCP6,0PN8 90 PD8 0 L800,0 0 - 1000236886×1
  • 81000015481Not stocked
    union nut×1
  • 91000083043
    $1.31
    VKA08A3C - 1000083043×1
  • 101000085560
    $0.93
    screw - 1000085560×1
  • 111000012315Not stocked
    clamp clamp×1
  • 121000113769
    $21.84
    SLHYDR 2SC 6,0PN8 90 PN8 0 L530,0 0 - 1000113769×1
  • 131000013130Not stocked
    Hose×1
