WN Excavator 2503

2503 dipper arm cylinder Diagram

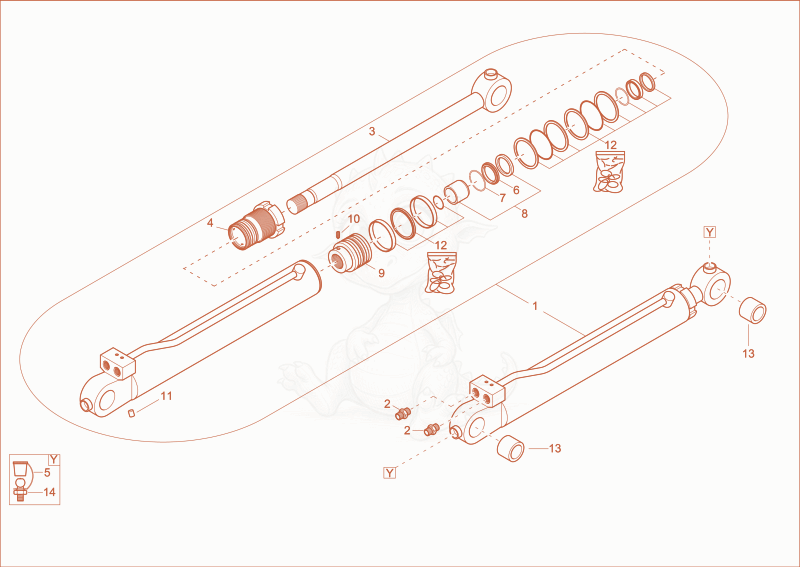

Exploded parts diagram of the dipper arm cylinder of a Wacker Neuson 2503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000186334
    $2,486.91
    Dipperarmcylinder 1000186334×1
  • 21000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×2
  • 31000022603Not stocked
    piston rod×1
  • 41000069227Not stocked
    guide bushing×1
  • 51000015480Not stocked
    cap grease nipple×2
  • 61000064803
    $190.33
    FASTENRING - 1000064803×1
  • 71000082760
    $3.63
    LOCK RING - 1000082760×1
  • 81000125202
    $202.18
    shock absorber - 1000125202×1
  • 91000069228Not stocked
    piston×1
  • 101000015384Not stocked
    thread pin×1
  • 111000082819Not stocked
    ballexpander×1
  • 121000019159
    $39.97
    CYLINDER SEAL KIT - 1000019159×1
  • 131000015614
    $12.93
    steel bushing - 1000015614×2
  • 141000015475Not stocked
    grease nipple×2
