SPARE PARTS LIST 3402RD Force SP

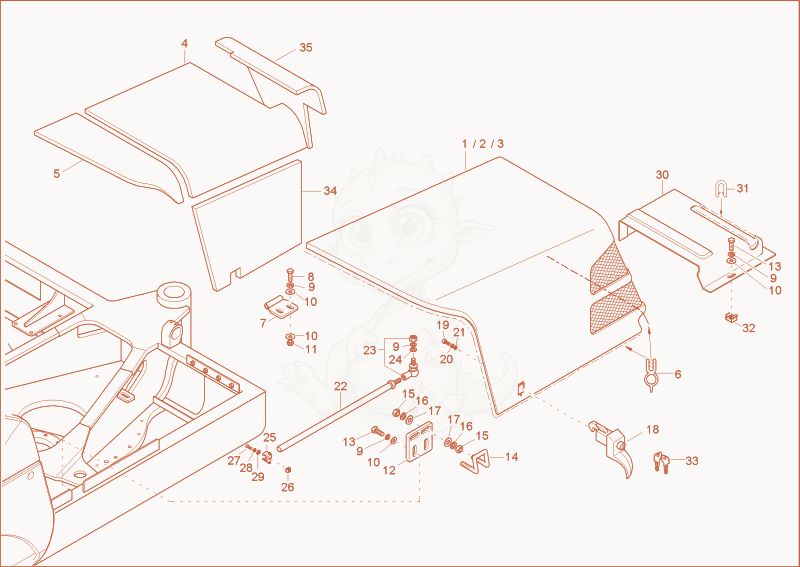

3402RDFORCE valve cover Diagram
- 11000070999Not stockedvalve cover×1
- 21000071000Not stockedvalve cover×1
- 31000167266Not stockedvalve cover×1
- 41000071168Not stockedinsulating mat×1
- 51000071169Not stockedinsulating mat×1
- 61000017845Not stockedrubber profile×3
- 71000069898Not stockedvalve cover hinge×1
- 81000015343Not stockedhex screw×4
- 91000015437Not stockedlock washer×9
- Washer 10,5 St A2C - 1000092303×13
- 111000013021Not stockedhexagon nut×4
- 121000071017Not stockedbracket catch bolt×1
- 131000019136Not stockedhex screw×5
- 141000071016Not stockedlock bar×1
- 151000082549Not stockedhexagon nut×4
- 161000015438Not stockedlock washer×4
- washer 10,5 A2C DIN125 - 1000015432×4
- 181000002885Not stockedbonnet lock×1
- allen screw M 5x12-8.8 A2C DIN912 - 1000085494×3
- lock washer - 1000082608×3
- washer A 5,3 A2C DIN125 - 1000094962×3
- 221000071018Not stockedvalve cover×1
- BALL AND SOCKET - 1000015635×1
- washer 10,5 A2C DIN125 - 1000015432×1
- 251000012315Not stockedclamp clamp×1
- 261000015426Not stockedcage nut×1
- 271000015352Not stockedcheese head screw×1
- lock washer - 1000082608×1
- washer A 5,3 A2C DIN125 - 1000094962×1
- 301000070995Not stockedhose cover×1
- edge protection - 1000098163×1
- 321000015410Not stockedcage nut×3
- 331000004318Not stockedkey×1
- 341000071166Not stockedinsulating mat×1
- 351000071167Not stockedinsulating mat×1
