SPARE PARTS LIST 3402RD Force SP

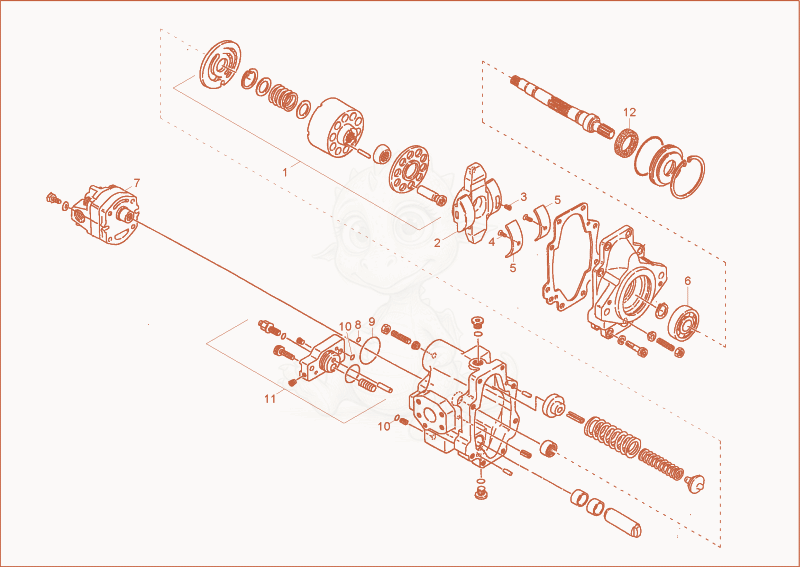

3402RDFORCE HYDRAULIK PUMP DISASSEMBLED Diagram

Exploded parts diagram of the HYDRAULIK PUMP DISASSEMBLED of a Wacker Neuson 3402RDFORCE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000180185Not stocked
    drive unit×1
  • 21000021628Not stocked
    swivel balance×1
  • 31000072239
    $14.79
    maggot screw - 1000072239×1
  • 41000021629
    $8.54
    SCREW - 1000021629×2
  • 51000021631
    $134.37
    BEARING - 1000021631×2
  • 61000015155Not stocked
    ball bearing×1
  • 71000012283Not stocked
    gear pump×1
  • 81000112019
    $2.11
    o-ring - 1000112019×1
  • 91000012375
    $1.68
    O-RING - 1000012375×1
  • 101000112019
    $2.11
    o-ring - 1000112019×3
  • 111000071113Not stocked
    control housing×1
  • 121000124926
    $145.93
    rotary shaft seal - 1000124926×1
