SPARE PARTS LIST 3402RD Force SP

3402RDFORCE chassis Diagram

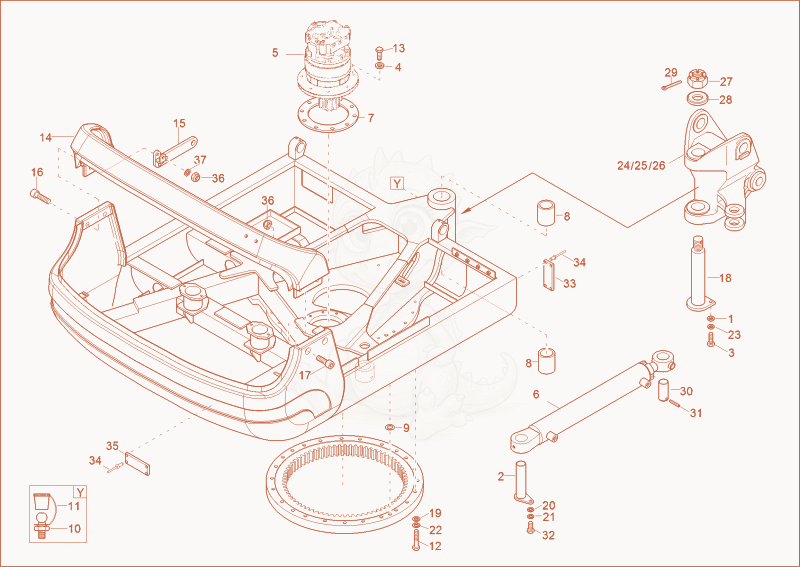

Exploded parts diagram of the chassis of a Wacker Neuson 3402RDFORCE, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000049219Not stocked
washer×2
21000070635
$107.68
PIN - 1000070635×1
31000085437
$1.03
6-Point screw M12x30-10.9 A2C - 1000085437×2
41000013027Not stocked
washer×4
51000004693Not stocked
swivel drive×1
61000071093Not stocked
boom offset cylinder×1
71000071020
$133.77
SHIM - 1000071020×1
81000083213Not stocked
steel bushing×2
91000095054
$1.38
O-RING - 1000095054×1
101000015476Not stocked
grease nipple×1
111000015480Not stocked
cap grease nipple×1
121000082301
$2.01
HEX SCREW - 1000082301×24
131000085438
$1.16
6-piont screw M12x50 - 1000085438×10
141000071015Not stocked
cast iron bracket×1
151000071008Not stocked
bracket pneumatic spring×1
161000015391Not stocked
cheese head screw×2
171000015400Not stocked
cheese head screw×2
181000070631Not stocked
pin×1
191000019126Not stocked
u-washer×24
201000015431Not stocked
washer×1
211000015437Not stocked
lock washer×1
221000015443Not stocked
lock washer×24
231000082609
$0.73
lock washer - 1000082609×12
241000167264Not stocked
swivel console×1
251000070413Not stocked
swivel console×1
261000070412Not stocked
swivel console×1
271000015417
$12.94
DIN935-M36-8-A2C - 1000015417×1
281000070636Not stocked
washer×1
291000021603
$0.88
COTTERPIN - 1000021603×1
301000019751Not stocked
pin×1
311000082715
$1.28
cotter pin 8x80 - 1000082715×1
321000013008Not stocked
hex screw×1
331000002903
$11.15
REFLECTOR - 1000002903×2
341000082697
$0.80
blind rivet A3x12 - 1000082697×16
351000004320
$1.60
REFLECTOR - 1000004320×2
361000020788Not stocked
hexagon nut×4
371000021001
$0.89
WASHER - 1000021001×2
