SPARE PARTS LIST 3402RD Force SP

3402RDFORCE HAND LEVERS INSTALLATION Diagram

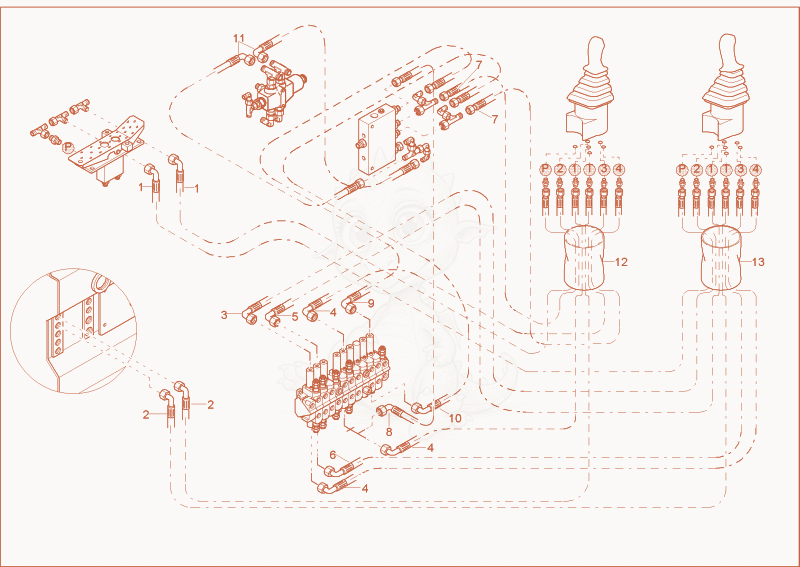

Exploded parts diagram of the HAND LEVERS INSTALLATION of a Wacker Neuson 3402RDFORCE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000013235Not stocked
    Hose×2
  • 21000013114Not stocked
    Hose×2
  • 31000076326
    $37.84
    SLHYDR 1SCP6,0PN8 0 PN8 90 L3100 0 - 1000076326×1
  • 41000013113Not stocked
    Hose×3
  • 51000112773
    $63.20
    SLHYDR 1SCP6,0PN8 0 PN8 90 L3000 0 - 1000112773×1
  • 61000076325
    $64.80
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2800 0 - 1000076325×1
  • 71000016709Not stocked
    Hose×2
  • 81000076309
    $15.92
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1300 0 - 1000076309×1
  • 91000076393
    $14.67
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1400 0 - 1000076393×1
  • 101000076313
    $58.94
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1200 0 - 1000076313×1
  • 111000112780
    $59.91
    SLHYDR 1SCP6,0PN8 0 PN8 90 L700,0 0 - 1000112780×2
  • 121000082056Not stocked
    protecting hose×1
  • 131000082057
    $25.07
    PROTECTING HOSE - 1000082057×1
