SPARE PARTS LIST 3501AB SP
3501AB Parts Diagrams
94 factory assemblies. Open one to see the drawing, every part number on it and what we charge for it.

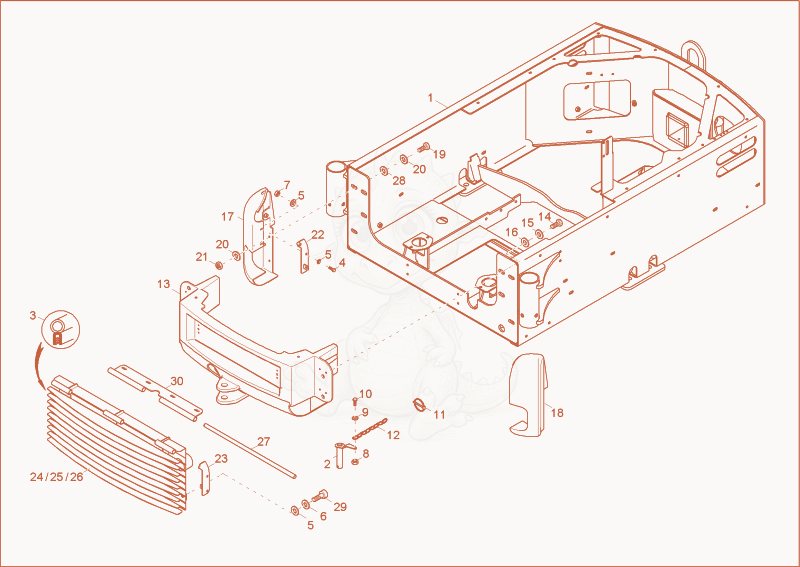

front part frame
rear part frame 1
rear part frame 2
pivot block
pivot block

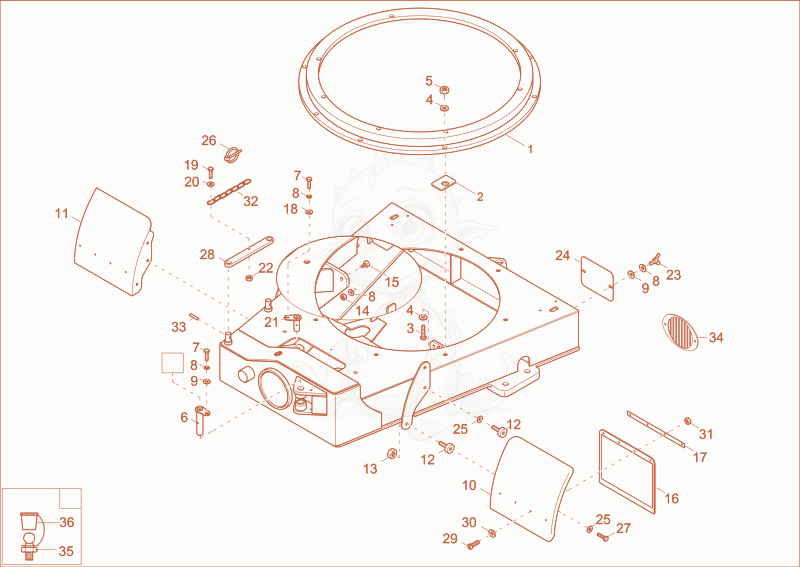

swivel console
swivel lock
undercarriage
central housing (front axle)

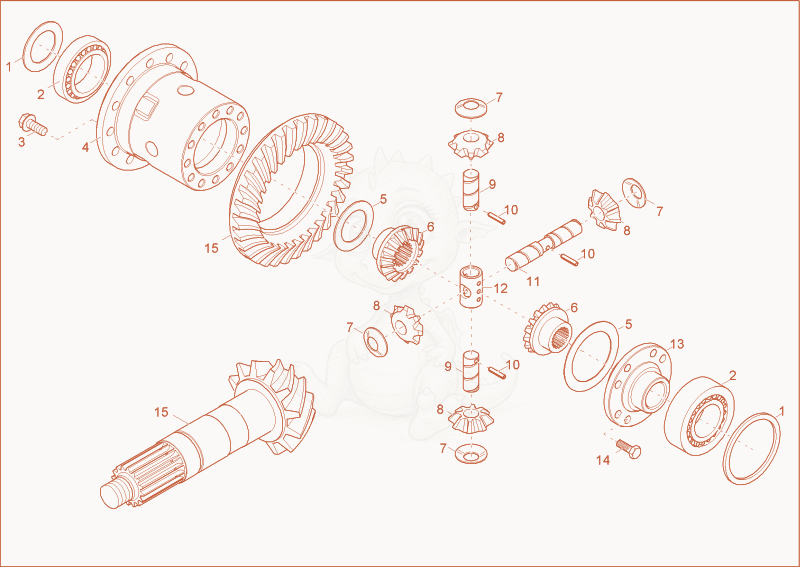

differential (front axle)
AXLE CASE, WHEEL HUB (FRONT AXLE)
brake
HOUSING
differential (rear axle)

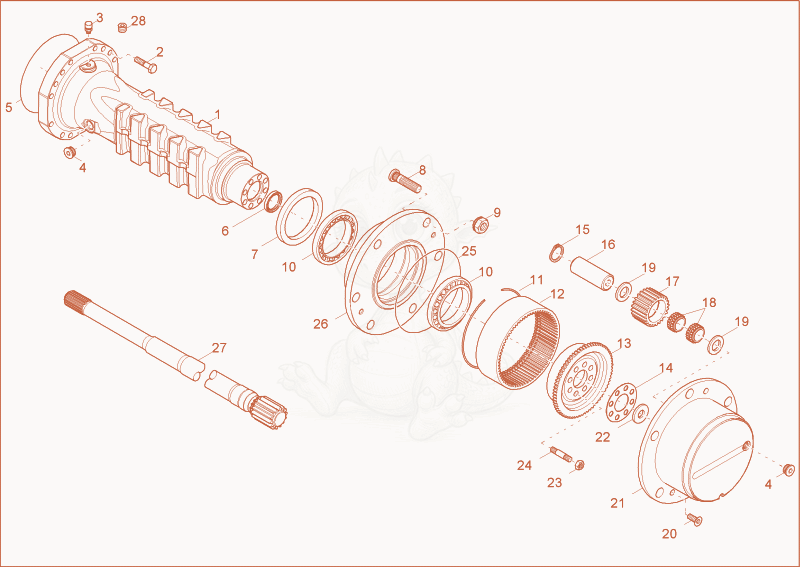

AXLE CASE, WHEEL HUB (REAR AXLE)
DRIVEN HOUSING
pilot stand
floor plate

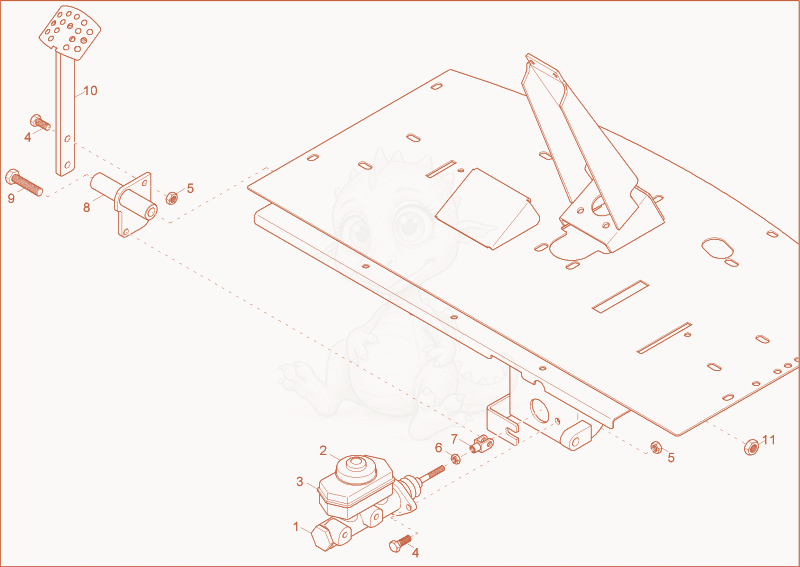

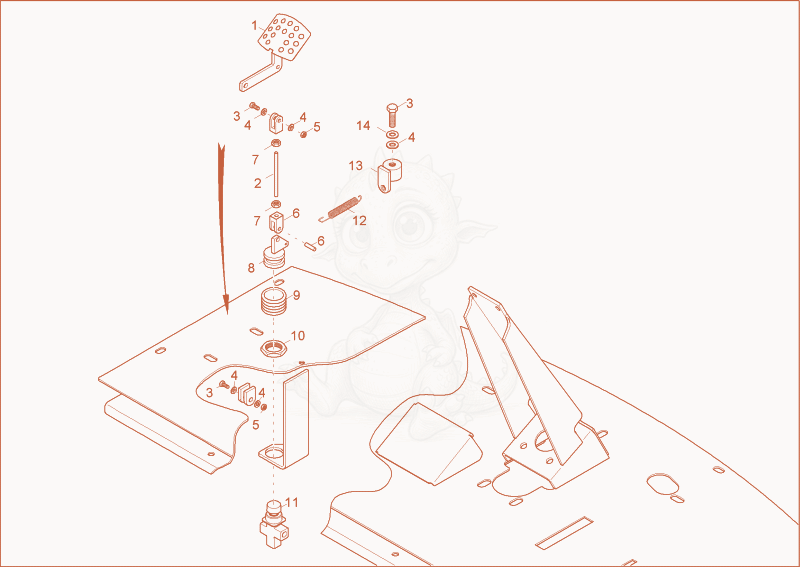

FOOT BRAKE
HAND BRAKE
PEDAL

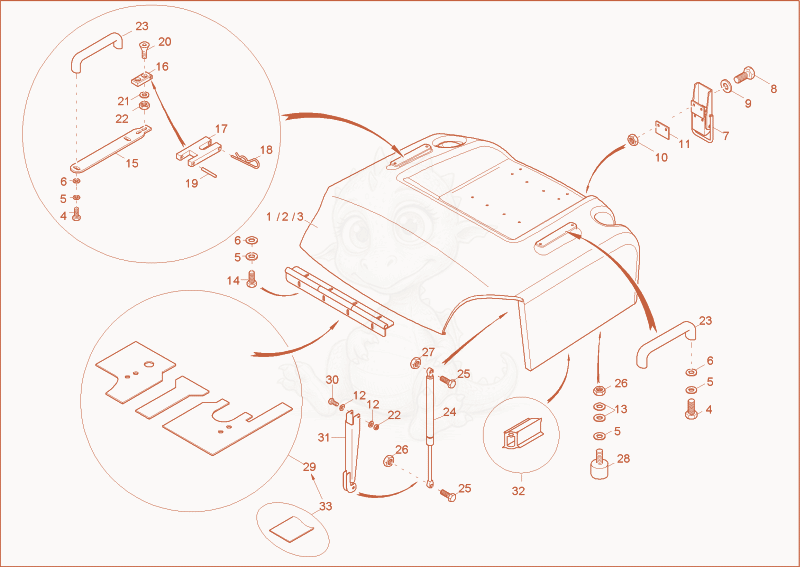

engine hood

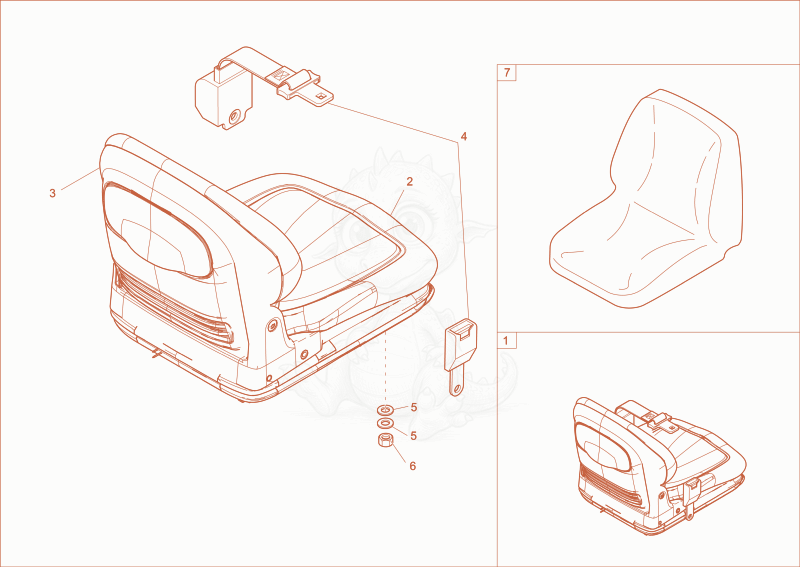

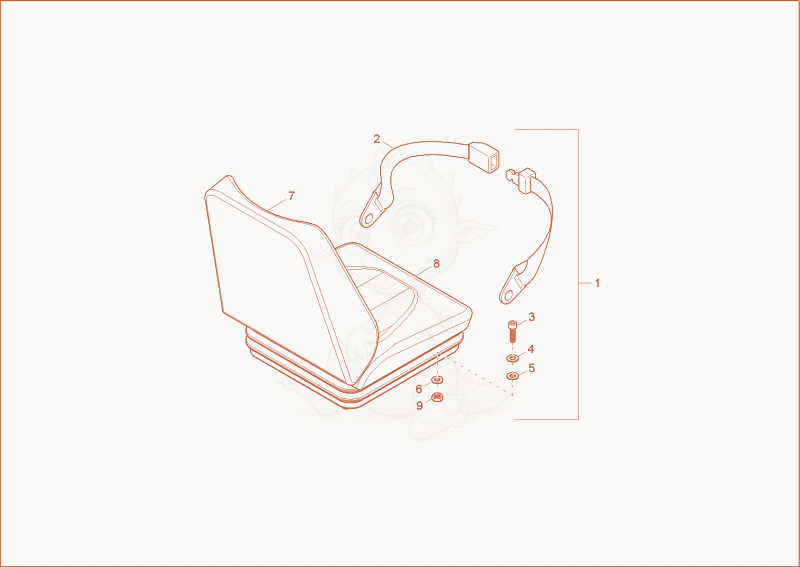

drivers seat
drivers seat
slip-cover
skip
diesel engine
Engine bedding
cooler

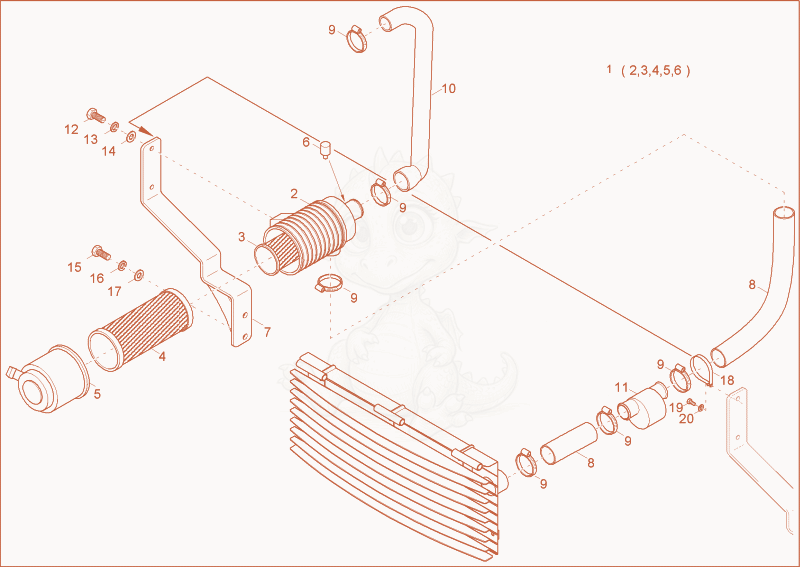

air cleaner

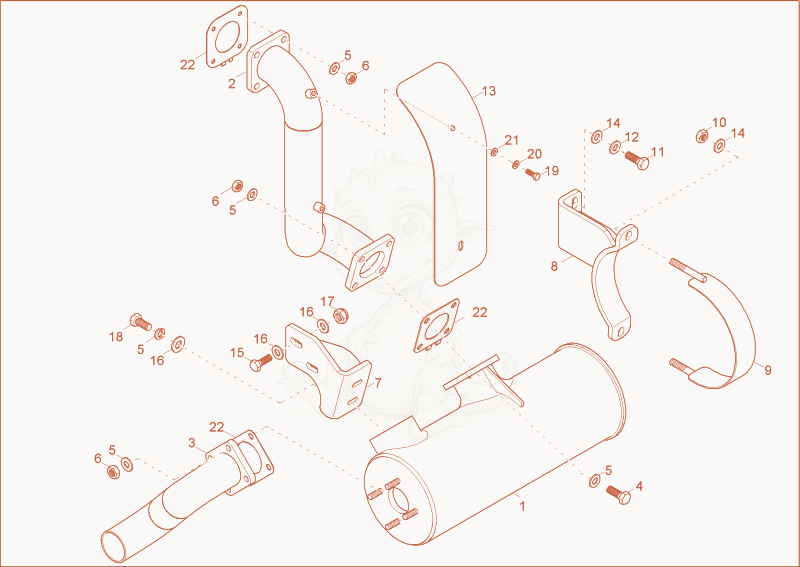

exhaust
fuel tank
fuel system
speed actuating
oil sump

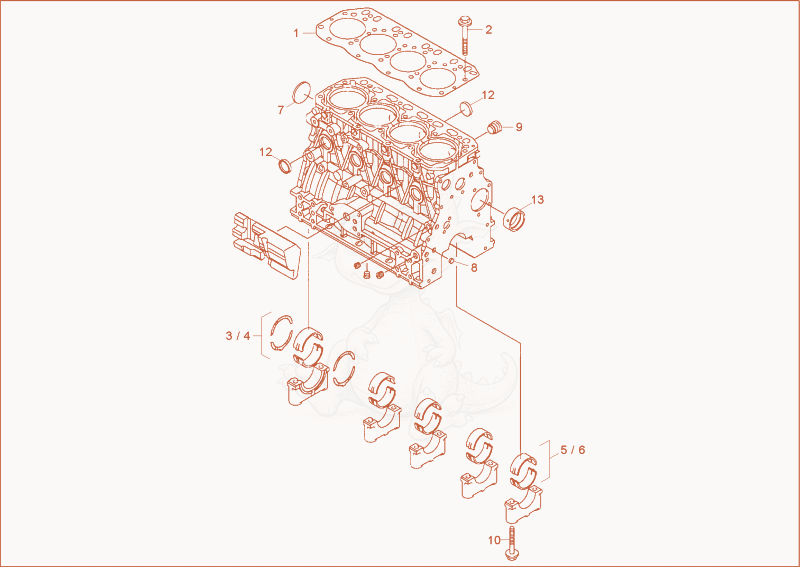

cylinder block
CYLINDER HEAD, VALVE COVER
CAMSHAFT

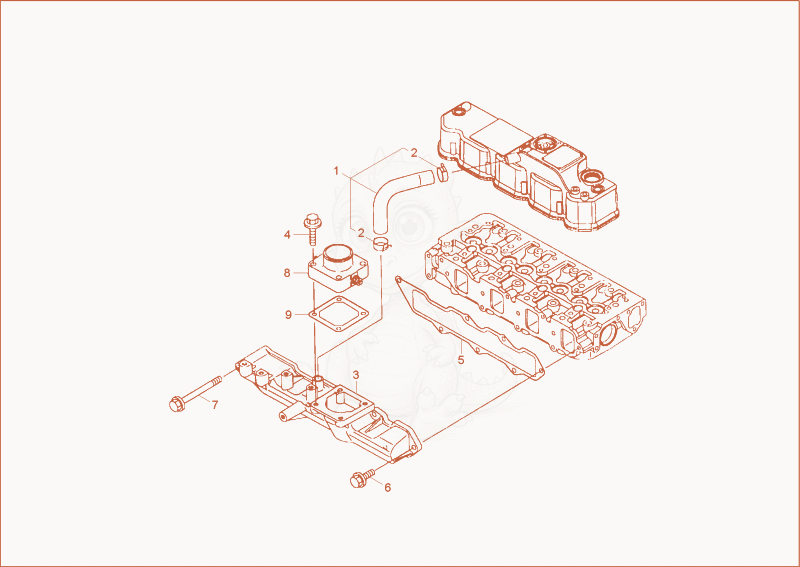

suction manifold
exhaust manifold
crankshaft, piston
seal crankshaft

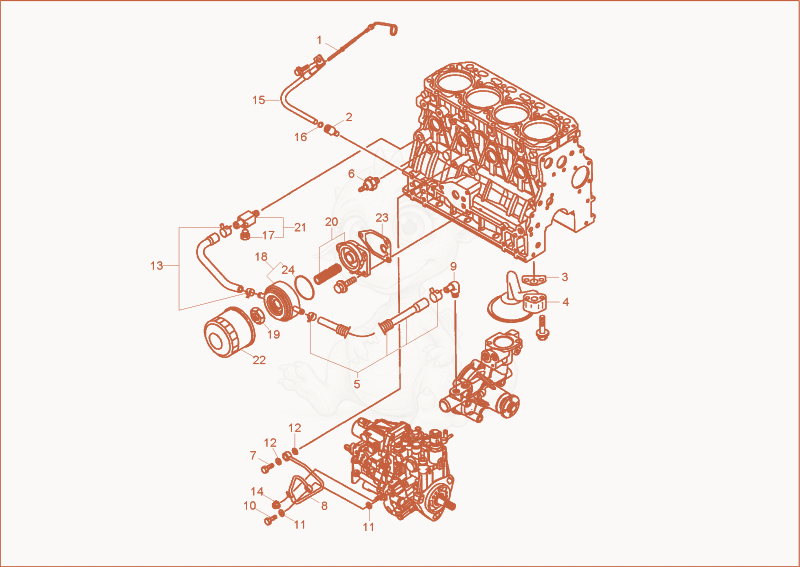

lub oil system
cooling system
fuel injection equipment

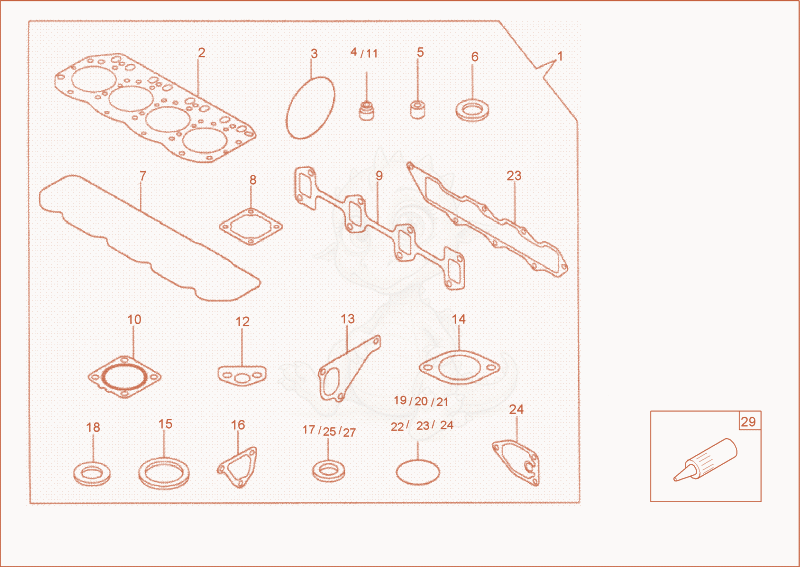

SEAL KIT
HYDRAULIC PUMP DRIVE

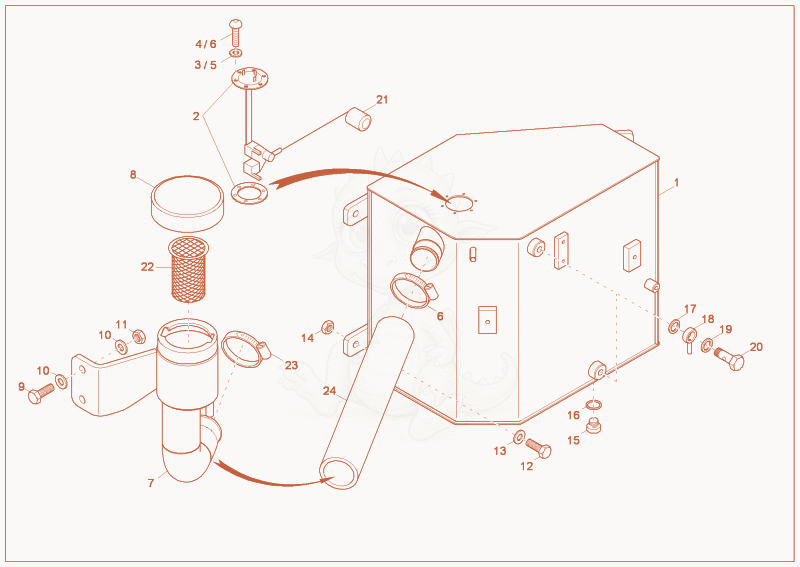

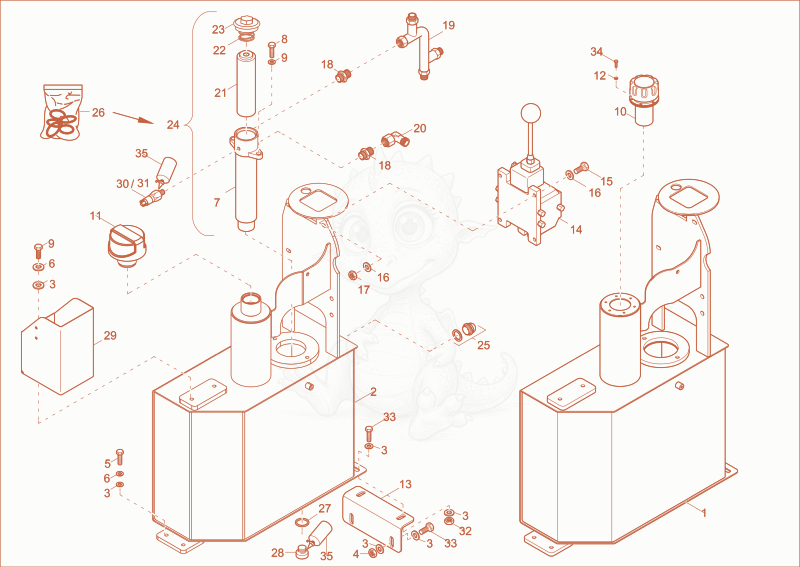

hydraulic tank
hydraulic tank
displacement pump

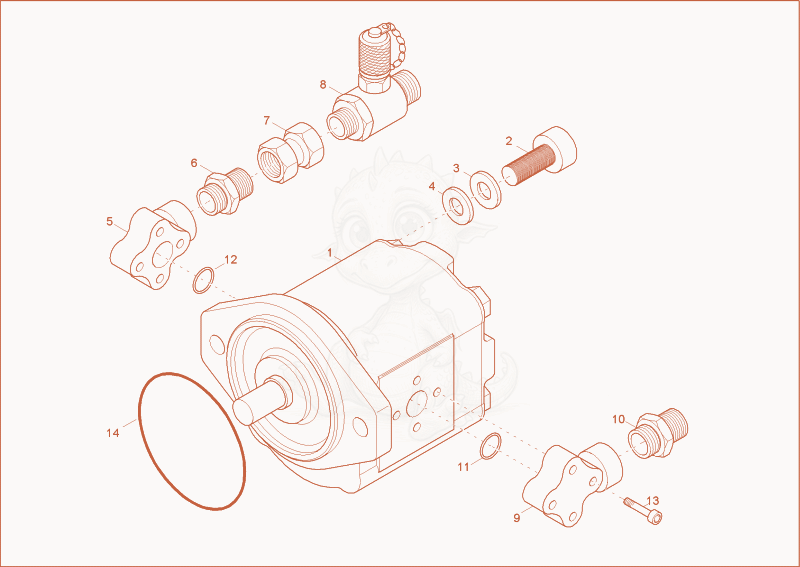

gear pump
displacement motor
steering unit

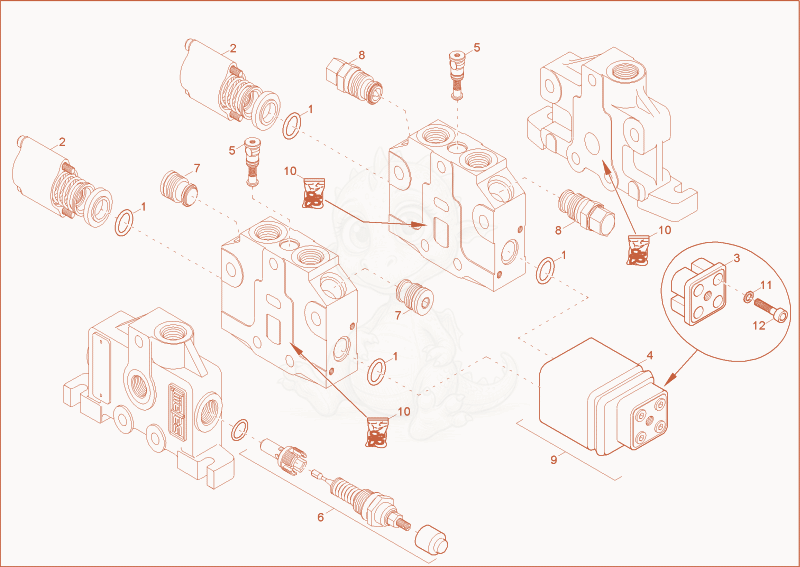

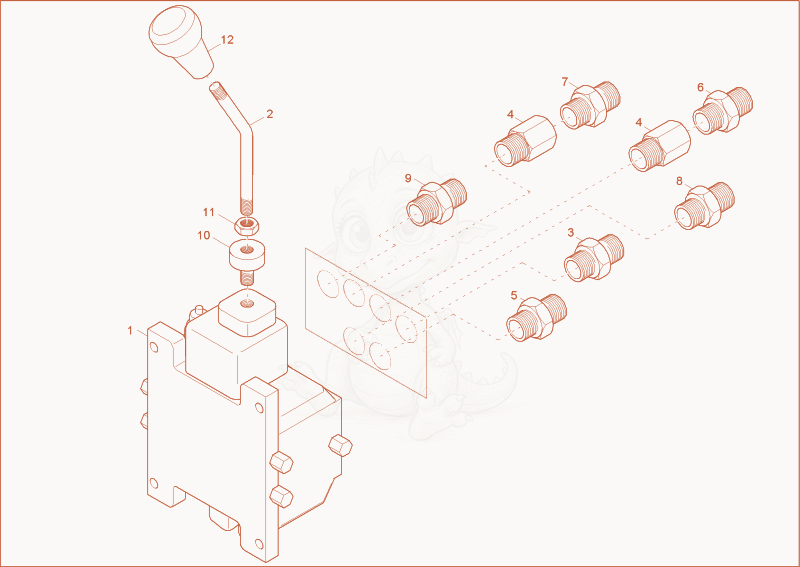

operating valve 1
OPERATING VALVE - DISASSEMBLED
block valve
masterbrake cylinder

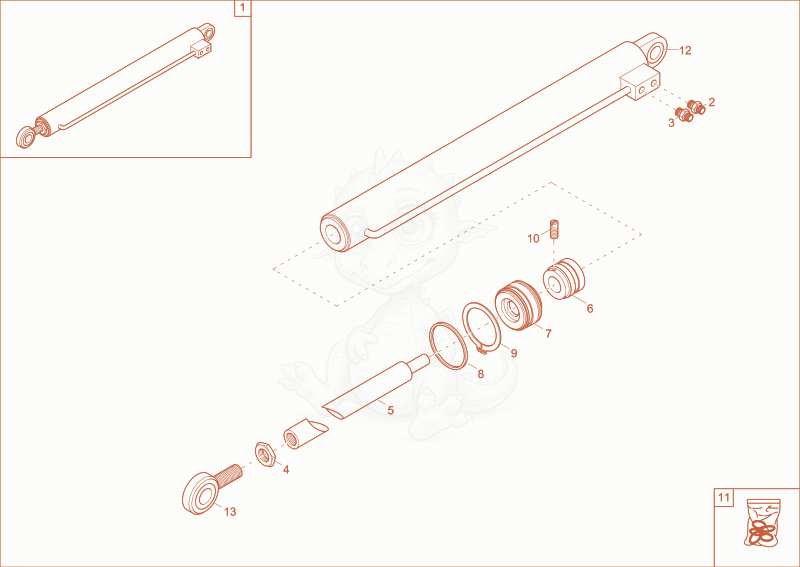

steering cylinder
steering cylinder
tilt ram
tilt ram
boom offset cylinder
boom offset cylinder
OIL COOLER INSTALLATION
GEAR PUMP INSTALLATION

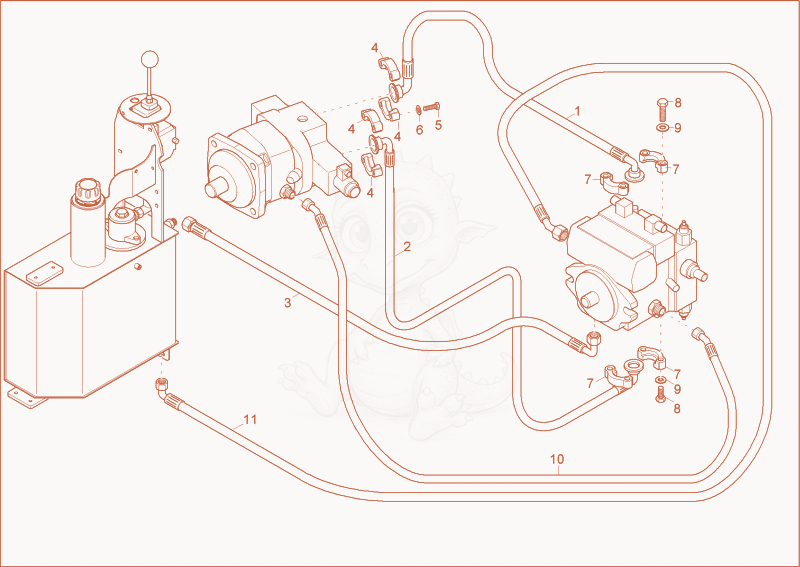

TRAVELLING GEAR INSTALLATION

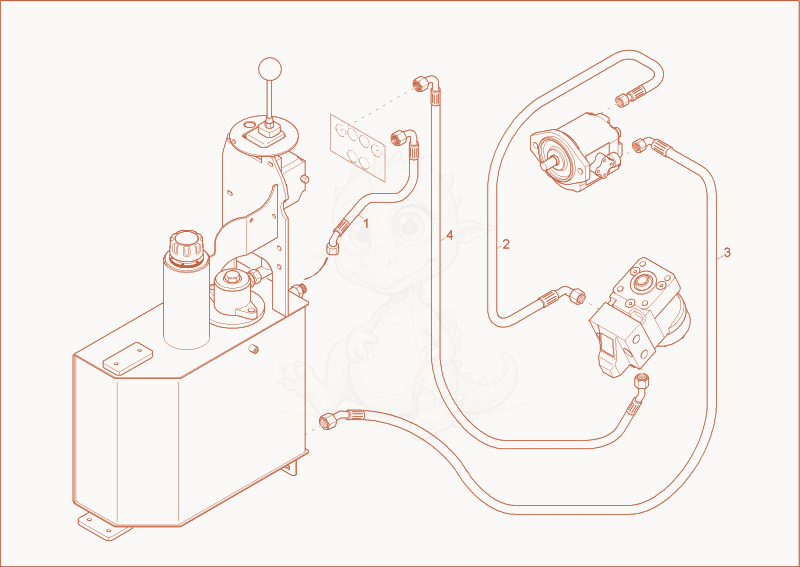

INSTALLATION STEERING
TILT CYLINDER INSTALLATION
BOOM OFFSET CYLINDER INSTALLATION
FOOT BRAKE INSTALLTION
FOOT BRAKE INSTALLTION
LOCK VALVE INSTALLATION
battery

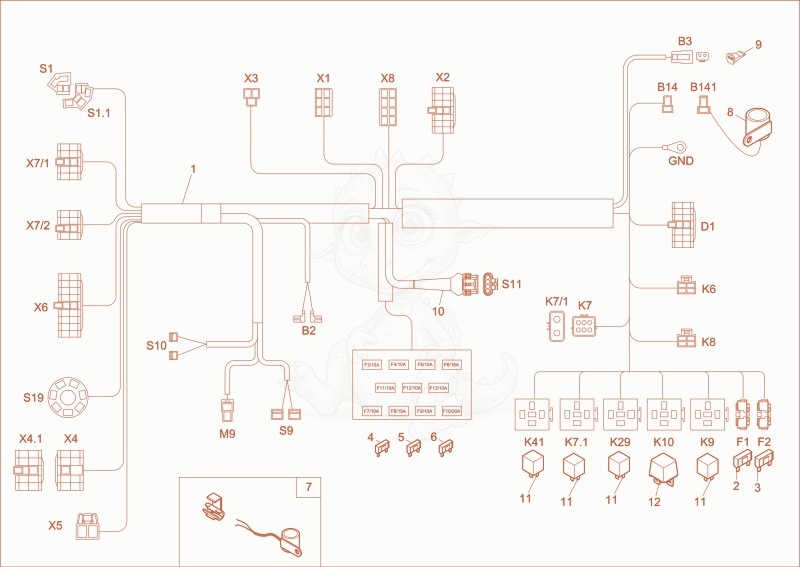

main harness
main harness
main harness
wiring harness engine
wiring harness engine

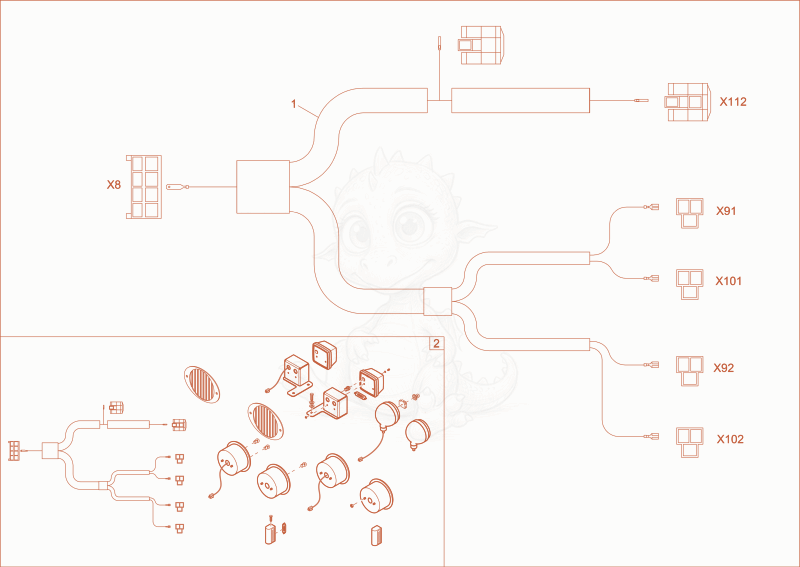

WIRE HARNESS (OPTION)

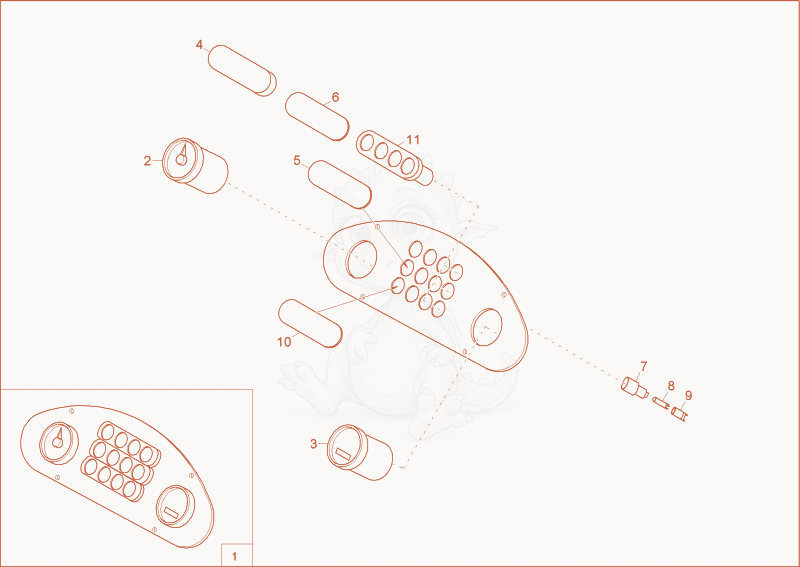

instrument panel

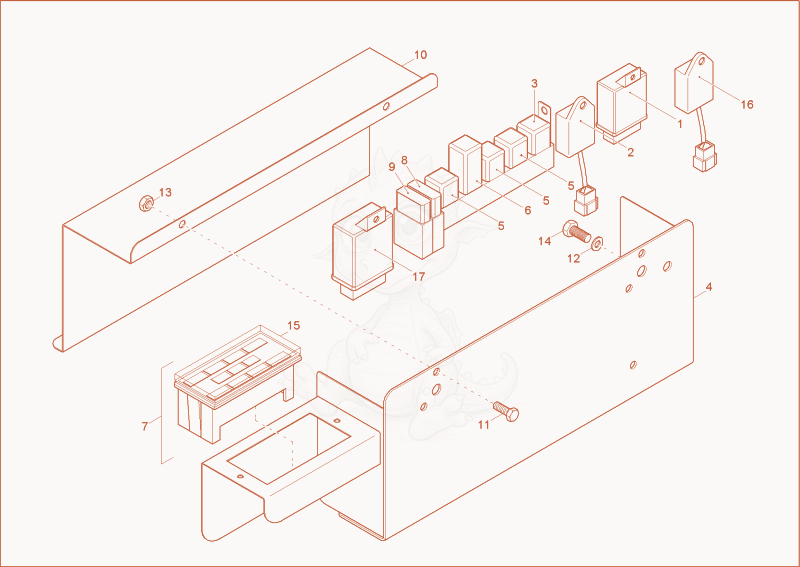

relay case
FRONT LIGHTS (OPTION)
FRONT LIGHTS (OPTION)

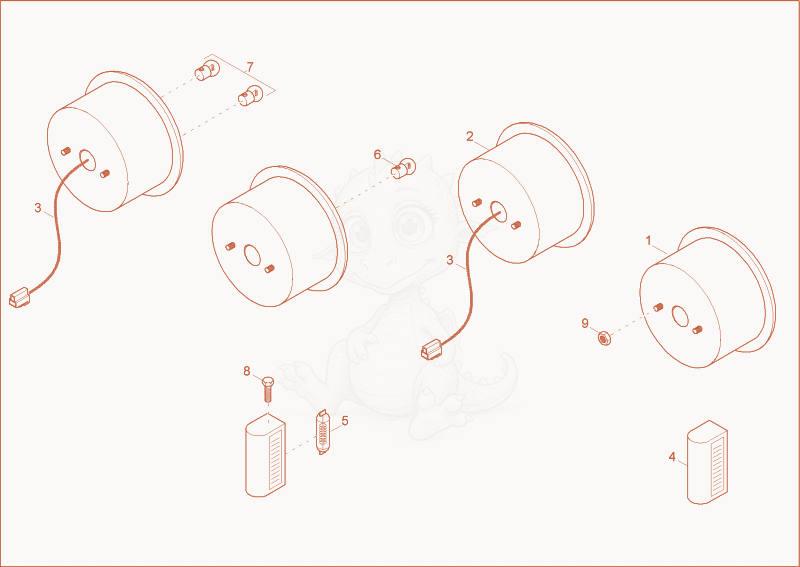

REAR LIGHTS (OPTION)
horn
ignition lock - plate
ignition lock - plate
ROTATING BEACON (OPTION)
sticker

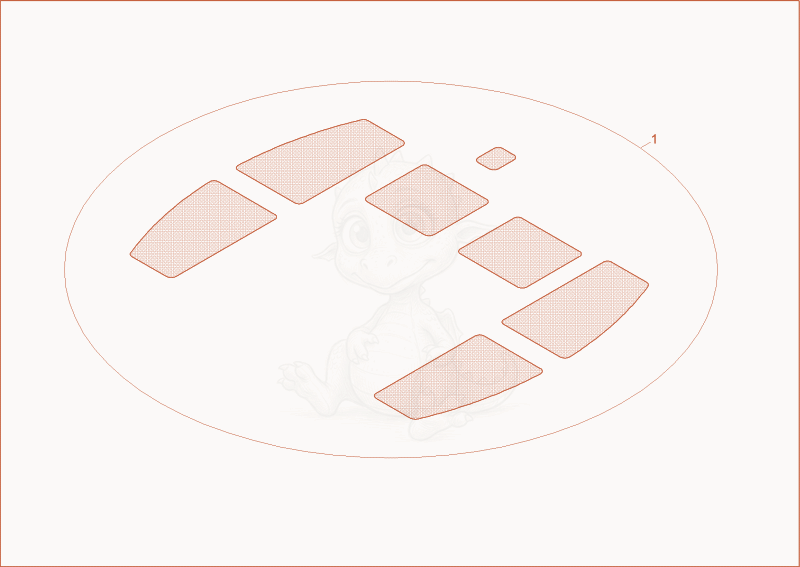

antislide covering
WHEEL CHOCK (OPTION)
overroll bar
FOPS-ROOF (OPTION)

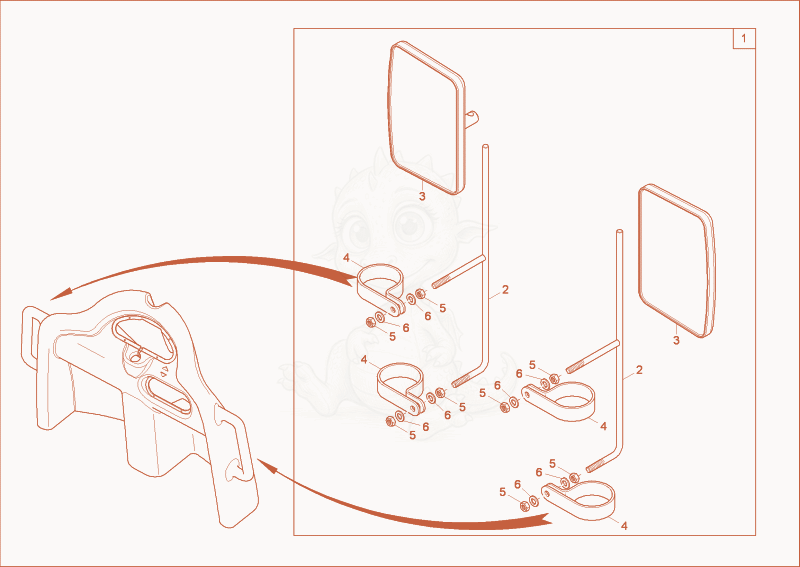

MIRROR (OPTION)
