SPARE PARTS LIST 3501AB SP

3501AB cooling system Diagram

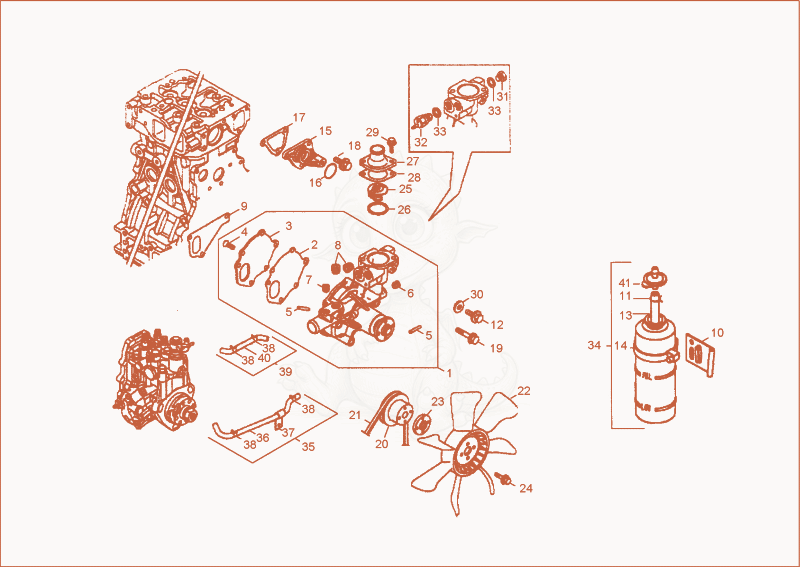

Exploded parts diagram of the cooling system of a Wacker Neuson 3501AB, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000104767
$1,216.53
Waterpump 1000104767×1
21000104768
$18.55
ENGINE GASKET - 1000104768×1
31000107819
$61.26
PLATE - 1000107819×1
41000107830Not stocked
screw×3
51000107833Not stocked
pipe line×2
61000107835
$4.94
PLUG - 1000107835×1
71000107837
$2.27
PLUG - 1000107837×1
81000107838
$4.96
PLUG - 1000107838×2
91000098591
$9.77
Seal - 1000098591×1
101000073579
$25.33
bracket expansion tank - 1000073579×1
111000065816
$26.84
clamp - 1000065816×1
121000085173
$1.82
hex screw - 1000085173×1
131000107828Not stocked
pipe line×1
141000107831
$2.73
CLAMP - 1000107831×1
151000107839
$57.77
INTERMEDIATE PIECE - 1000107839×1
161000099345
$4.98
O-RING - 1000099345×1
171000085177
$3.31
GASKET THERMOSTAT - 1000085177×1
181000085176
$1.82
HEX SCREW - 1000085176×3
191000085179
$2.76
HEX SCREW - 1000085179×3
201000085160
$26.97
BELT PULLEY - 1000085160×1
211000098688
$21.49
V-belt R-1000005136 - 1000098688×1
221000073609
$142.32
fan - 1000073609×1
231000073591Not stocked
spacer ventilator×1
241000107840Not stocked
screw×4
251000012549
$76.23
X-1000115256 THERMOSTAT - 1000012549×1
261000012550Not stocked
gasket thermostat×1
271000073611
$84.47
THERMOSTAT HOUSING - 1000073611×1
281000012548Not stocked
gasket thermostat×1
291000063337Not stocked
hex screw×2
301000085674
$3.33
SEAL RING - 1000085674×1
311000063425Not stocked
lock screw×1
321000003892Not stocked
temperature switch×1
331000002929Not stocked
seal ring×2
341000098565
$69.09
expansion tank - 1000098565×1
351000107848
$113.92
pipe line - 1000107848×1
361000107849
$55.18
PIPE LINE - 1000107849×1
371000107850
$19.06
CLAMP - 1000107850×1
381000107851
$4.83
CLAMP - 1000107851×4
391000107852
$53.15
pipe line - 1000107852×1
401000107853
$33.22
PIPE LINE - 1000107853×1
411000107854Not stocked
locking cap×1
