SPARE PARTS LIST 3501AB SP

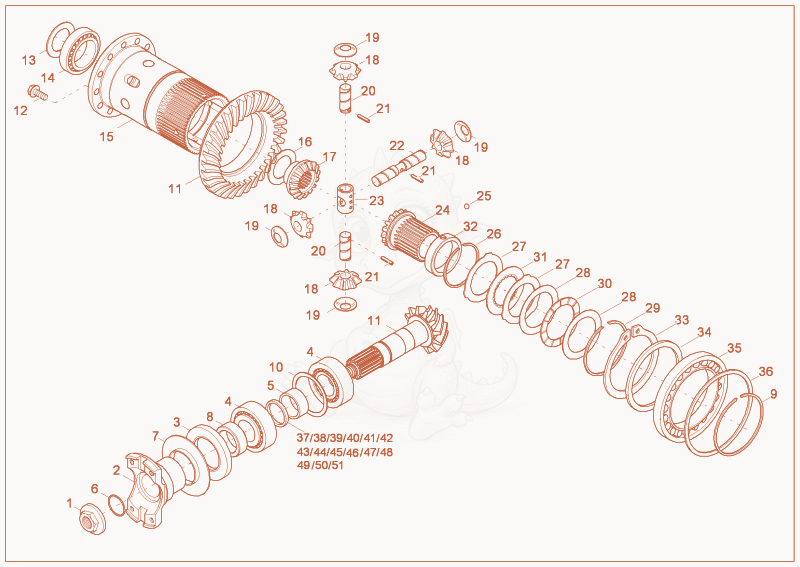

3501AB differential (front axle) Diagram
- Nut - 1000088765×1
- FLANGE - 1000099716×1
- seal ring - 1000143240×1
- bearing - 1000102424×2
- X-1000106924 SHIM - 1000102425×1
- O-RING - 1000099718×1
- protection plate - 1000102427×1
- SHIM - 1000102428×1
- LOCK RING - 1000105839×1
- fitting disc - 1000106302×1
- bevel gear pair - 1000107231×1
- SCREW - 1000102590×12
- FITTING DISC - 1000106303×1
- TAPER ROLLER BEARING - 1000102596×1
- 151000102598Not stockeddifferential housing×1
- WASHER - 1000102600×1
- DIFF.SHAFT GEAR - 1000102602×1
- pinion - 1000102603×4
- WASHER - 1000102605×4
- PIN - 1000102606×2
- pin - 1000102607×3
- PIN - 1000190283×1
- cross piece - 1000102609×1
- diff.shaft gear - 1000102610×1
- BALL - 1000102612×1
- RING - 1000104551×1
- CLUTCH DISC - 1000104555×12
- bearing disc - 1000104556×2
- LOCK RING - 1000104558×1
- bearing disc - 1000104559×1
- CLUTCH DISC - 1000104560×11
- INTERMEDIATE BUSHING - 1000104561×1
- LOCK RING - 1000105820×1
- SHIM - 1000105821×1
- Bearing 1000105823×1
- FITTING DISC - 1000106304×1
- shim - 1000238143×1
- shim - 1000238145×1
- shim - 1000238147×1
- shim - 1000238148×1
- shim - 1000238149×1
- shim - 1000238150×1
- shim - 1000238151×1
- shim - 1000238152×1
- shim - 1000238153×1
- shim - 1000238155×1
- shim - 1000238156×1
- shim - 1000238157×1
- shim - 1000238158×1
- shim - 1000238159×1
- shim - 1000238160×1
