SPARE PARTS LIST 3501AB SP

3501AB pilot stand Diagram

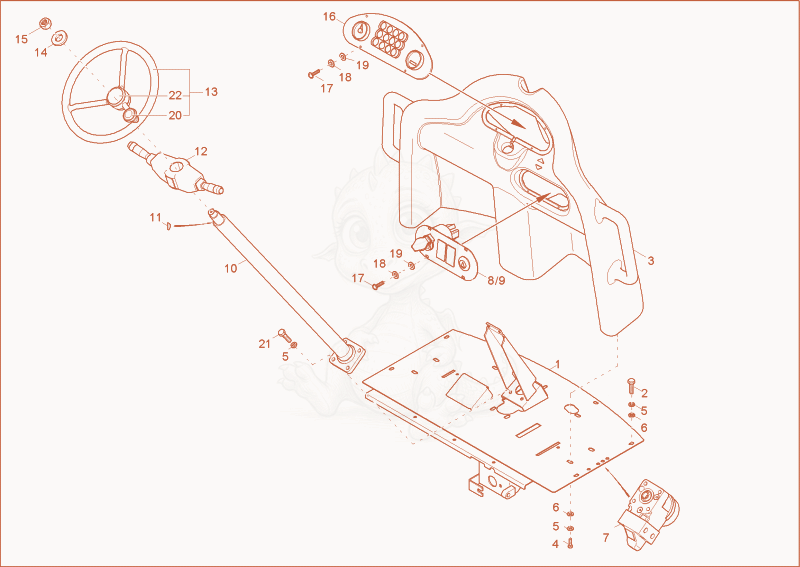

Exploded parts diagram of the pilot stand of a Wacker Neuson 3501AB, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000074946Not stocked
    floor plate×1
  • 21000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×6
  • 31000078994
    $620.43
    Pilotstand 1000078994×1
  • 41000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×9
  • 51000015438Not stocked
    lock washer×19
  • 61000094974
    $0.70
    washer M10-DIN134 - 1000094974×15
  • 71000075169
    $2,088.56
    Steering Unit 1000075169×1
  • 81000115017Not stocked
    ignition lock - plate×1
  • 91000115017Not stocked
    ignition lock - plate×1
  • 101000001842Not stocked
    steering column×1
  • 111000082777
    $7.43
    DISC SPRING - 1000082777×1
  • 121000175223
    $368.26
    steeringstick switch - 1000175223×1
  • 131000064919
    $289.66
    Steeringwheel 1000064919×1
  • 141000082625
    $0.83
    washer 19 - 1000082625×1
  • 151000082604
    $0.93
    HEXAGON NUT - 1000082604×1
  • 161000075039Not stocked
    indicator plate×1
  • 171000085547
    $0.94
    flat head screw - 1000085547×8
  • 181000082621
    $0.74
    spring washer - 1000082621×8
  • 191000094967
    $0.65
    Washer M5,3-DIN134 - 1000094967×8
  • 201000064920Not stocked
    steering wheel knob×1
  • 211000015346Not stocked
    hex screw×4
  • 221000127186
    $5.18
    cover cap - 1000127186×1
