SPARE PARTS LIST 3501AB SP

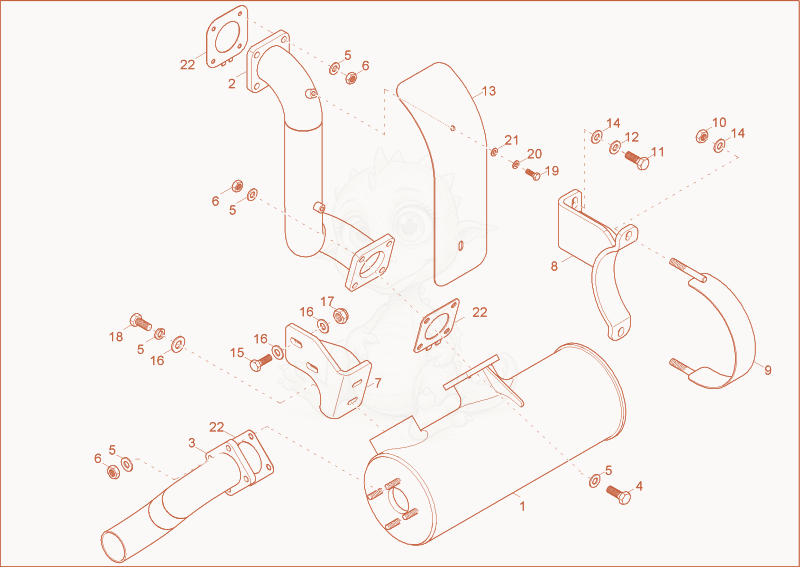

3501AB exhaust Diagram

Exploded parts diagram of the exhaust of a Wacker Neuson 3501AB, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000075119
    $921.99
    Exhaust 1000075119×1
  • 21000075074Not stocked
    exhaust manifold×1
  • 31000075077
    $35.31
    EXHAUST PIPE - 1000075077×1
  • 41000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×4
  • 51000015437Not stocked
    lock washer×18
  • 61000015427Not stocked
    hexagon nut×12
  • 71000075073Not stocked
    bracket exhaust×1
  • 81000075075Not stocked
    sliencer bracket×1
  • 91000075076
    $11.49
    exhaust strip - 1000075076×1
  • 101000015407Not stocked
    hexagon nut×2
  • 111000015346Not stocked
    hex screw×2
  • 121000015438Not stocked
    lock washer×2
  • 131000074679Not stocked
    heat protection plate×1
  • 141000094974
    $0.70
    washer M10-DIN134 - 1000094974×4
  • 151000085391
    $0.91
    hex screw - 1000085391×2
  • 161000015448Not stocked
    washer×6
  • 171000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×2
  • 181000015343Not stocked
    hex screw×2
  • 191000020553Not stocked
    hex screw×2
  • 201000015444Not stocked
    spring washer×2
  • 211000015430Not stocked
    washer×2
  • 221000124153
    $23.68
    exhaust gasket - 1000124153×3
