5001 diesel engine Diagram

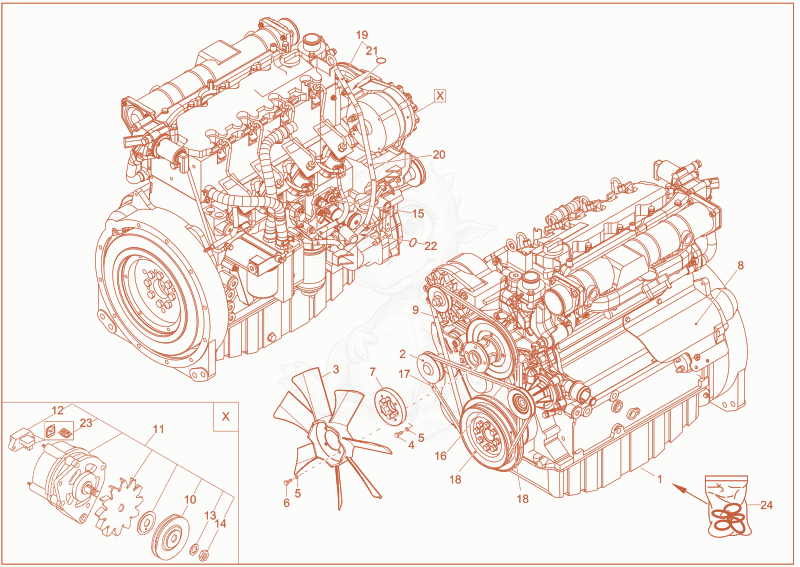

Exploded parts diagram of the diesel engine of a Wacker Neuson 5001, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000164550
$12,332.95
Engined2011L045001 Tier3475Kw 1000164550×1
21000182326
$307.67
tension roller - 1000182326×1
31000159314
$380.45
fan - 1000159314×1
41000013008Not stocked
hex screw×4
51000015437Not stocked
lock washer×8
61000019136Not stocked
hex screw×4
71000167352
$112.52
intermediate piece - 1000167352×1
81000164332
$1,067.26
Starter 1000164332×1
91000184417
$34.61
v-belt - 1000184417×1
101000164537
$57.90
pulley - 1000164537×1
111000164335
$398.15
Generator 1000164335×1
121000164541
$374.47
tension regulator - 1000164541×1
131000108846
$2.95
Spring ring - 1000108846×1
141000108921
$6.59
Hexagon nut - 1000108921×1
151000108972
$31.23
SWITCH-OIL PRESSURE - 1000108972×1
161000170506
$220.53
Temperature sensor - 1000170506×1
171000185165
$30.35
v-belt - 1000185165×1
181000108986
$216.16
pulley - 1000108986×2
191000164559
$138.82
oil dip stick - 1000164559×1
201000184347
$261.26
Guide tube - 1000184347×1
211000086405
$4.02
O-ring - 1000086405×1
221000135390
$1.57
seal ring - 1000135390×1
231000184613
$41.37
SEAL - 1000184613×1
241000087715
$96.28
seal kit - 1000087715×1
