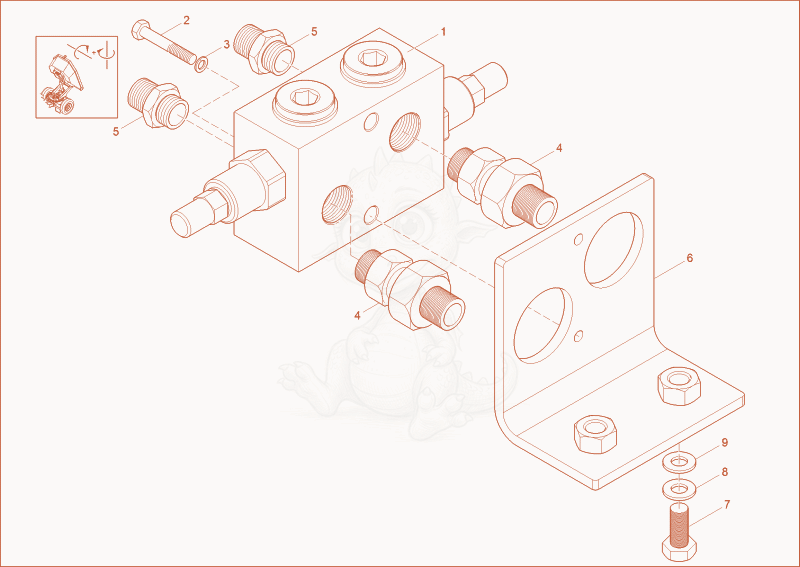

5001 SHOCK VALVE Diagram

Exploded parts diagram of the SHOCK VALVE of a Wacker Neuson 5001, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000115336
$380.53
Shockvalve 1000115336×1
21000085311
$0.73
hex screw - 1000085311×2
31000015444Not stocked
spring washer×2
41000293658
$128.11
RHV10PL1/2 ED DM=1,5MM - 1000293658×2
51000082844
$5.84
GE10LR1/2EDOMDA3C - 1000082844×2
61000124765
$26.44
BRACKET - 1000124765×1
71000015364Not stocked
hex screw×2
81000015438Not stocked
lock washer×2
91000094974
$0.70
washer M10-DIN134 - 1000094974×2
