BV50A-H

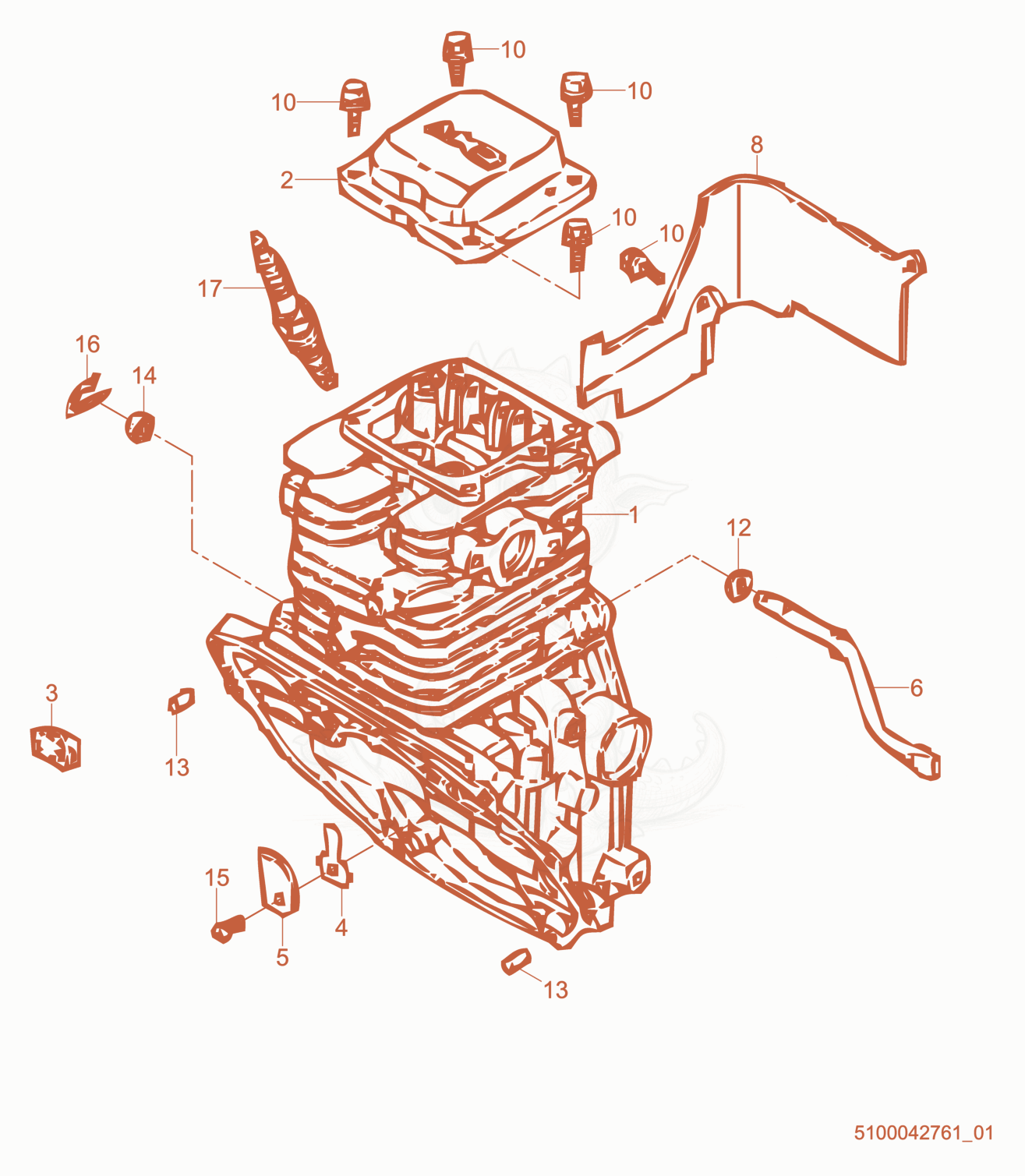

BV50A-H Cylinder cpl. Diagram
- CYLINDER - 5100042744×1
- COVER-HEAD - 5000217125×1
- FILTER-BREATHER - 5100042745×1
- Valve - 5000162139×1
- Plate - 5000162140×1
- SHAFT-GOVERNOR ARM - 5000217178×1
- Shroud - 5000217214×1
- BOLT-FLANGE 5X12 - 5000217244×5
- WASHER 5.2 X 9 - 5000217268×1
- OIL SEAL 5 X 11 X 5 - 5000217275×1
- OIL SEAL 5 X 11 X 5 - 5000217275×1
- SCREW-PAN (3X5) - 5000157555×1
- PIN-LOCK 6MM - 5000217281×2
- SPARK PLUG (R5HSB) - 5000157610×1
