BV50A-H

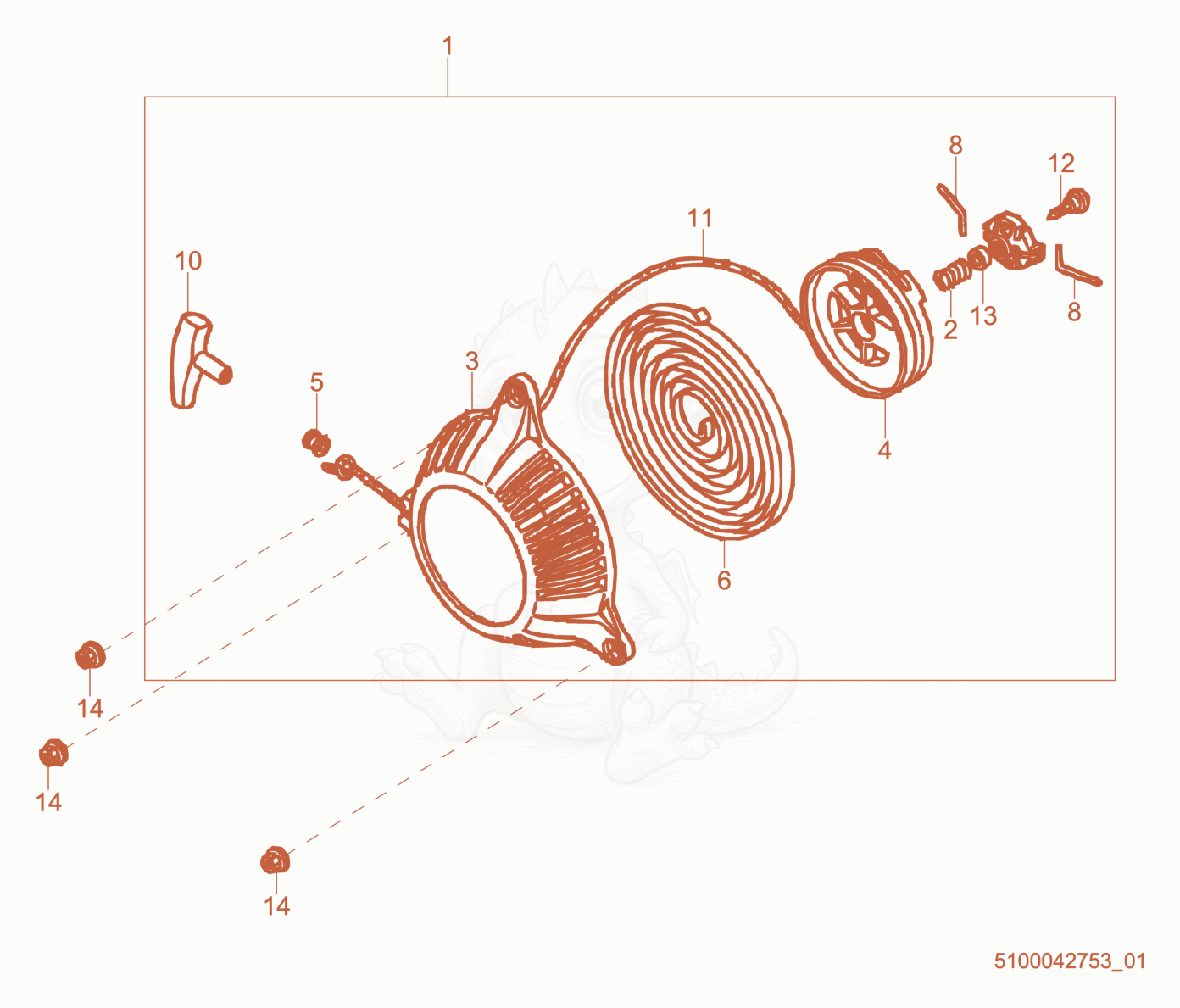

BV50A-H Starter cpl. Diagram
- STARTER ASSY-RECOIL - 5000217221×1
- SPRING-FRICTION - 5000217222×1
- HOUSING-RECOIL STARTER - 5000217224×1
- REEL-RECOIL STARTER - 5000217225×1
- GUIDE-ROPE - 5000157600×1
- SPRING-RECOIL STARTER - 5000217227×1
- PULLEY-RECOIL STARTER - 5000217229×1
- ARM-SWING - 5000217231×1
- HANDLE-RECOIL,STARTER - 5000157605×1
- ROPE-RECOIL STARTER - 5000217232×1
- SCREW-SETTING - 5000157608×1
- Collar - 5000217279×1
- NUT-FLANGE 5MM - 5000156650×3
