BV50A-H

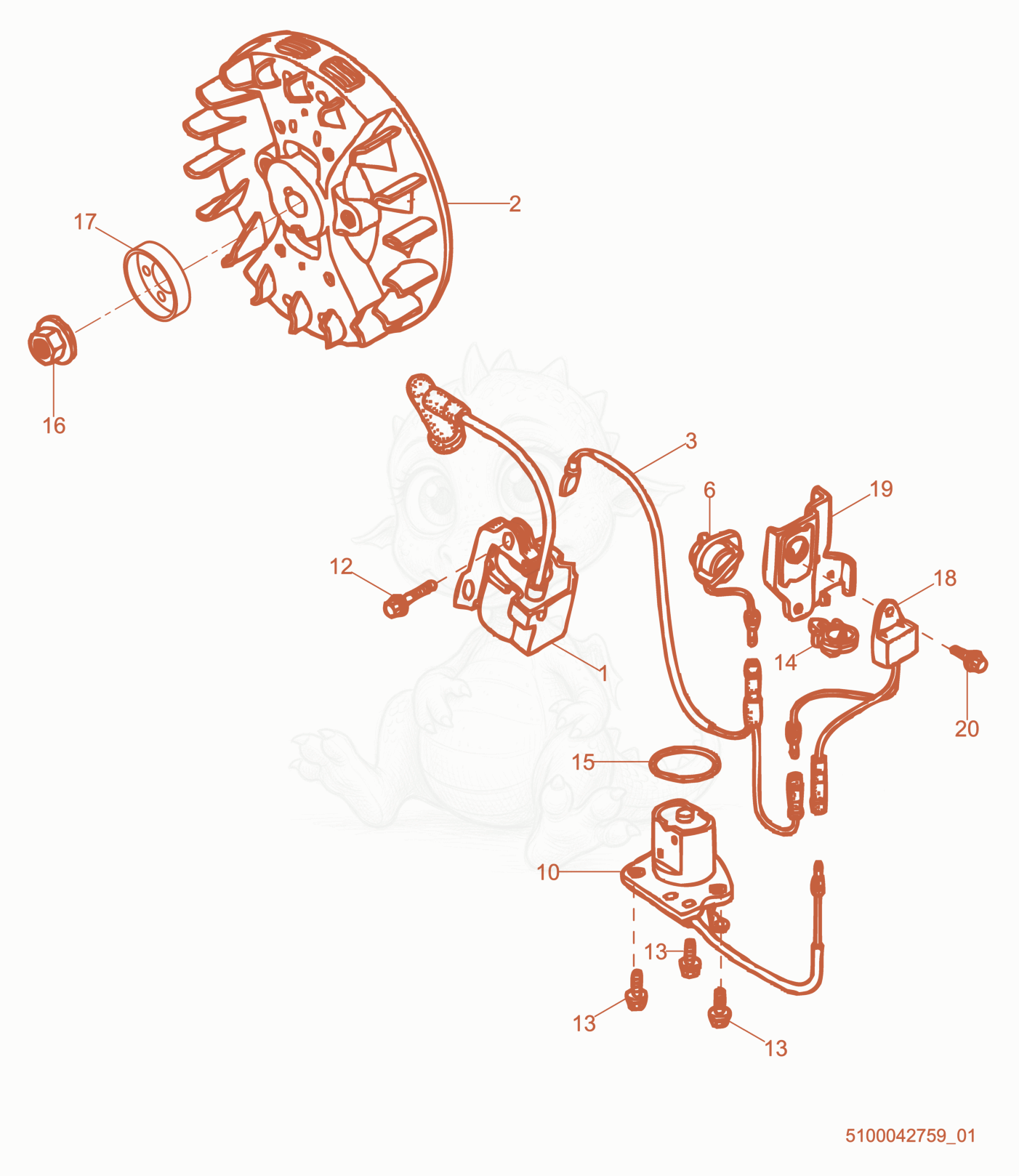

BV50A-H Flywheel/Ignition Coil Diagram

Exploded parts diagram of the Flywheel/Ignition Coil of a Wacker Neuson BV50A-H, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000217234
$78.56
COIL-ASSY-IGNIION - 5000217234×1
25000217237
$78.38
Flywheel - 5000217237×1
35000217239
$15.06
WIRE-STOP SWITCH - 5000217239×1
65000162079
$23.90
SWITCH-RUN/STOP - 5000162079×1
105000217241
$78.24
SWITCH ASSY-OIL LEVEL - 5000217241×1
125000217245
$1.97
BOLT-FLANGE 5 X 20 - 5000217245×1
135000217252
$1.89
BOLT-FLANGE 5 X 14 - 5000217252×3
145000076375
$4.13
Clip - 5000076375×1
155000072332
$4.18
NUT M10,HEX.FLANGE - 5000072332×1
155000217276
$6.08
O-RING 34.6 X 2.5 - 5000217276×1
165100042740
$2.38
NUT-FLANGE 5MM - 5100042740×1
175000217229
$15.88
PULLEY-RECOIL STARTER - 5000217229×1
185100005313
$83.75
Oil Sensor - 5100005313×1
195000217240
$15.60
BRACKET-STOP SWITCH - 5000217240×1
205000081750
$5.73
SCREW M6 X 8,FLANGED - 5000081750×1
