BV50A-H

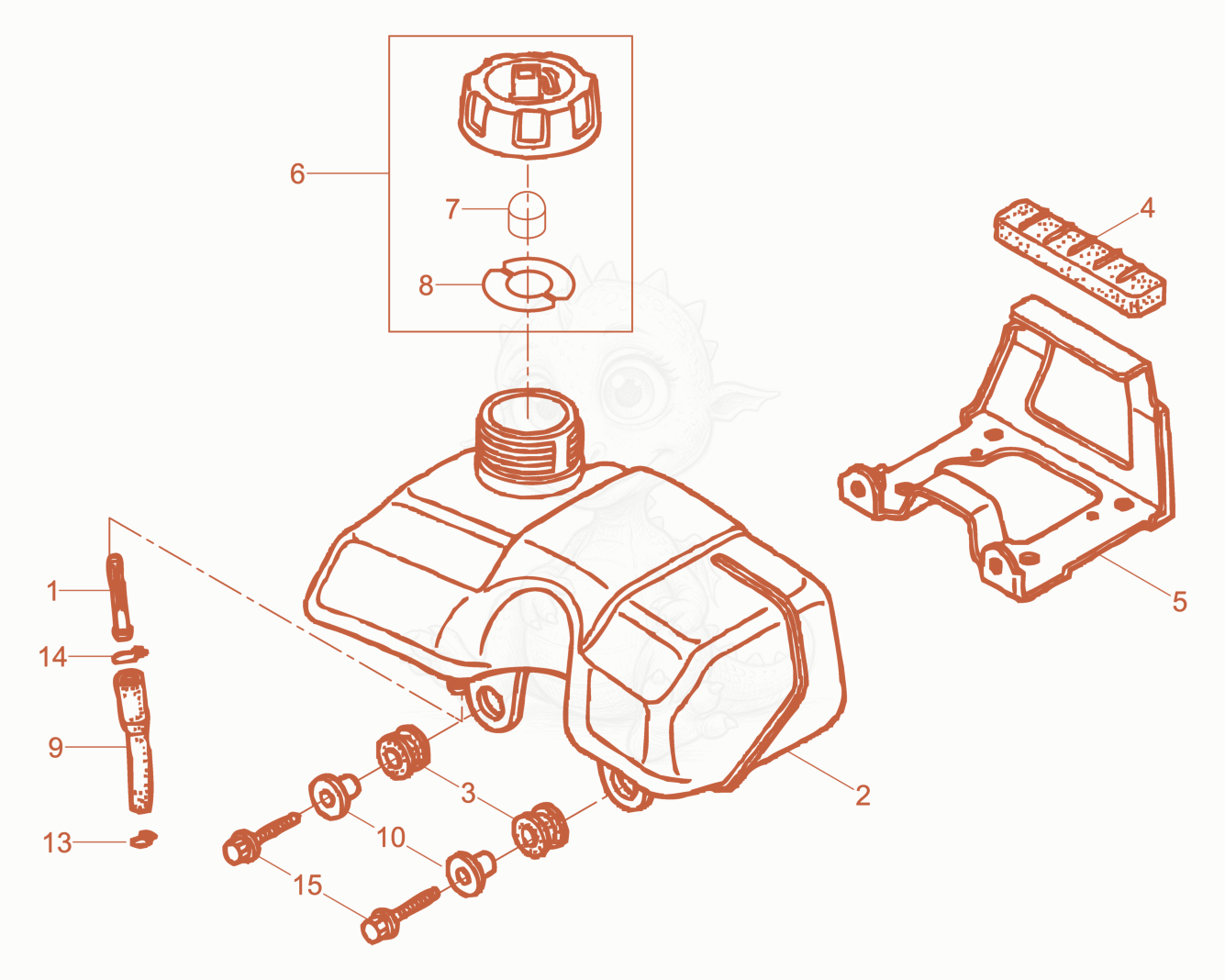

BV50A-H Fuel Tank cpl. Diagram
- FILTER-FUEL - 5000162108×1
- TANK-FUEL - 5100042684×1
- BRACKET-MOUNTING - 5000162110×2
- BRACKET-MOUNTING - 5000162111×1
- STAY-FUEL TANK - 5000217195×1
- CAP-FUEL TANK - 5000162113×1
- FILTER-FUEL CAP BREATHER - 5100042685×1
- GASKET-TANK CAP - 5100042687×2
- TUBE-FUEL - 5100042688×1
- RING-COLLAR - 5000162115×2
- CLAMP-TUBE - 5000208617×1
- CLIP-TUBE (10.5MM) - 5000151933×1
- BOLT-FLANGE 6 X 20 - 5000217286×2
