CRT60-74LX

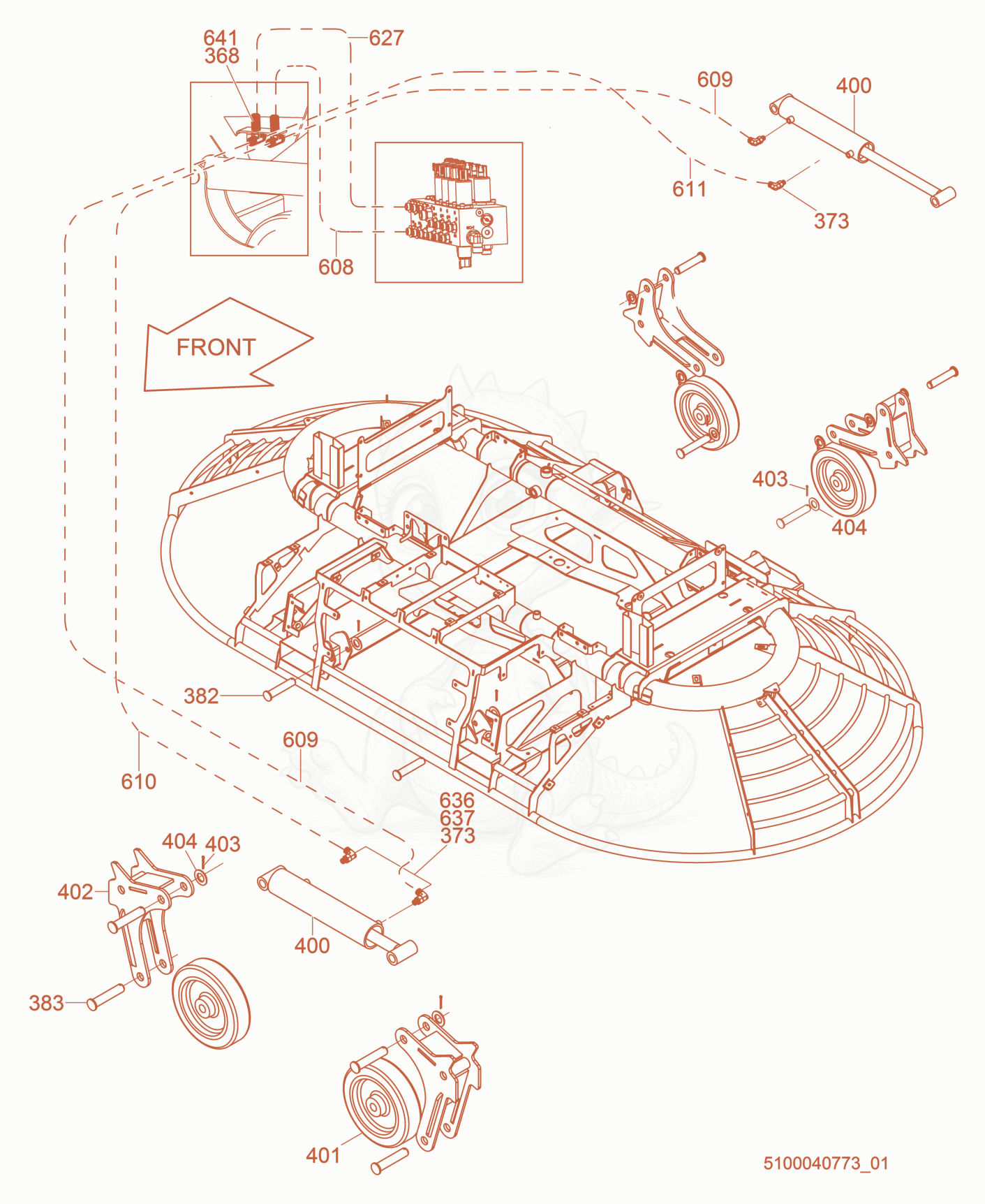

CRT60-74LX Wheel Kit Diagram

Exploded parts diagram of the Wheel Kit of a Wacker Neuson CRT60-74LX, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 3685000194024
    $12.76
    Tee-Union,Bulkhead - 5000194024×2
  • 3735000111285
    $4.64
    FITTING-HYD,SAE #4 90 ELBOW - 5000111285×4
  • 3825000187918
    $7.77
    PIN-CLEVIS,3/4X4 - 5000187918×4
  • 3835000187919
    $4.24
    PIN-CLEVIS,3/4X3 1/2 - 5000187919×8
  • 4005000187921
    $392.95
    CYLINDER-HYDRAULIC LIFT - 5000187921×2
  • 4015000187920
    $57.63
    WHEEL-CRT LIFT - 5000187920×4
  • 4025000181490
    $306.15
    BRACKET-WHEEL KIT ASSY P-5000176420 - 5000181490×4
  • 4035000116751
    $0.28
    PIN-COTTER 1/8 X 1-1/2 - 5000116751×12
  • 4045000010616
    $2.02
    WASHER B21 FLAT - 5000010616×12
  • 6085000193986
    $34.07
    HOSE - WHEEL KIT SUPPLY EXT. - 5000193986×1
  • 6095000193987
    $30.87
    HOSE - WHEEL KIT REAR EXT/FRONT RET - 5000193987×2
  • 6105000193988
    $28.03
    HOSE - WHEEL KIT EXTENDED FRONT - 5000193988×1
  • 6115000193989
    $47.40
    HOSE - WHEEL KIT RETRACT REAR - 5000193989×1
  • 6275000194025
    $40.28
    HOSE - CRT WHEEL KIT RETRACT - 5000194025×1
  • 6365000112267
    $0.09
    O-RING .30 X .07 #4 ORFS 2-011 - 5000112267×4
  • 6375000080730
    $0.19
    O-RING .351 X.072 DURO90 3-904 - 5000080730×4
  • 6415000080731
    $0.26
    O-RING .468 X.078 DURO90 3-906 - 5000080731×6
