CRT60-74LX

CRT60-74LX Frame cpl. Diagram

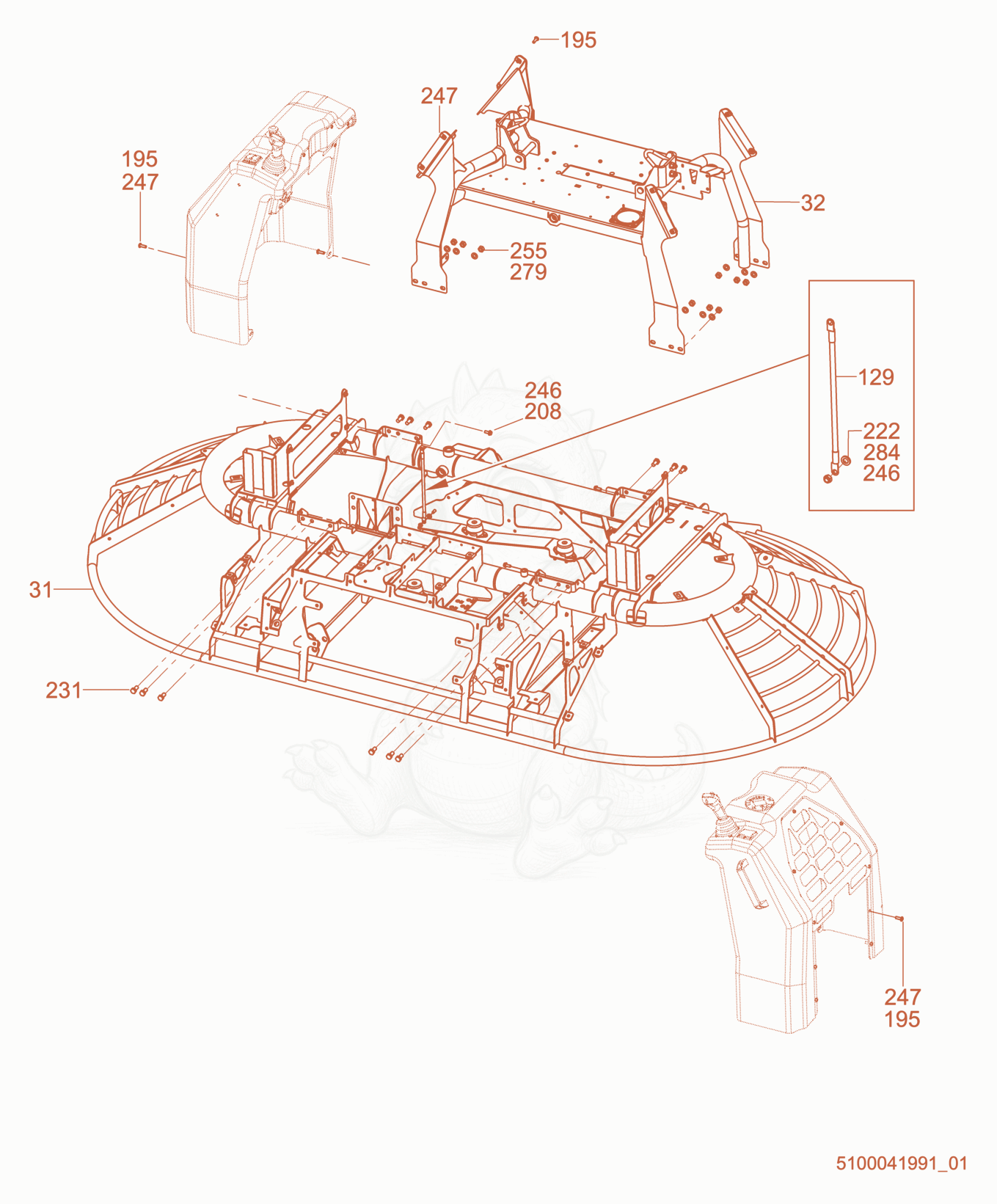

Exploded parts diagram of the Frame cpl. of a Wacker Neuson CRT60-74LX, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 315200015860Not stocked
    Frame×1
  • 325000180594
    $1,846.65
    FRAME-UPPER,CRT60 P-5000176420 - 5000180594×1
  • 1295000118110
    $8.48
    CABLE-BATTERY,NEG,13 - 5000118110×1
  • 1955000163946
    $0.33
    SCREW M8X25 BTN HD BL ZN 10.9 - 5000163946×11
  • 2085000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×4
  • 2225000012362
    $0.40
    SCREW M8 X 20 HX.HD. - 5000012362×1
  • 2315000013002
    $0.37
    SCREW M12 X 25 HX.HD. - 5000013002×12
  • 2465000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 2475000110969
    $0.65
    NUT-LOCK,M8 CLIP - 5000110969×15
  • 2555000177630
    $1.31
    NUT M12,CLASS 10,MECH.ZN - 5000177630×12
  • 2795000119289
    $0.33
    WASHER 13 FLAT TP200 - 5000119289×12
  • 2845000151475
    $0.47
    WASHER-LK M10,SER-INT/EXT-BN783-(A2K) - 5000151475×1
