CRT60-74LX

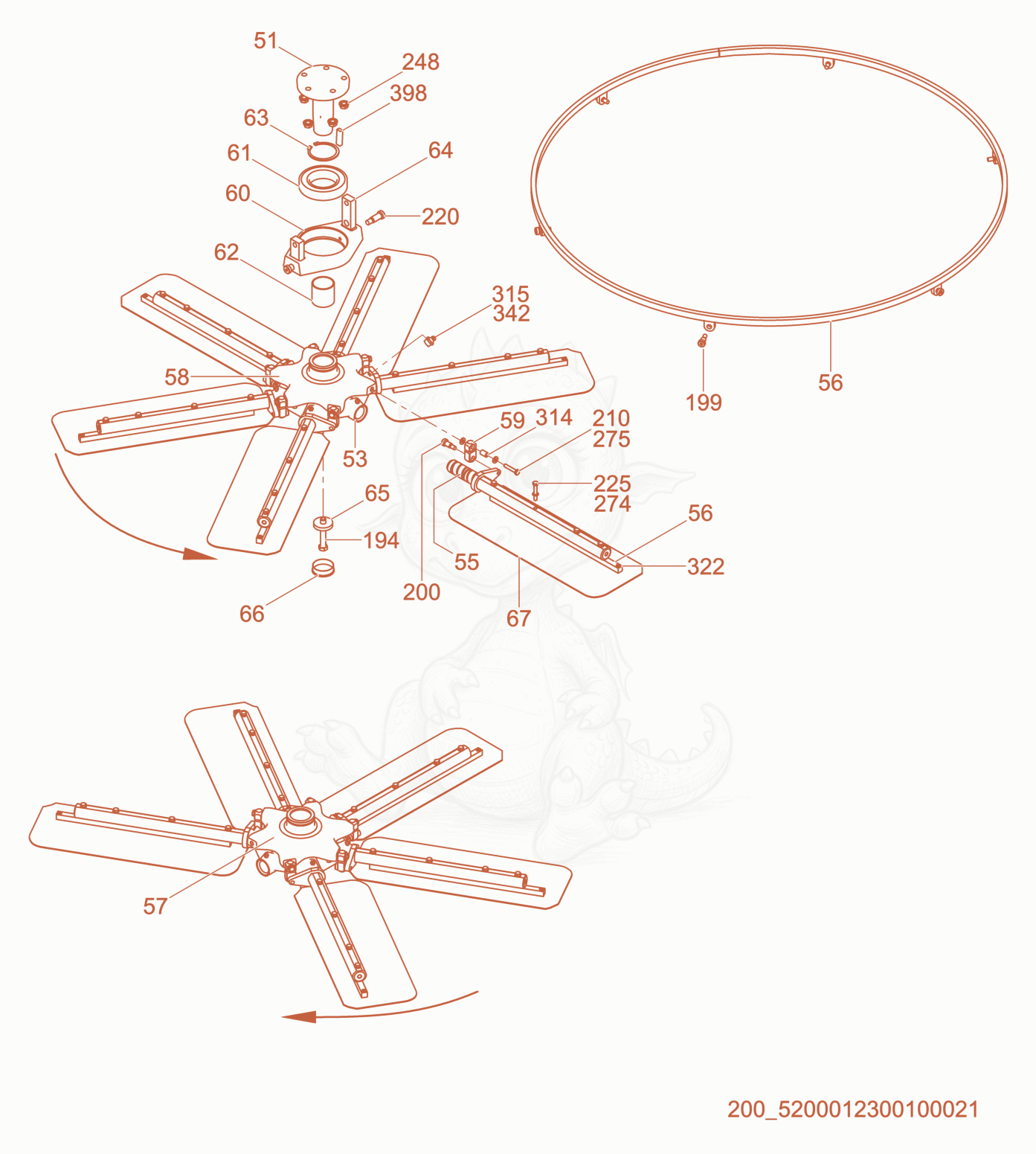

CRT60-74LX Blade Mechanism-Right & Left Diagram

Exploded parts diagram of the Blade Mechanism-Right & Left of a Wacker Neuson CRT60-74LX, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 515000182640
    $443.46
    SHAFT-TAPER STUB ADAPTER - 5000182640×1
  • 535100025349
    $814.69
    Kit-CRT60 Spider Hub - 5100025349×1
  • 555000181068
    $922.83
    SHAFT ASSEMBLY P-5000176420 - 5000181068×6
  • 565000163239
    $401.99
    RING-STABILIZER,CRT60 P-5000176420 - 5000163239×1
  • 575000163217
    $452.16
    RING-LIFT,LT - 5000163217×1
  • 585000163218
    $331.71
    RING-LIFT,RT - 5000163218×1
  • 595000116898
    $66.01
    LINK-ADJUSTABLE(CRT) - 5000116898×6
  • 605000163232
    $368.97
    HOLDER-BEARING - 5000163232×1
  • 615000180042
    $54.77
    BEARING-BALL - 5000180042×1
  • 625000180043
    $36.66
    BUSHING-LIFT RING - 5000180043×1
  • 635000180044
    $2.54
    RETAINING RING-EXT - 5000180044×1
  • 645000180077
    $38.22
    LINK-FLOAT PITCH P-5000176420 - 5000180077×2
  • 655000182642
    $18.75
    WASHER-HUB - 5000182642×1
  • 665000180086
    $0.85
    PLUG-CAP,EP-36 - 5000180086×1
  • 675000183277
    $421.51
    BLADE-KIT,4 COMBO,60 - 5000183277×3
  • 1945200003321
    $4.37
    Screw M14 X 90, HX HD, 10.9 - 5200003321×2
  • 1995000073458
    $1.23
    SCREW 1/2 x 1/2,SHOULDER - 5000073458×6
  • 2005000116752
    $2.92
    SCREW 1/2X3/4X1-3/8 SHOULD,SOC - 5000116752×6
  • 2105000117969
    $0.54
    SCREW M8 X 45 10.9 HXHD - 5000117969×6
  • 2205000193973
    $3.31
    Screw-Shldr,5/8-1.25,Soc.Hd.Alloy St. - 5000193973×2
  • 2255000025550
    $4.27
    SCREW 5/16-18 X 2,HX.HD. - 5000025550×24
  • 2485000186621
    $2.90
    Nut, Flange 1/2-20 Hex Grade 8 - 5000186621×5
  • 2745000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×18
  • 2755000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×12
  • 2795000119289
    $0.33
    WASHER 13 FLAT TP200 - 5000119289×5
  • 3145000188369
    $79.31
    SPACER-LIFT RING - 5000188369×6
  • 3155000036607
    $0.58
    FITTING-GREASE AM10 - 5000036607×6
  • 3225000074985
    $0.18
    PLUG-CAP #1,TAPERED,PLASTC,RED - 5000074985×6
  • 3425000155804
    $0.14
    CAP-GREASE FITTING,RED - 5000155804×6
  • 3985000188123
    $15.95
    Key-9x14,Heat Treated - 5000188123×1
