CRT60-74LX

CRT60-74LX Pump cpl. Diagram

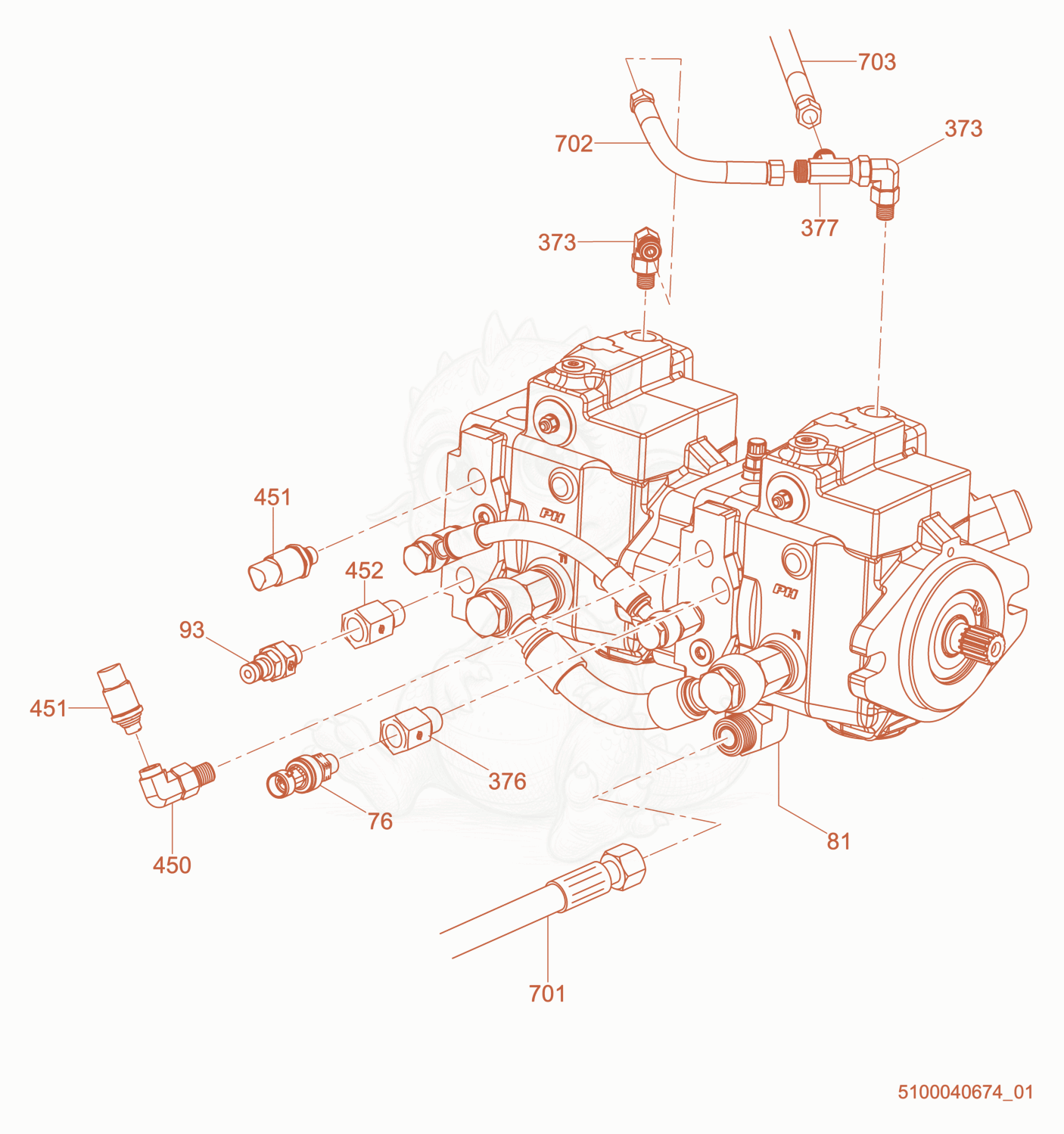

Exploded parts diagram of the Pump cpl. of a Wacker Neuson CRT60-74LX, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 761000342842Not stocked
    Valve×1
  • 815000155049
    $17.60
    FITTING-ELBOW #12 ORB-#10 ORFS - 5000155049×1
  • 935200005335Not stocked
    Adapter fitting×1
  • 3735000111285
    $4.64
    FITTING-HYD,SAE #4 90 ELBOW - 5000111285×2
  • 3765100039629
    $4.26
    FITTING-STRT;REDUCER SAE#6 to SAE#4 - 5100039629×1
  • 3775000111280
    $19.56
    FITTING-HYD,SAE#4 SWVL RUN TEE - 5000111280×1
  • 4505100041297
    $12.86
    FITTING-HYD,SAE #6 Male #6 Female 90 elb - 5100041297×1
  • 4515100041296
    $143.86
    Transducer, Pressure 6000 psi - 5100041296×2
  • 4525100041298
    $40.72
    Fitting,Straight #6 Male to #6 Female - 5100041298×1
  • 7015100038018
    $34.09
    Hose-Filter to Pump Charge Port - 5100038018×1
  • 7025100038015
    $15.12
    HOSE - CONTROL LINE PUMP TO PUMP - 5100038015×1
  • 7035100038016
    $17.70
    HOSE - CONTROL LINE PUMP TO VALVE - 5100038016×1
