CRT60-74LX

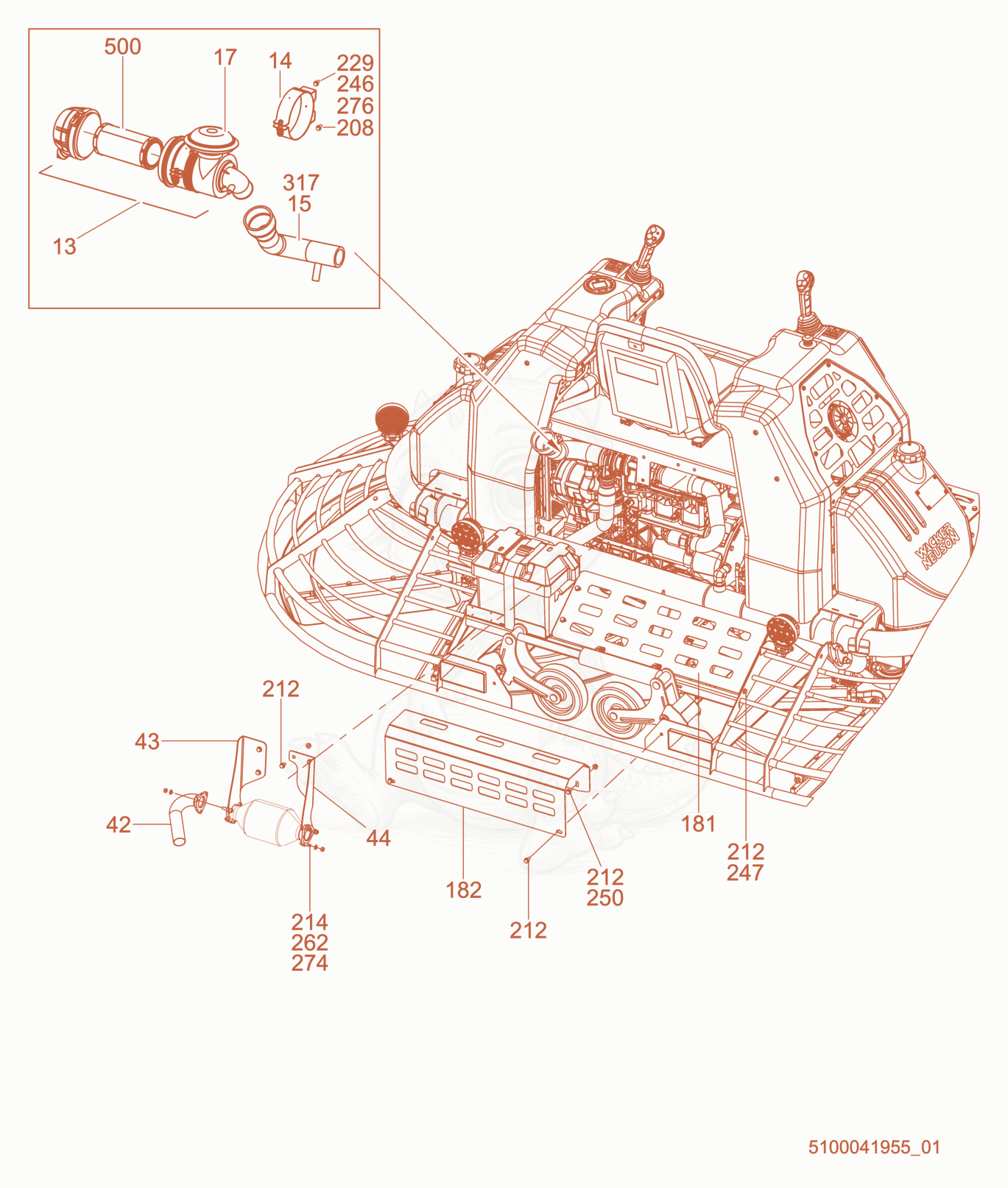

CRT60-74LX Air cleaner/Rear panel Diagram

Exploded parts diagram of the Air cleaner/Rear panel of a Wacker Neuson CRT60-74LX, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 135000193970
    $159.09
    Filter-Air Cleaner - 5000193970×1
  • 145000193971
    $49.83
    Bracket-Air Cleaner - 5000193971×1
  • 155100038064
    $119.65
    Hose-Air Intake,CRT60 T4, P3 - 5100038064×1
  • 175000193972
    $85.64
    Hood-Weather - 5000193972×1
  • 425200012503Not stocked
    Pipe, exhaust×1
  • 435100038066
    $104.04
    Bracket-Seat DOC Mnt, P3 P-5000176420 - 5100038066×1
  • 445100038067
    $119.65
    Bracket-DOC Mount, P3 P-5000176420 - 5100038067×1
  • 1815200003865
    $68.25
    Plate-Filter Shield P-5000176420 - 5200003865×1
  • 1825200003866
    $459.69
    Plate-Wheel Lift Shield P-5000176420 - 5200003866×1
  • 2085000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×1
  • 2125000079363
    $0.36
    SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×11
  • 2145000011541
    $1.06
    SCREW M8 X 30 SOC.HD. - 5000011541×6
  • 2295000085957
    $1.51
    SCREW M8 X 30,HX.HD,SER.FLG - 5000085957×1
  • 2465000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×2
  • 2475000110969
    $0.65
    NUT-LOCK,M8 CLIP - 5000110969×1
  • 2505000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
  • 2625000010882
    $0.05
    NUT M8 8,HEX - 5000010882×6
  • 2765000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×2
  • 3175000112287
    $1.99
    CLAMP-THREADED,1.56-2.50 - 5000112287×1
  • 5005200006730
    $60.93
    ELEMENT-AIR CLEANER - 5200006730×1
