CRT60-74LX

CRT60-74LX Battery / Light Diagram

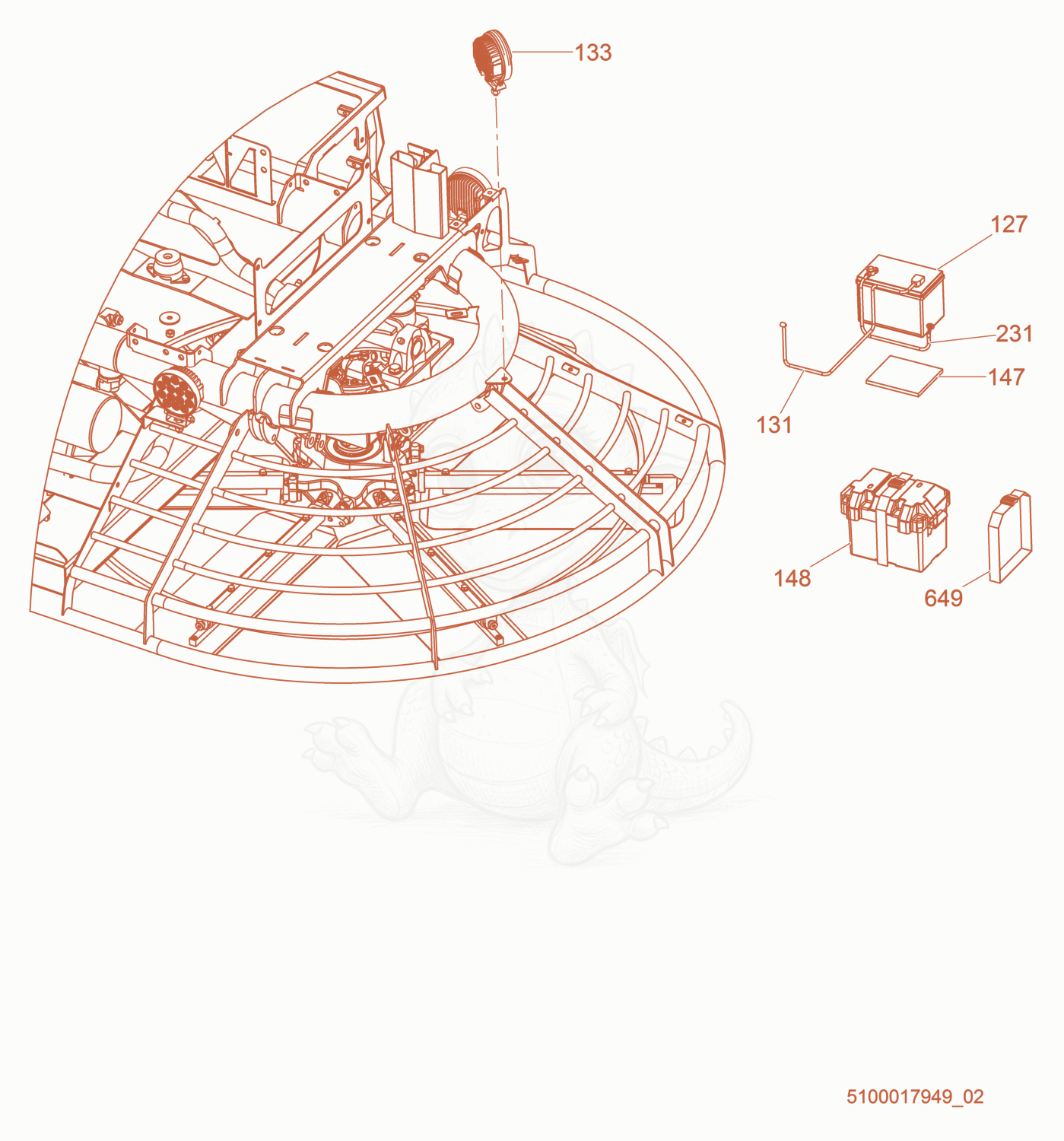

Exploded parts diagram of the Battery / Light of a Wacker Neuson CRT60-74LX, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1275000153757
    $332.74
    BATTERY-WET,GR 24 - 5000153757×1
  • 1305000165248
    $17.26
    CABLE-BATTERY,NEG,16 - 5000165248×1
  • 1315000115597
    $34.30
    CABLE-BATTERY,POSITIVE - 5000115597×1
  • 1335100024850
    $83.85
    LIGHT-WORK, LED - 5100024850×6
  • 1475000081528
    $18.43
    PAD-RUBBER,BATTERY CUSHION - 5000081528×1
  • 1485000152774
    $26.76
    BOX-BATTERY,GROUP 24 - 5000152774×1
  • 2315000013002
    $0.37
    SCREW M12 X 25 HX.HD. - 5000013002×1
  • 6495000152775
    $33.76
    STRAP-BATTERY HOLD DOWN - 5000152775×1
