CUB 700GM HEATER

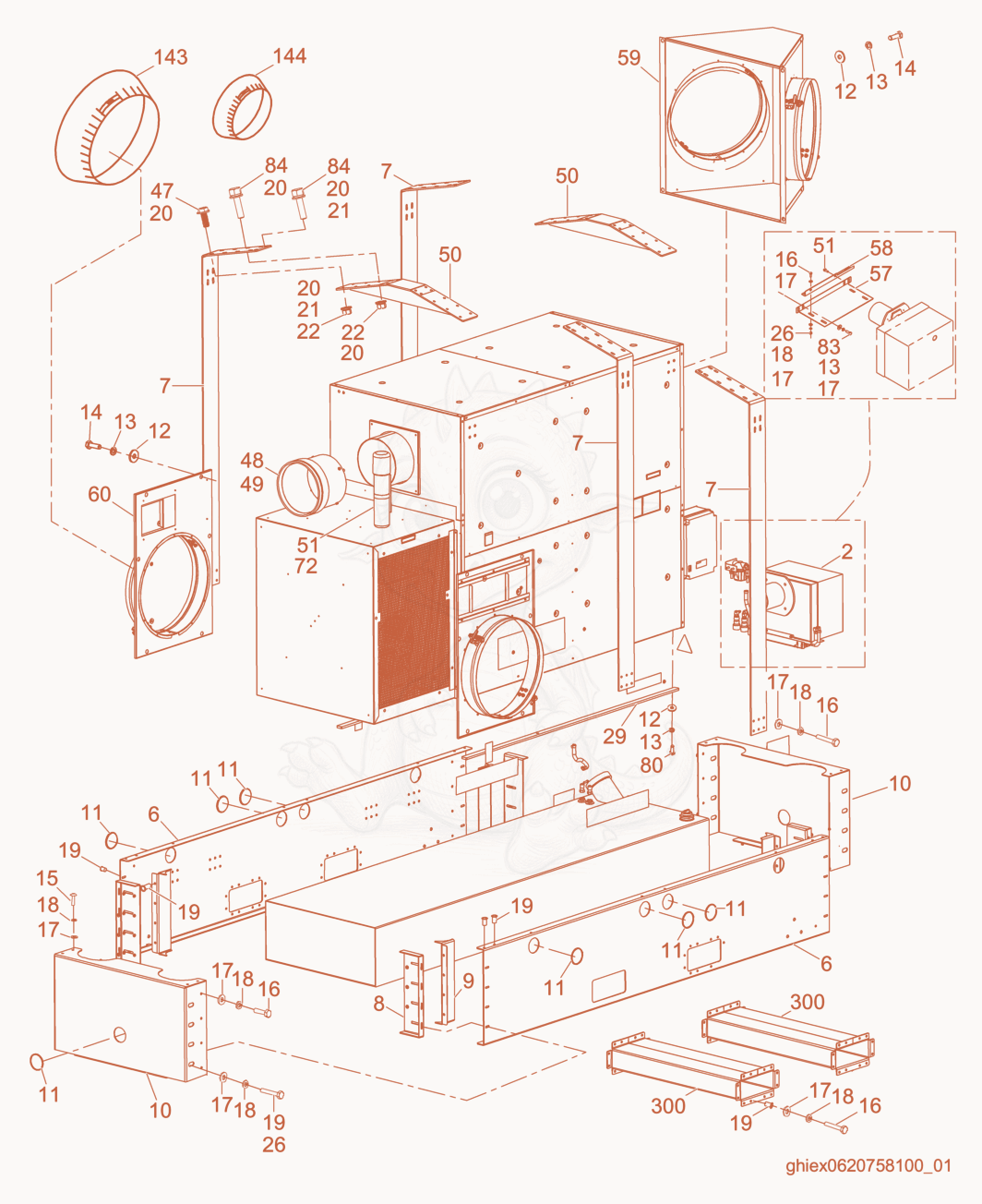

CUB700GM Machine cpl. Diagram
- 25000167599Not stockedBurner×1
- 65000170089Not stockedSide rail×2
- 75000173648Not stockedStrap×4
- 85000170127Not stockedPositioning angle×4
- 95000170092Not stockedCapturing angles×4
- 105000176410Not stockedEnd cap×2
- 115000170106Not stockedPlug×7
- 125000170095Not stockedWasher×42
- 135000170096Not stockedWasher×42
- 145000170094Not stockedBolt×34
- 155000167857Not stockedScrew×4
- 165000167721Not stockedBolt×124
- 175000167729Not stockedFlat washer×145
- 185000167733Not stockedLock washer×127
- 195000167700Not stockedThreaded insert×112
- 205000167730Not stockedFlat washer×84
- 215000167735Not stockedLock washer×40
- 225000167691Not stockedNut×42
- 265000167690Not stockedNut×19
- 295000170241Not stockedSpacer×2
- 475000167705Not stockedBolt×8
- NLA CONNECTOR-10 DRAFT HOOD - 5000170484×1
- 495000170485Not stockedScrew×4
- 505000170487Not stockedBrace×2
- 515000167793Not stockedScrew×9
- 575000171335Not stockedBracket×1
- 585000171336Not stockedBracket×1
- 595000169332Not stockedDuct adapter kit×1
- 605000172052Not stockedDuct Adapter Kit×2
- 725000168721Not stockedManual holder×1
- 805000179273Not stockedScrew×6
- 835000167704Not stockedBolt×2
- 845000167719Not stockedBolt×32
- 1435000179339Not stockedVinyl cover, 20in×1
- 3005000170126Not stockedLifting tube×2
