CUB 700GM HEATER

CUB700GM Fuel System Diagram

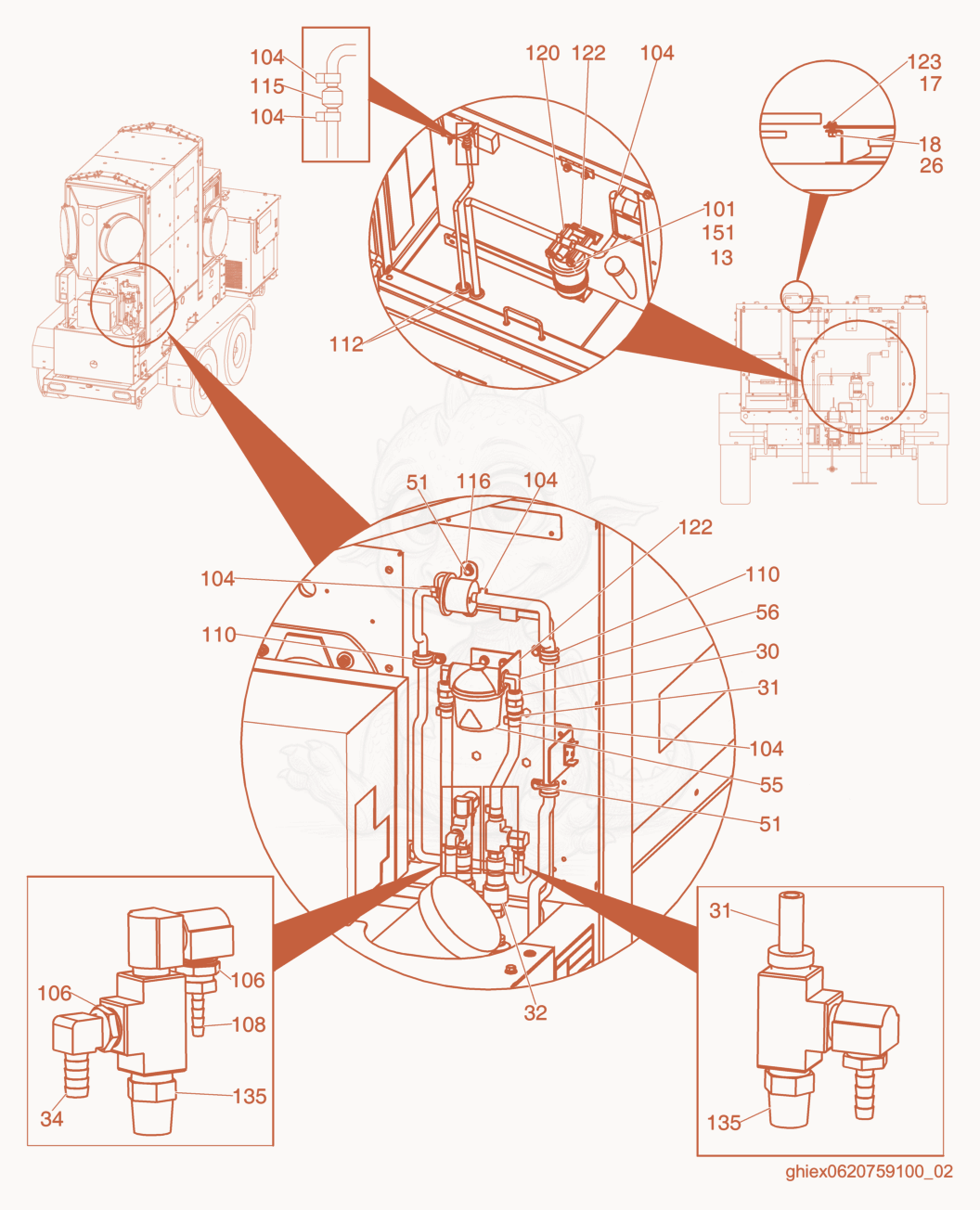

Exploded parts diagram of the Fuel System of a Wacker Neuson CUB700GM, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 135000170096Not stocked
    Washer×2
  • 175000167729Not stocked
    Flat washer×1
  • 185000167733Not stocked
    Lock washer×1
  • 265000167690Not stocked
    Nut×1
  • 305000170150Not stocked
    Coupling×2
  • 315000168595Not stocked
    Hose barb×3
  • 325000168010Not stocked
    Quick coupler×2
  • 345000168279Not stocked
    Barbed hose fitting×3
  • 515000167793Not stocked
    Screw×5
  • 555000170333Not stocked
    Heated filter×1
  • 565000170677Not stocked
    Elbow×2
  • 1015000180569Not stocked
    Hexagonal head cap screw×2
  • 1045000168334Not stocked
    Clamp×6
  • 1065000168034Not stocked
    Bushing×1
  • 1085000168285Not stocked
    Hose barb×1
  • 1105000180573Not stocked
    Clamp×3
  • 1125000168141Not stocked
    Grommet×4
  • 1155000180585Not stocked
    Check valve×1
  • 1165000180586Not stocked
    Fuel pump×1
  • 1205000176749Not stocked
    Fuel filter cpl.×1
  • 1225000180211Not stocked
    Filter bracket×1
  • 1235000180574Not stocked
    Screw×1
  • 1515000167731Not stocked
    Flat washer×2
