CUB 700GM HEATER

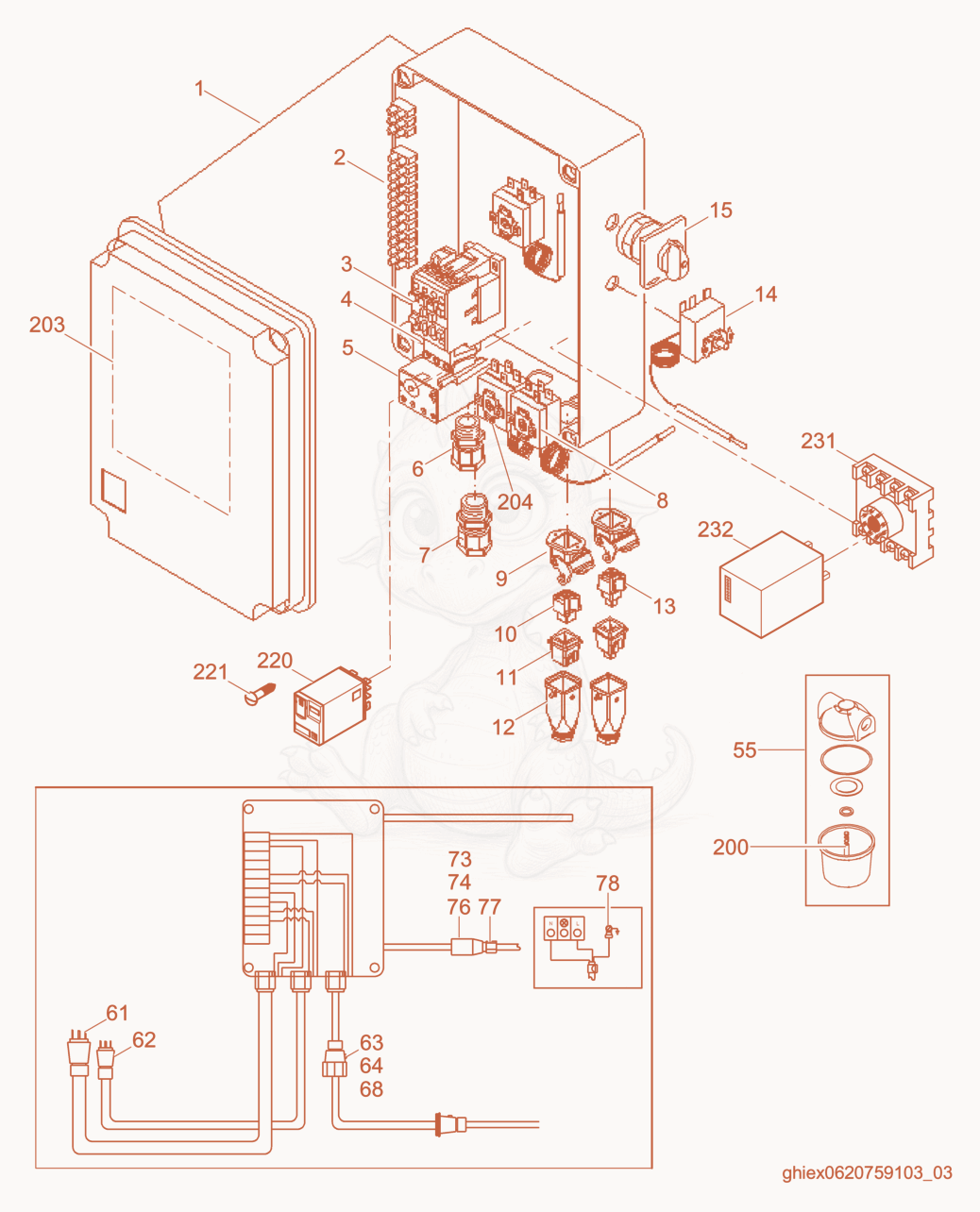

CUB700GM Control Box cpl. Diagram

Exploded parts diagram of the Control Box cpl. of a Wacker Neuson CUB700GM, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000172367Not stocked
    Box-control×1
  • 25000171906Not stocked
    Terminal board×1
  • 35000171907Not stocked
    Switch×1
  • 45000172370Not stocked
    Connector×1
  • 55000170331Not stocked
    Thermal relay×1
  • 65000172369Not stocked
    Strain relief×1
  • 75000172368Not stocked
    Strain relief×1
  • 85000182659Not stocked
    Switch×1
  • 95000170312Not stocked
    Socket×2
  • 105000170313Not stocked
    Socket×1
  • 115000170389Not stocked
    Plug×1
  • 135000171908Not stocked
    Socket×1
  • 145000170311Not stocked
    Safety switch×1
  • 155000170310Not stocked
    Switch×1
  • 635000172560Not stocked
    Receptacle (socket)×1
  • 645000172562Not stocked
    Plug×1
  • 675000172561Not stocked
    Plug×1
  • 685000172566Not stocked
    Strain relief kit×1
  • 735000170387Not stocked
    Plug-hood×1
  • 745000170390Not stocked
    Kit-conversion×1
  • 765000173205Not stocked
    Plug×1
  • 775000170386Not stocked
    Grommet×1
  • 785000166511Not stocked
    Terminal×3
  • 1265000166519Not stocked
    Plug×1
  • 2005000178506Not stocked
    Heated filter×1
  • 2045000182660Not stocked
    Switch×1
  • 2205000183103Not stocked
    Relay×1
  • 2215000183130Not stocked
    Pan head screw×2
  • 2315000183248Not stocked
    Socket×1
  • 2325000183247Not stocked
    Timer relay×1
