CUB 700GM HEATER

CUB700GM Labels Diagram

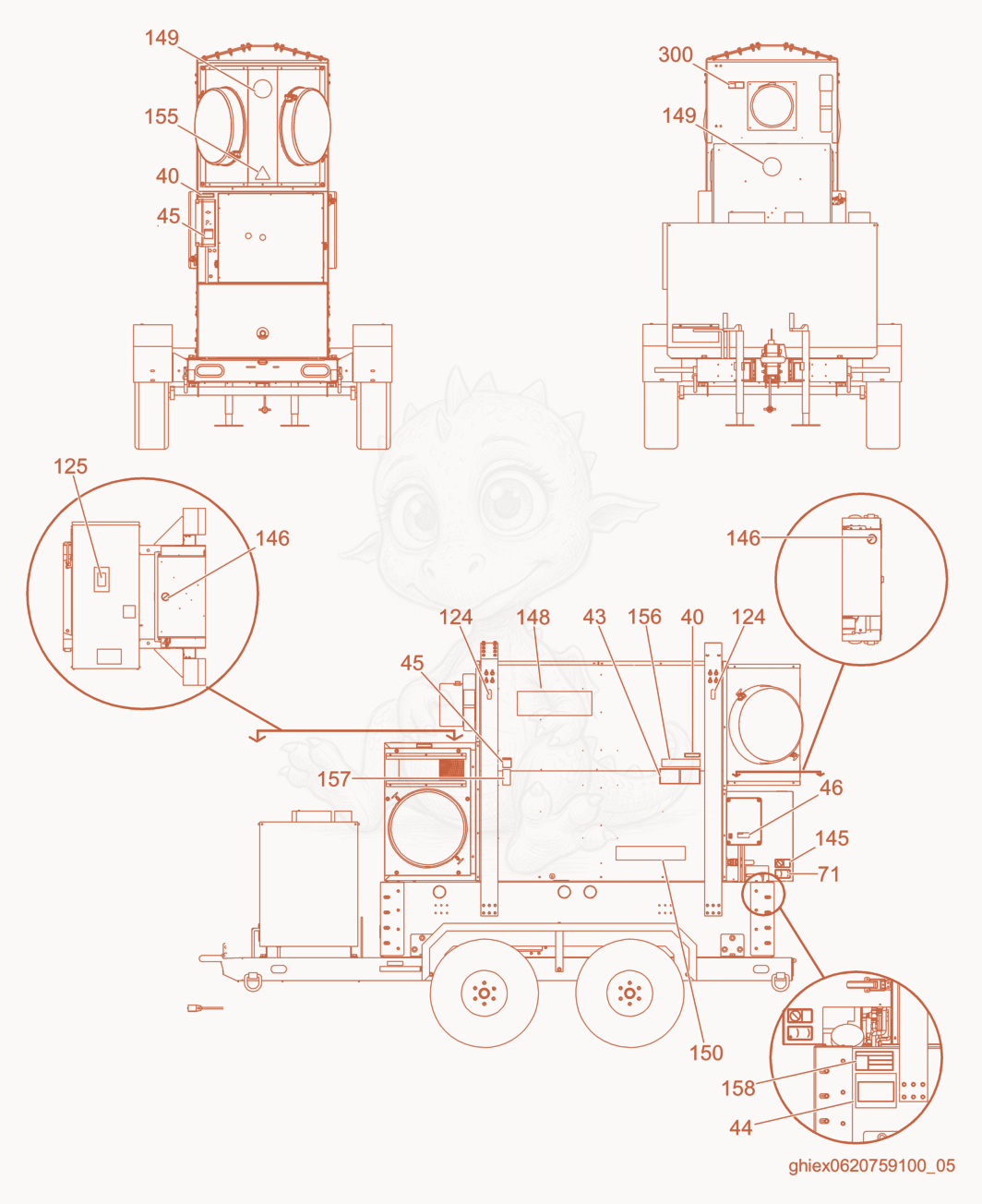

Exploded parts diagram of the Labels of a Wacker Neuson CUB700GM, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 405000170255Not stocked
    Label-caution×4
  • 435000173263Not stocked
    Label-operation×1
  • 445000168045Not stocked
    Label-diesel fuel selection×1
  • 455000170946Not stocked
    Label-disengage heater×3
  • 465000168211Not stocked
    Label-hazardous voltage×1
  • 715000172641Not stocked
    Label-burner cover lift×2
  • 1455000179084Not stocked
    Label×2
  • 1465000179085Not stocked
    Label-no step×2
  • 1485000222105
    $15.69
    LABEL-LOGO 160MM,RAL 7043 - 5000222105×2
  • 1495000222087
    $4.28
    LABEL-WN SYMBOL 120MM DIA. - 5000222087×2
  • 1505000176669Not stocked
    Label-logo×2
  • 1555000168893Not stocked
    Label-hot surface×1
  • 1565000177371Not stocked
    Label-warning×1
  • 1575000177370Not stocked
    Label-warning×2
  • 1585000172224Not stocked
    Label-fuel×1
  • 3005000168208Not stocked
    Label-fumes×1
