DT05e

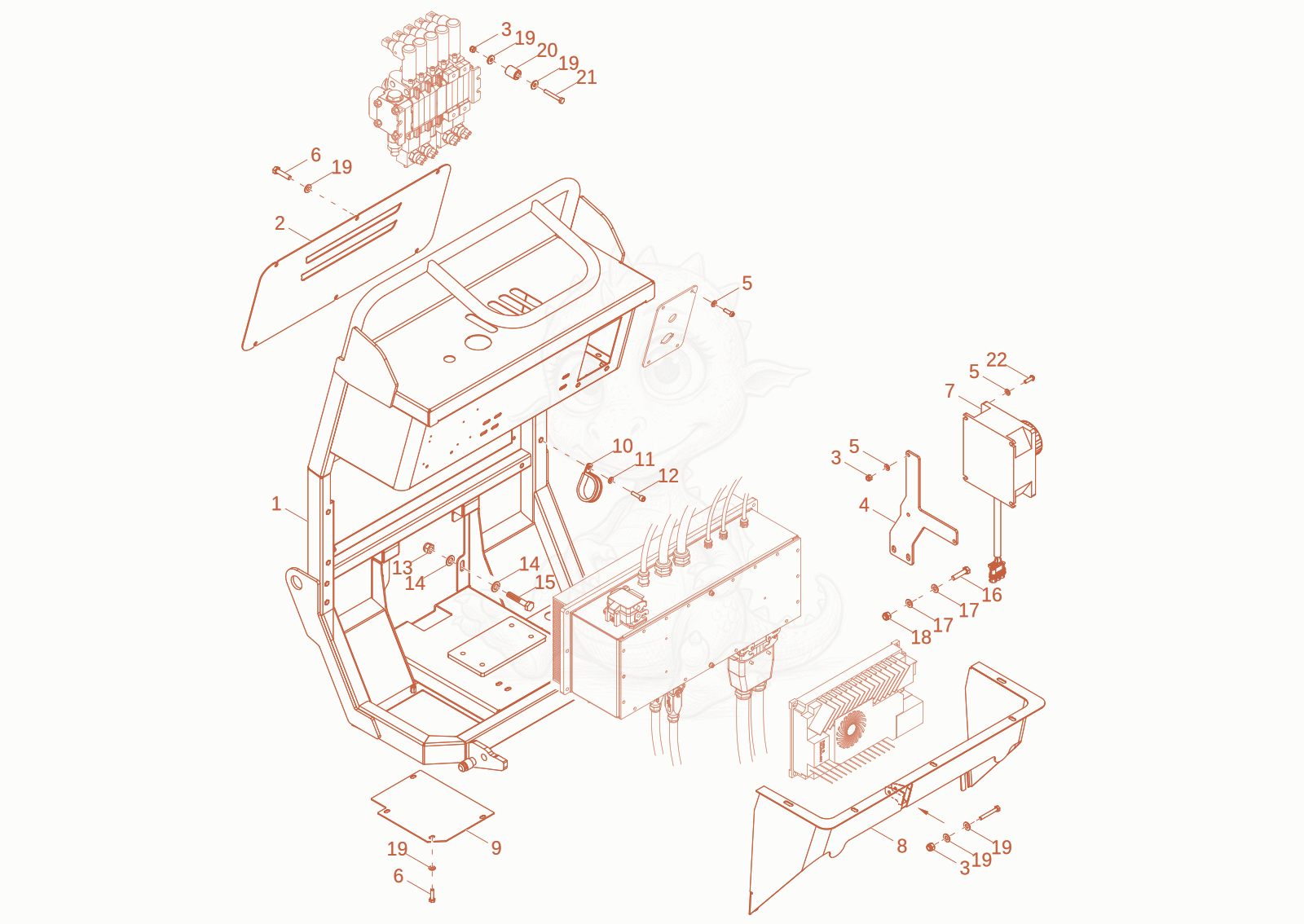

DT05E pilot stand Diagram

Exploded parts diagram of the pilot stand of a Wacker Neuson DT05E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000515117Not stocked
    pilot stand×1
  • 21000515118Not stocked
    cover plate×1
  • 31000269276
    $1.24
    HEXAGON NUT - 1000269276×7
  • 41000515157Not stocked
    bracket×1
  • 51000015430Not stocked
    u-washer×8
  • 61000018400Not stocked
    hex screw×10
  • 71000388128
    $606.99
    socket - 1000388128×1
  • 81000515113Not stocked
    cover×1
  • 91000515114Not stocked
    cover×1
  • 101000278253
    $10.53
    COLLAR - 1000278253×1
  • 111000015444Not stocked
    spring washer×1
  • 121000085384
    $0.84
    6-Point screw M6x25-8.8 A2C-DIN933 - 1000085384×1
  • 131000269291
    $1.55
    HEXAGON NUT - 1000269291×4
  • 141000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×8
  • 151000015364Not stocked
    hex screw×4
  • 161000085391
    $0.91
    hex screw - 1000085391×2
  • 171000015431Not stocked
    washer×4
  • 181000269279
    $2.48
    hexagon nut - 1000269279×2
  • 191000383668
    $1.24
    washer - 1000383668×20
  • 201000515158Not stocked
    sleeve×4
  • 211000085310
    $0.78
    hex screw - 1000085310×5
  • 221000273297
    $1.55
    SCREW - 1000273297×6
