DT05e

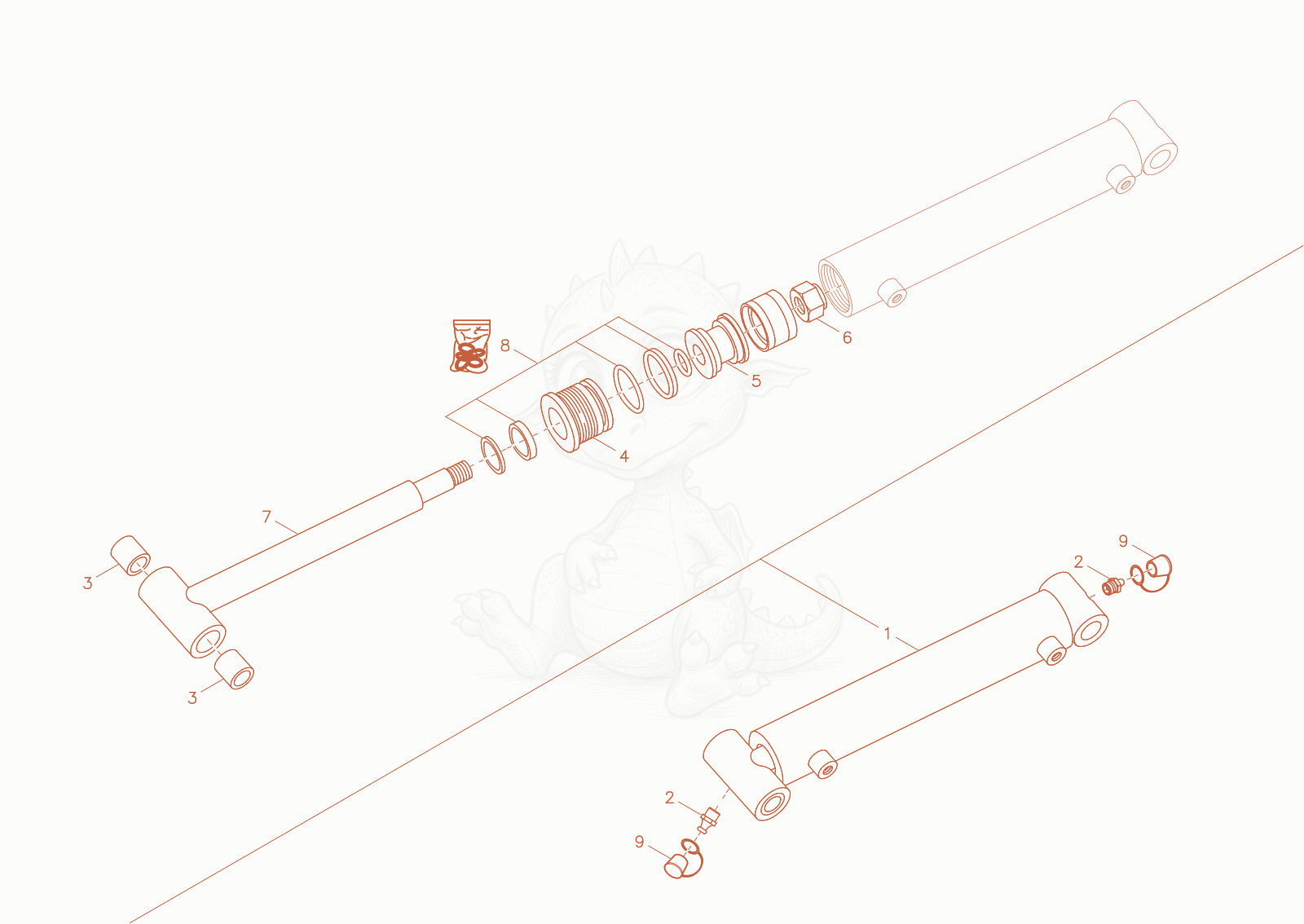

DT05E CYLINDER Diagram

Exploded parts diagram of the CYLINDER of a Wacker Neuson DT05E, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000272668
$807.04
Cylinder 1000272668×2
21000015476Not stocked
grease nipple×4
31000279127
$10.79
BUSHING - 1000279127×4
41000279727
$294.05
BUSHING - 1000279727×2
51000279125
$235.51
PISTON - 1000279125×2
61000272834
$4.51
HEXAGON NUT - 1000272834×2
71000280493
$535.85
Pistonrod 1000280493×2
81000272669
$58.98
cylinder seal kit - 1000272669×2
91000282746
$0.70
PROTECTION CAP - 1000282746×2
