DT05e

DT05E STEP PLATE Diagram

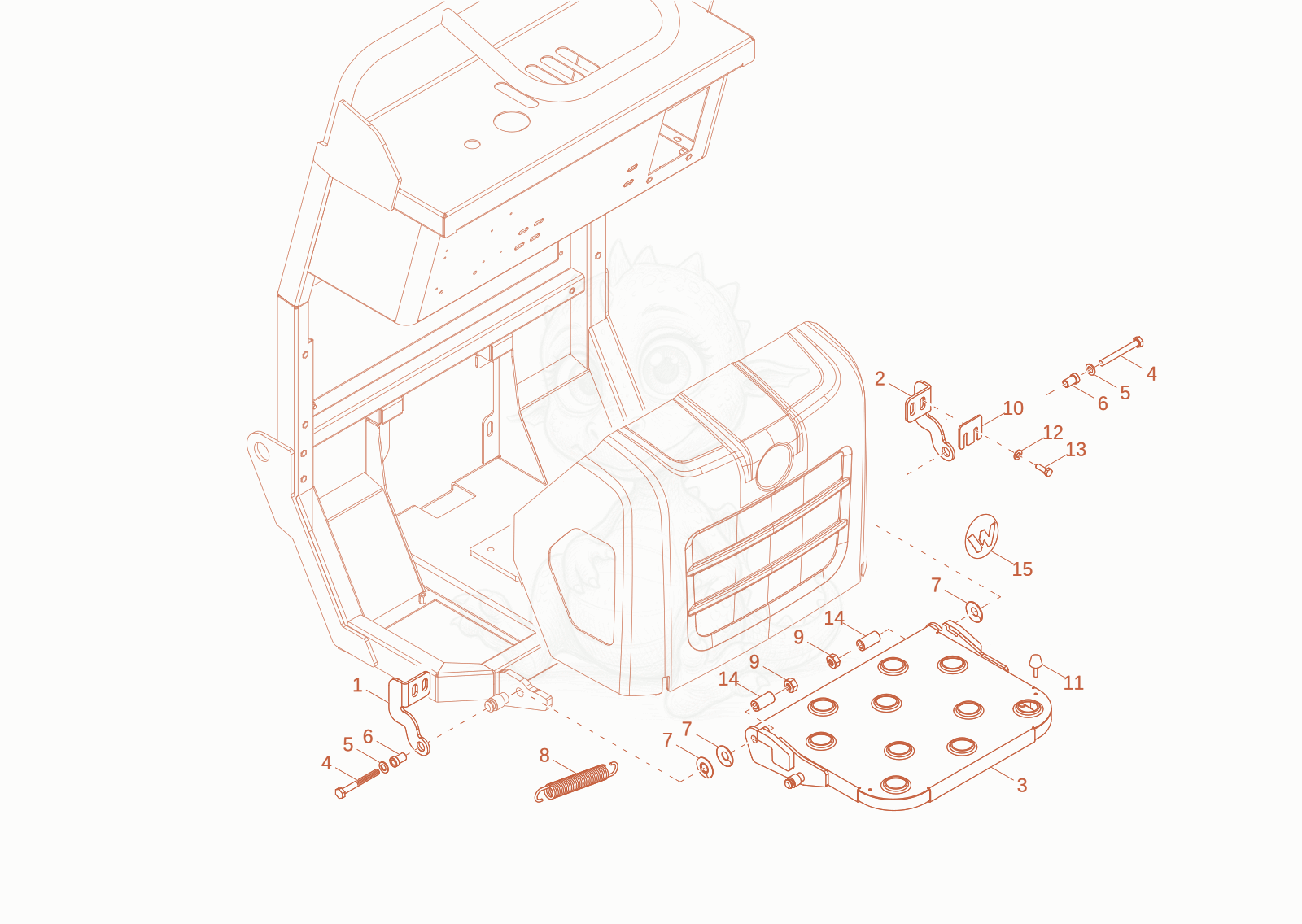

Exploded parts diagram of the STEP PLATE of a Wacker Neuson DT05E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000515190Not stocked
    holder×1
  • 21000321841Not stocked
    holder×1
  • 31000270725
    $196.00
    Stepplate 1000270725×1
  • 41000085357
    $1.08
    hex screw - 1000085357×2
  • 51000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×2
  • 61000270676
    $28.68
    distance piece - 1000270676×2
  • 71000270677
    $4.95
    DISC SPRING - 1000270677×3
  • 81000272176
    $9.56
    tension spring - 1000272176×1
  • 91000269291
    $1.55
    HEXAGON NUT - 1000269291×2
  • 101000321843Not stocked
    distance piece×6
  • 111000283392
    $22.35
    Damping - 1000283392×2
  • 121000271022
    $1.90
    tension disc - 1000271022×4
  • 131000015343Not stocked
    hex screw×4
  • 141000275865
    $18.65
    distance piece - 1000275865×2
  • 151000189891
    $65.27
    badge - 1000189891×1
