DT05e

DT05E TILT CYLINDER OPERATION Diagram

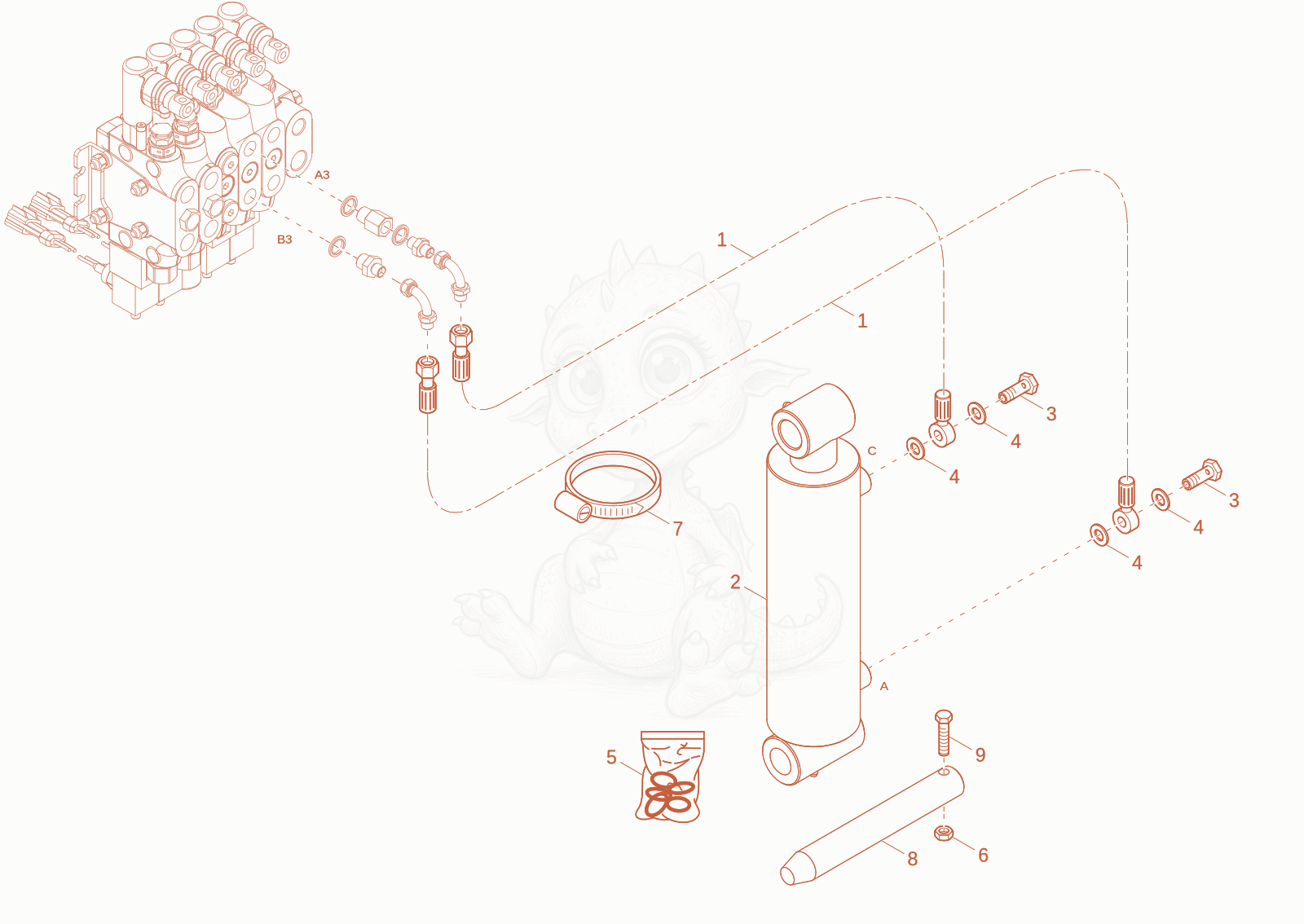

Exploded parts diagram of the TILT CYLINDER OPERATION of a Wacker Neuson DT05E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000270831
    $96.23
    SLHYDR 2SC 6,0RN1/40 DK1/40 L1700 S0 - 1000270831×2
  • 21000515187Not stocked
    tilt ram×1
  • 31000270650
    $11.63
    banjo bolt - 1000270650×2
  • 41000273277
    $3.59
    WASHER - 1000273277×4
  • 51000515242Not stocked
    seal kit×1
  • 61000269276
    $1.24
    HEXAGON NUT - 1000269276×1
  • 71000272140
    $2.48
    CLAMP - 1000272140×1
  • 81000282374
    $38.91
    PIN - 1000282374×1
  • 91000085310
    $0.78
    hex screw - 1000085310×1
