DV60-2

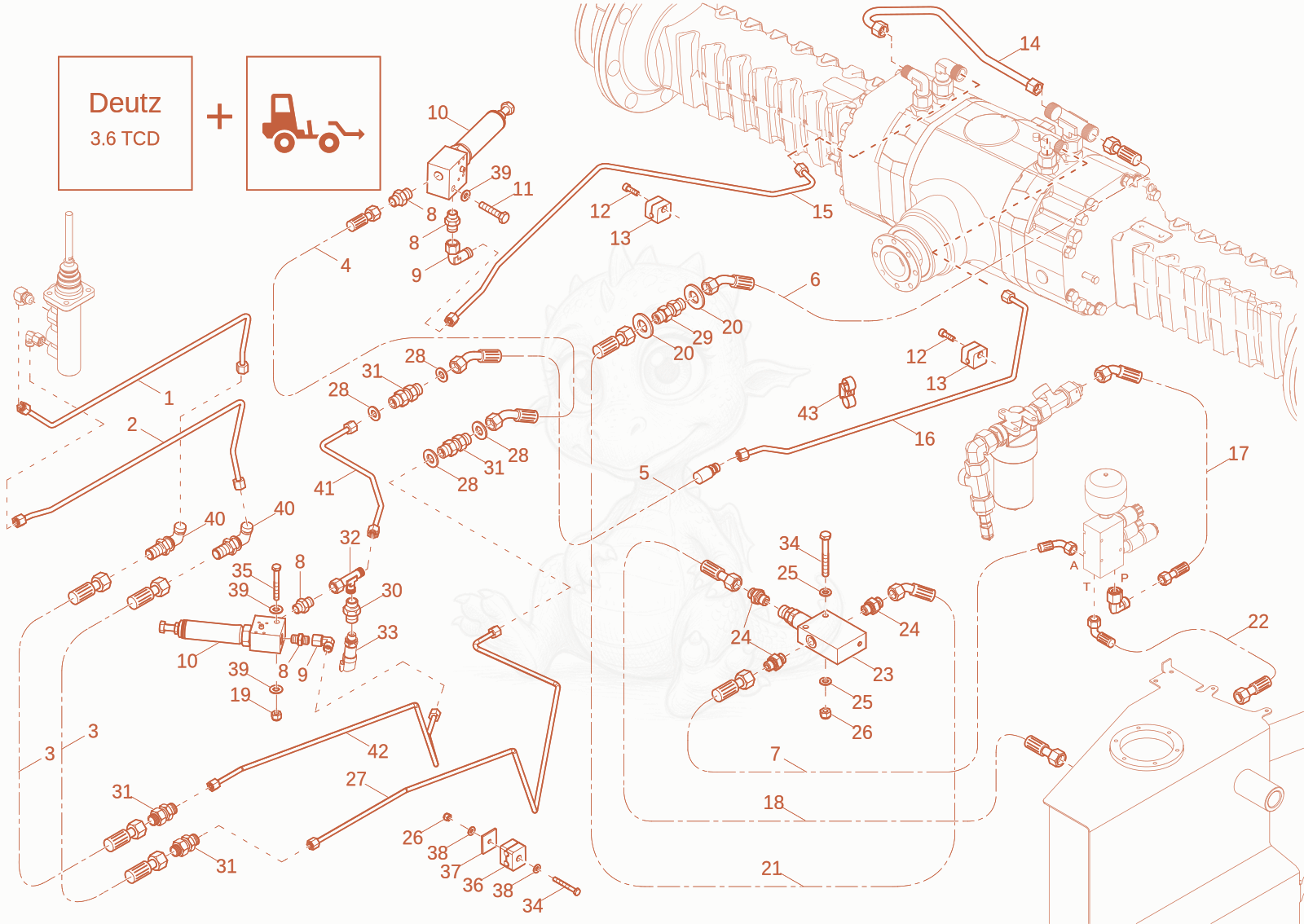

DV60-2 BRAKE INSTALLTION (option) Diagram

Exploded parts diagram of the BRAKE INSTALLTION (option) of a Wacker Neuson DV60-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000457838Not stocked
    pipe line×1
  • 21000457839Not stocked
    pipe line×1
  • 31000398832Not stocked
    Hose×2
  • 41000480606Not stocked
    Hose×1
  • 51000554375Not stocked
    Hose×1
  • 61000540597Not stocked
    Hose×1
  • 71000481770
    $20.97
    SLHYDR 2SC 10 PN12 0 PN12 45 L590,0 0 - 1000481770×1
  • 81000015488Not stocked
    screw joint×4
  • 91000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 101000473835Not stocked
    pressure reduction valve×2
  • 111000015344Not stocked
    hex screw×1
  • 121000085456
    $0.05
    allen screw M6x20-8.8 A2C-DIN912 - 1000085456×2
  • 131000083324
    $1.58
    clamp body - 1000083324×2
  • 141000328958Not stocked
    brake line×1
  • 151000480125Not stocked
    brake line×1
  • 161000480126Not stocked
    brake line×1
  • 171000506390
    $16.60
    SLHYDR 1SC 6,0PN8 45 PN8 0 L460,0 0 - 1000506390×1
  • 181000458519Not stocked
    Hose×1
  • 191000357534Not stocked
    hexagon nut×1
  • 201000082620
    $0.08
    washer 23 - 1000082620×2
  • 211000427377
    $19.03
    SLHYDR 2SC 10 PN12 0 PN12 45 L900,0 - 1000427377×1
  • 221000065303Not stocked
    Hose×1
  • 231000453162
    $248.58
    valve - 1000453162×1
  • 241000085128
    $3.13
    GE12LR1/4EDOMDA3C - 1000085128×3
  • 251000015430Not stocked
    u-washer×4
  • 261000357533Not stocked
    hexagon nut×3
  • 271000476882
    $29.38
    TVA START TOP DOWN - 1000476882×1
  • 281000019126Not stocked
    u-washer×4
  • 291000021041Not stocked
    screw joint×1
  • 301000235328
    $56.65
    Screw Joint - 1000235328×1
  • 311000085075
    $4.46
    SV08-L - 1000085075×4
  • 321000015515Not stocked
    screw joint×1
  • 331000375451
    $229.83
    sensor - 1000375451×1
  • 341000082238
    $0.73
    HEX SCREW - 1000082238×3
  • 351000022334Not stocked
    hex screw×1
  • 361000168708
    $1.99
    clamp body - 1000168708×1
  • 371000015628Not stocked
    cover plate×1
  • 381000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×2
  • 391000015448Not stocked
    washer×3
  • 401000085047
    $9.99
    WSV08LOMDA3C - 1000085047×2
  • 411000460629Not stocked
    brake line×1
  • 421000476885Not stocked
    brake line×1
  • 431000371366Not stocked
    cable strap×3
