DV60-2

DV60-2 device ASC (Option) Diagram

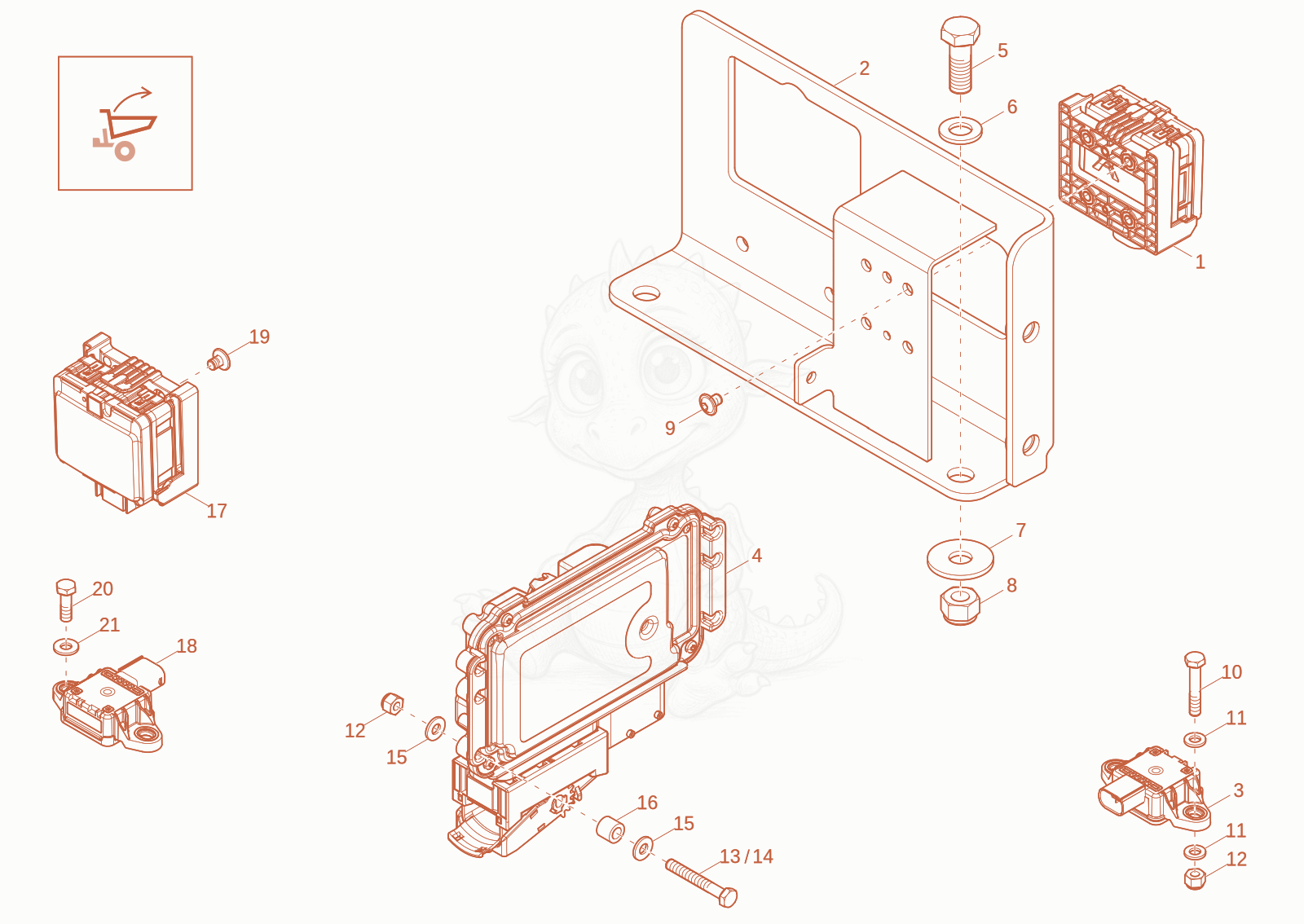

Exploded parts diagram of the device ASC (Option) of a Wacker Neuson DV60-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000449563
    $844.03
    sensor - 1000449563×1
  • 21000510265Not stocked
    support×1
  • 31000449562
    $195.22
    sensor - 1000449562×1
  • 41000513529
    $870.75
    Control unit RC 12-10/30 - 1000513529×1
  • 51000085404
    $0.93
    hex screw - 1000085404×3
  • 61000049219Not stocked
    washer×3
  • 71000085613
    $0.10
    washer - 1000085613×3
  • 81000357536Not stocked
    hexagon nut×3
  • 91000377507Not stocked
    flat head screw×4
  • 101000015340Not stocked
    hex screw×2
  • 111000015430Not stocked
    u-washer×4
  • 121000357533Not stocked
    hexagon nut×6
  • 131000085386
    $0.72
    hex screw - 1000085386×4
  • 141000015341Not stocked
    hex screw×4
  • 151000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×8
  • 161000464147
    $2.31
    bushing - 1000464147×4
  • 171000513621
    $844.03
    sensor - 1000513621×1
  • 181000449562
    $195.22
    sensor - 1000449562×1
  • 191000377507Not stocked
    flat head screw×4
  • 201000018400Not stocked
    hex screw×2
  • 211000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×2
